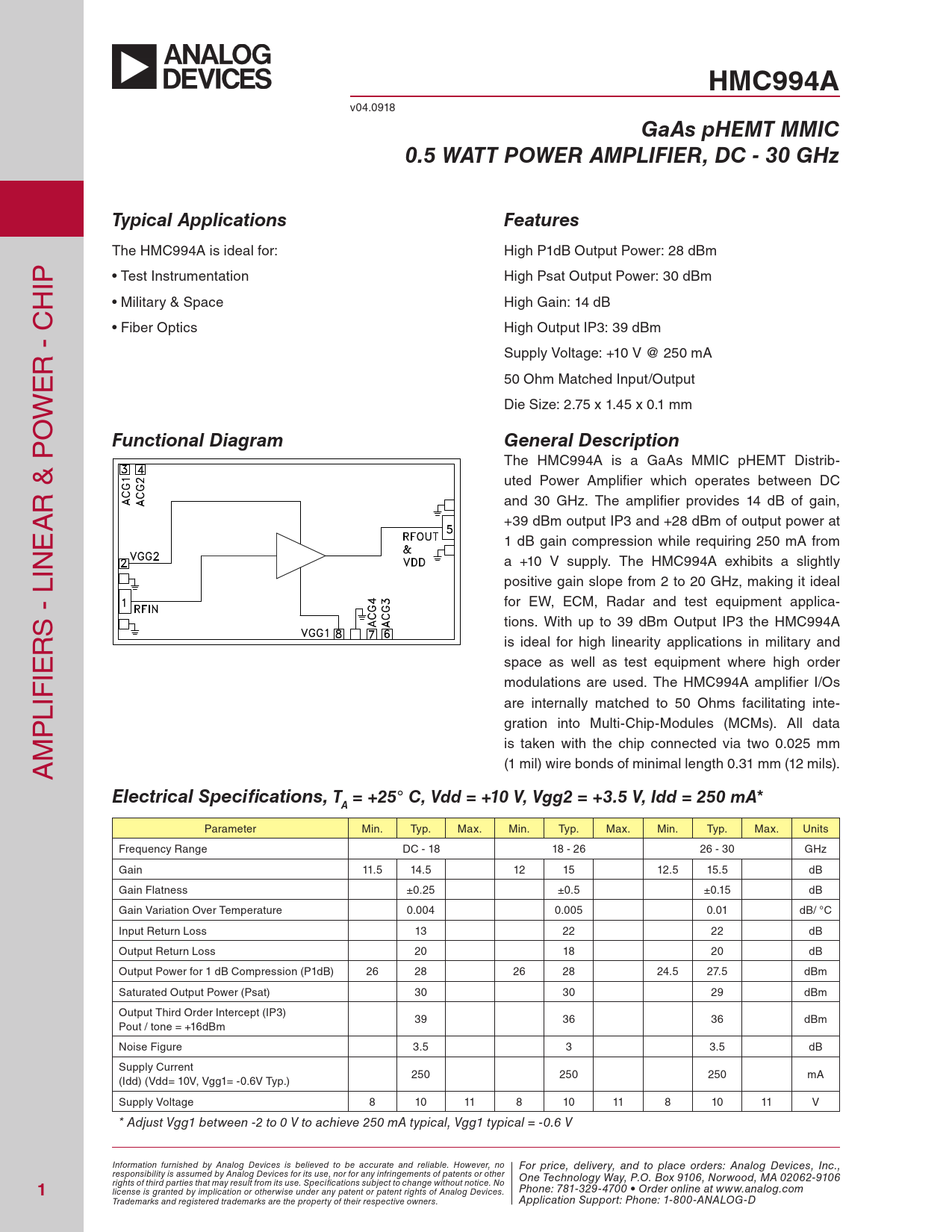

HMC994A
v04.0918
GaAs pHEMT MMIC 0.5 WATT POWER AMPLIFIER, DC - 30 GHz Typical Applications Features
The HMC994A is ideal for: High P1dB Output Power: 28 dBm IP • Test Instrumentation High Psat Output Power: 30 dBm H • Military & Space High Gain: 14 dB • Fiber Optics High Output IP3: 39 dBm R - C Supply Voltage: +10 V @ 250 mA E 50 Ohm Matched Input/Output W Die Size: 2.75 x 1.45 x 0.1 mm O
Functional Diagram General Description
The HMC994A is a GaAs MMIC pHEMT Distrib- uted Power Amplifier which operates between DC R & P and 30 GHz. The amplifier provides 14 dB of gain, A +39 dBm output IP3 and +28 dBm of output power at E 1 dB gain compression while requiring 250 mA from IN a +10 V supply. The HMC994A exhibits a slightly positive gain slope from 2 to 20 GHz, making it ideal for EW, ECM, Radar and test equipment applica- S - L tions. With up to 39 dBm Output IP3 the HMC994A R is ideal for high linearity applications in military and IE space as well as test equipment where high order modulations are used. The HMC994A amplifier I/Os LIF are internal y matched to 50 Ohms facilitating inte- P gration into Multi-Chip-Modules (MCMs). All data M is taken with the chip connected via two 0.025 mm A (1 mil) wire bonds of minimal length 0.31 mm (12 mils).
Electrical Specifications, T = +25° C, Vdd = +10 V, Vgg2 = +3.5 V, Idd = 250 mA* A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range DC - 18 18 - 26 26 - 30 GHz Gain 11.5 14.5 12 15 12.5 15.5 dB Gain Flatness ±0.25 ±0.5 ±0.15 dB Gain Variation Over Temperature 0.004 0.005 0.01 dB/ °C Input Return Loss 13 22 22 dB Output Return Loss 20 18 20 dB Output Power for 1 dB Compression (P1dB) 26 28 26 28 24.5 27.5 dBm Saturated Output Power (Psat) 30 30 29 dBm Output Third Order Intercept (IP3) 39 36 36 dBm Pout / tone = +16dBm Noise Figure 3.5 3 3.5 dB Supply Current 250 250 250 mA (Idd) (Vdd= 10V, Vgg1= -0.6V Typ.) Supply Voltage 8 10 11 8 10 11 8 10 11 V * Adjust Vgg1 between -2 to 0 V to achieve 250 mA typical, Vgg1 typical = -0.6 V Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
