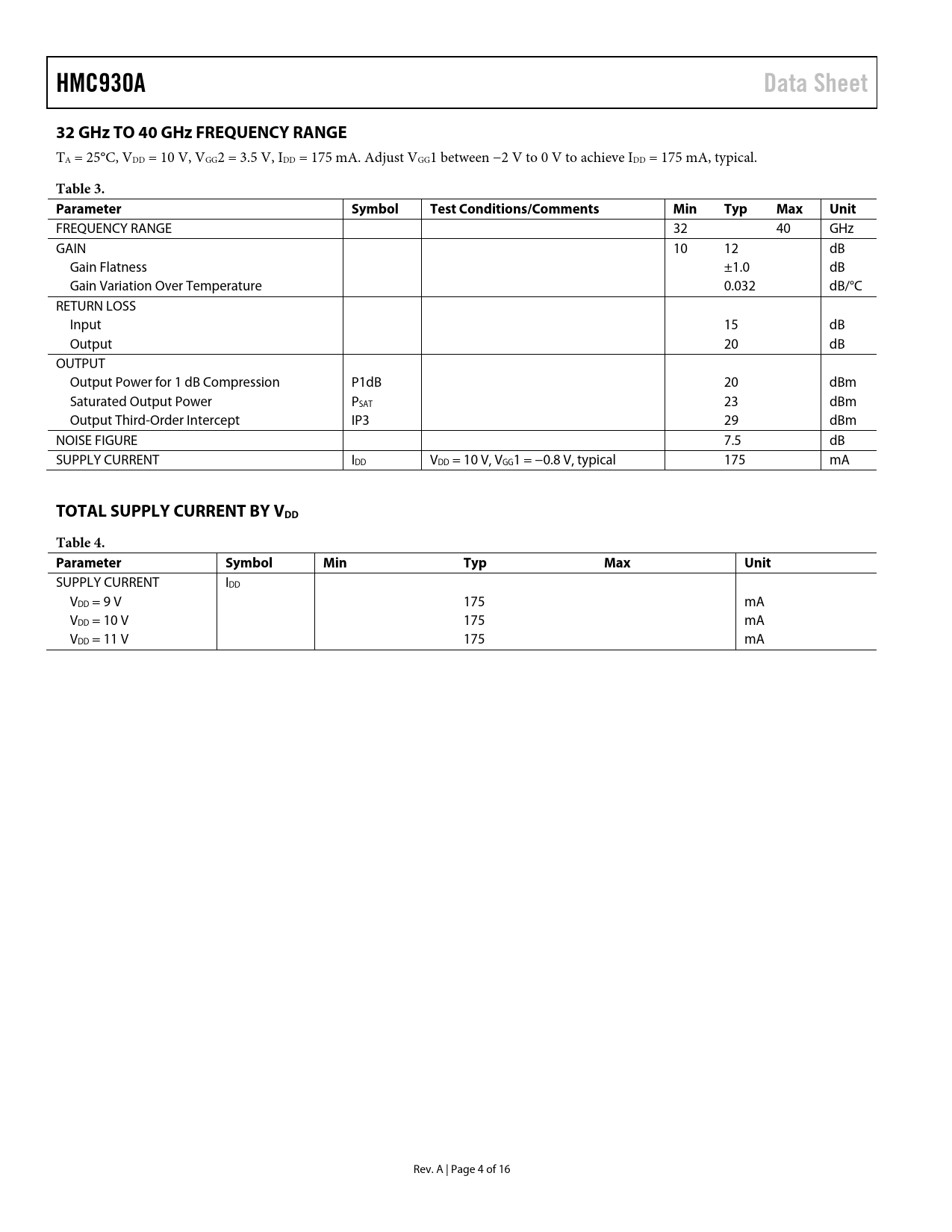

HMC930A Data Sheet 32 GHz TO 40 GHz FREQUENCY RANGE
TA = 25°C, VDD = 10 V, VGG2 = 3.5 V, IDD = 175 mA. Adjust VGG1 between −2 V to 0 V to achieve IDD = 175 mA, typical.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 32 40 GHz GAIN 10 12 dB Gain Flatness ±1.0 dB Gain Variation Over Temperature 0.032 dB/°C RETURN LOSS Input 15 dB Output 20 dB OUTPUT Output Power for 1 dB Compression P1dB 20 dBm Saturated Output Power PSAT 23 dBm Output Third-Order Intercept IP3 29 dBm NOISE FIGURE 7.5 dB SUPPLY CURRENT IDD VDD = 10 V, VGG1 = −0.8 V, typical 175 mA
TOTAL SUPPLY CURRENT BY VDD Table 4. Parameter Symbol Min Typ Max Unit
SUPPLY CURRENT IDD VDD = 9 V 175 mA VDD = 10 V 175 mA VDD = 11 V 175 mA Rev. A | Page 4 of 16 Document Outline Features Applications Functional Block Diagram General Description Revision History Electrical Specifications DC to 12 GHz Frequency Range 12 GHz to 32 GHz Frequency Range 32 GHz to 40 GHz Frequency Range Total Supply Current by VDD Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Biasing Procedures Mounting and Bonding Techniques for Millimeterwave GaAs MMICs Handling Precautions Mounting Wire Bonding Outline Dimensions Die Packaging Information Ordering Guide
