Nexperia PUSB3BB2DF Extremely low clamping low capacitance ESD protection
001aaa630 120 IPP 100 % I 100 % I PP PP; 8 µs 90 % (%) 80 e-t 50 % IPP; 20 µs 40 10 % 0 t tr = 0.6 ns to 1 ns 0 10 20 30 40 t (µs) 30 ns 60 ns 001aaa631

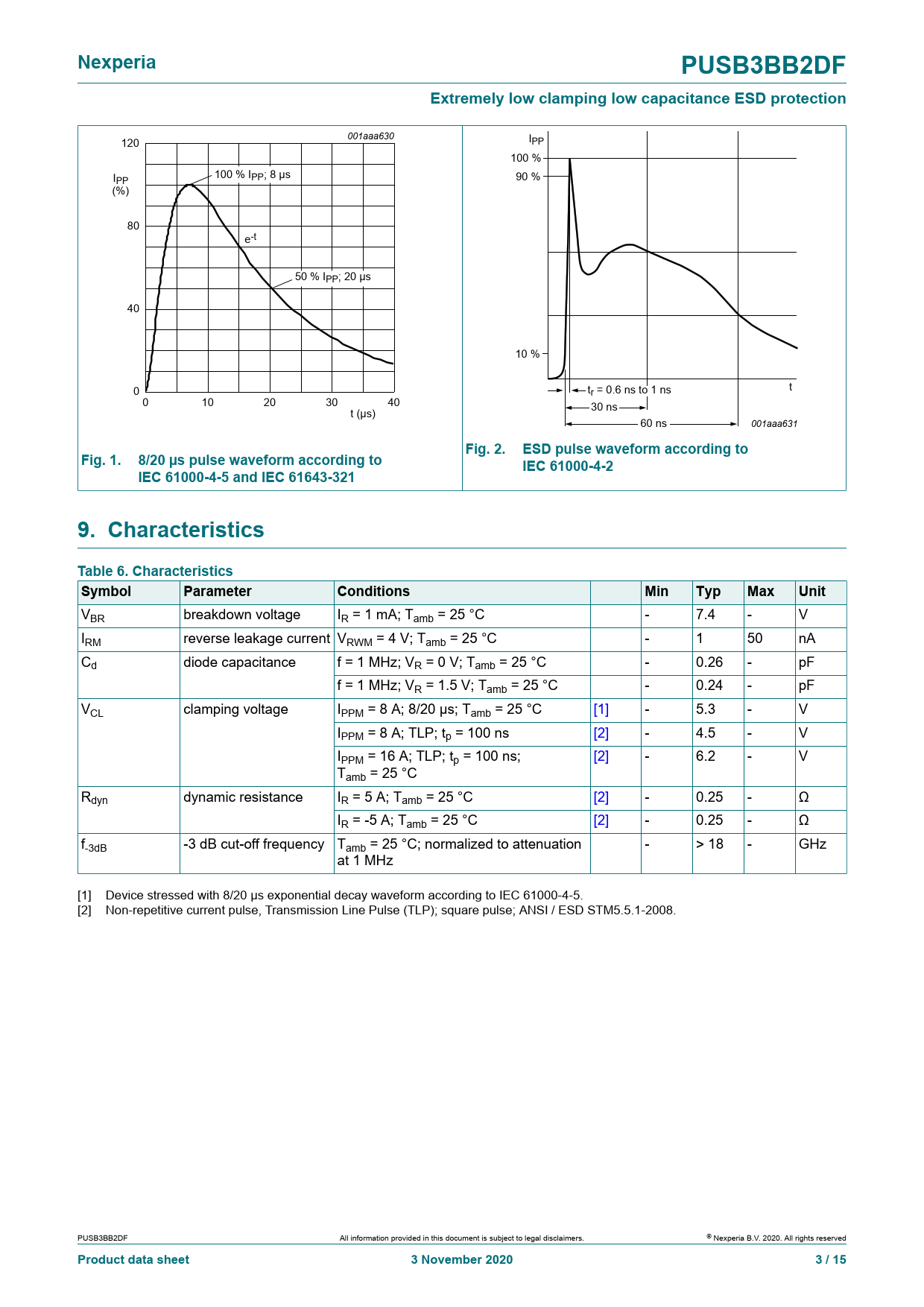

Fig. 2. ESD pulse waveform according to Fig. 1. 8/20 µs pulse waveform according to IEC 61000-4-2 IEC 61000-4-5 and IEC 61643-321 9. Characteristics Table 6. Characteristics Symbol Parameter Conditions Min Typ Max Unit
VBR breakdown voltage IR = 1 mA; Tamb = 25 °C - 7.4 - V IRM reverse leakage current VRWM = 4 V; Tamb = 25 °C - 1 50 nA Cd diode capacitance f = 1 MHz; VR = 0 V; Tamb = 25 °C - 0.26 - pF f = 1 MHz; VR = 1.5 V; Tamb = 25 °C - 0.24 - pF VCL clamping voltage IPPM = 8 A; 8/20 µs; Tamb = 25 °C [1] - 5.3 - V IPPM = 8 A; TLP; tp = 100 ns [2] - 4.5 - V IPPM = 16 A; TLP; tp = 100 ns; [2] - 6.2 - V Tamb = 25 °C Rdyn dynamic resistance IR = 5 A; Tamb = 25 °C [2] - 0.25 - Ω IR = -5 A; Tamb = 25 °C [2] - 0.25 - Ω f-3dB -3 dB cut-off frequency Tamb = 25 °C; normalized to attenuation - > 18 - GHz at 1 MHz [1] Device stressed with 8/20 μs exponential decay waveform according to IEC 61000-4-5. [2] Non-repetitive current pulse, Transmission Line Pulse (TLP); square pulse; ANSI / ESD STM5.5.1-2008. PUSB3BB2DF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. All rights reserved
Product data sheet 3 November 2020 3 / 15
