Datasheet H11AV1M, H11AV1AM, H11AV2M, H11AV2AM (Fairchild) - 8
| Hersteller | Fairchild |
| Beschreibung | Phototransistor Optocouplers |
| Seiten / Seite | 10 / 8 — H11A. Ordering Information. V1M,. Order Entry Identifier. Option. … |
| Dateiformat / Größe | PDF / 251 Kb |
| Dokumentensprache | Englisch |

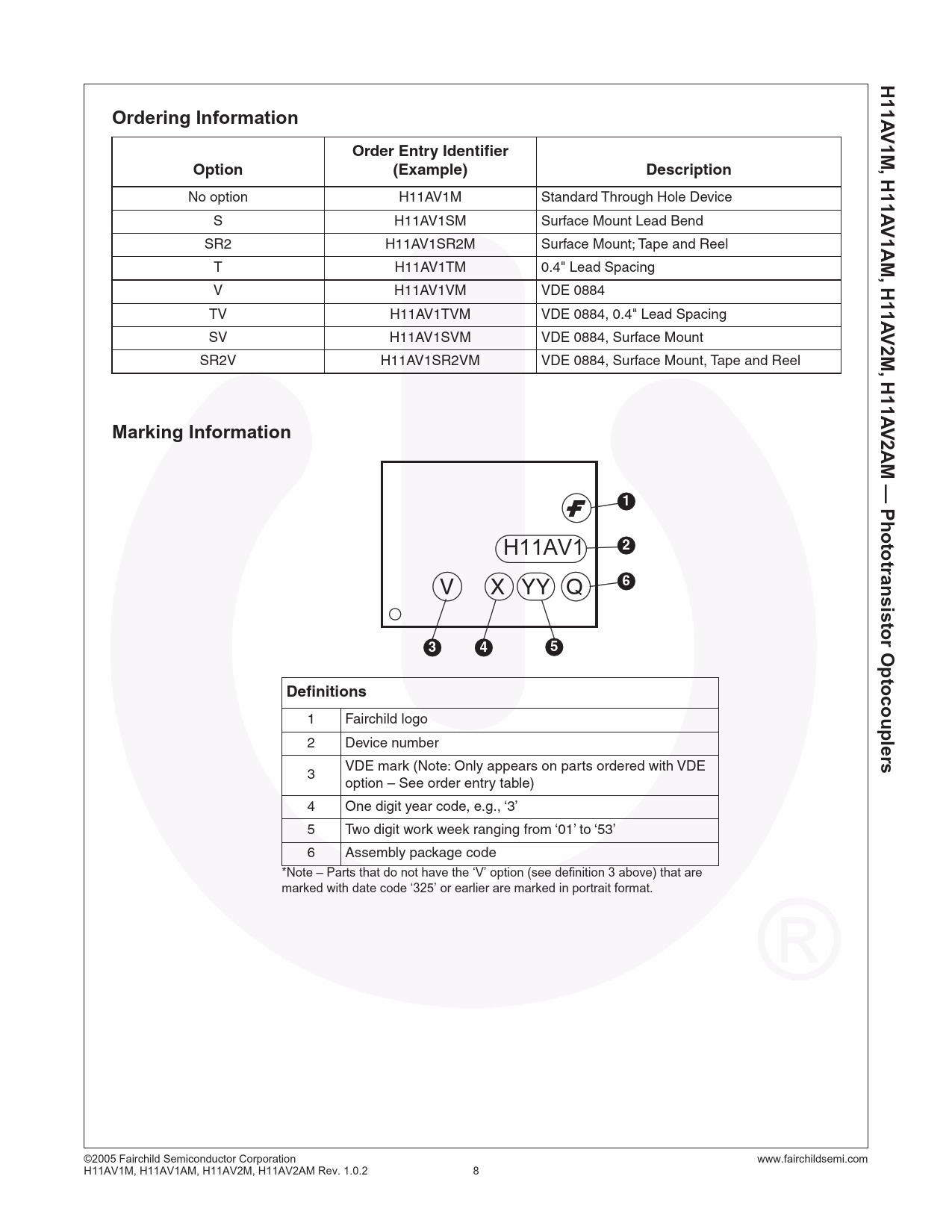

H11A. Ordering Information. V1M,. Order Entry Identifier. Option. (Example). Description. V1AM,. V2M,. V2AM — Phototransistor Optocoupler
Modelllinie für dieses Datenblatt
Textversion des Dokuments
H11A Ordering Information V1M, Order Entry Identifier Option (Example) Description H11A
No option H11AV1M Standard Through Hole Device S H11AV1SM Surface Mount Lead Bend
V1AM,
SR2 H11AV1SR2M Surface Mount; Tape and Reel T H11AV1TM 0.4" Lead Spacing
H11A
V H11AV1VM VDE 0884 TV H11AV1TVM VDE 0884, 0.4" Lead Spacing
V2M,
SV H11AV1SVM VDE 0884, Surface Mount SR2V H11AV1SR2VM VDE 0884, Surface Mount, Tape and Reel
H11A V2AM — Phototransistor Optocoupler Marking Information 1
H11AV1
2 6
V X YY Q
3 4 5 Definitions
1 Fairchild logo 2 Device number
s
VDE mark (Note: Only appears on parts ordered with VDE 3 option – See order entry table) 4 One digit year code, e.g., ‘3’ 5 Two digit work week ranging from ‘01’ to ‘53’ 6 Assembly package code *Note – Parts that do not have the ‘V’ option (see definition 3 above) that are marked with date code ‘325’ or earlier are marked in portrait format. ©2005 Fairchild Semiconductor Corporation www.fairchildsemi.com H11AV1M, H11AV1AM, H11AV2M, H11AV2AM Rev. 1.0.2 8
