Datasheet H11AV1M, H11AV1AM, H11AV2M, H11AV2AM (Fairchild)
| Hersteller | Fairchild |
| Beschreibung | Phototransistor Optocouplers |
| Seiten / Seite | 10 / 1 — H11A. V1M,. H11AV1M, H11AV1AM, H11AV2M, H11AV2AM. V1AM,. Phototransistor … |
| Dateiformat / Größe | PDF / 251 Kb |
| Dokumentensprache | Englisch |

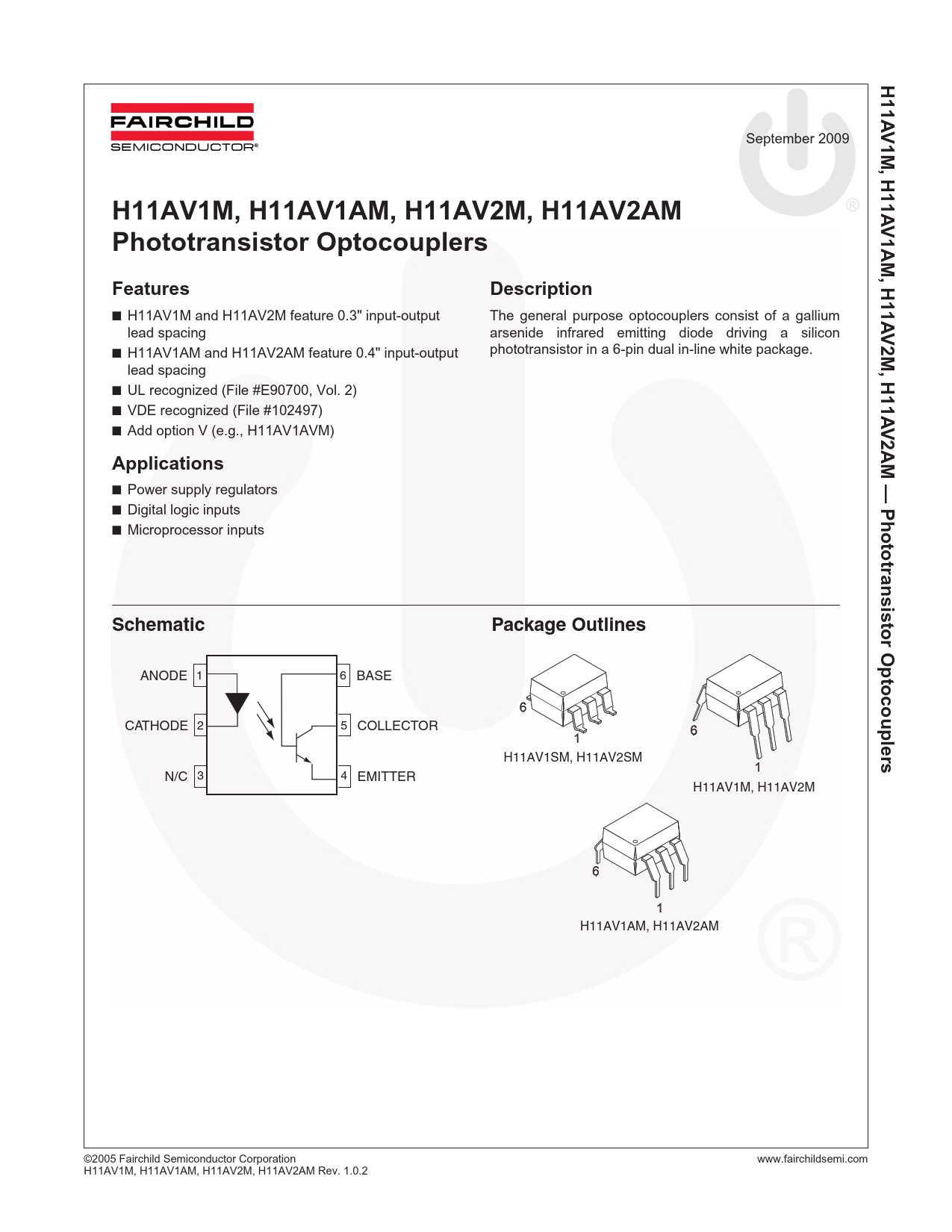

H11A. V1M,. H11AV1M, H11AV1AM, H11AV2M, H11AV2AM. V1AM,. Phototransistor Optocouplers. Features. Description. V2M,
Modelllinie für dieses Datenblatt
Textversion des Dokuments
H11A V1M,
September 2009
H11A H11AV1M, H11AV1AM, H11AV2M, H11AV2AM V1AM, Phototransistor Optocouplers H11A Features Description
■ H11AV1M and H11AV2M feature 0.3" input-output The general purpose optocouplers consist of a gallium
V2M,
lead spacing arsenide infrared emitting diode driving a silicon ■ H11AV1AM and H11AV2AM feature 0.4" input-output phototransistor in a 6-pin dual in-line white package. lead spacing
H11A
■ UL recognized (File #E90700, Vol. 2) ■ VDE recognized (File #102497)
V2AM — Phototransistor Optocoupler
■ Add option V (e.g., H11AV1AVM)
Applications
■ Power supply regulators ■ Digital logic inputs ■ Microprocessor inputs
Schematic Package Outlines
ANODE 1 6 BASE CATHODE 2 5 COLLECTOR H11AV1SM, H11AV2SM
s
N/C 3 4 EMITTER H11AV1M, H11AV2M H11AV1AM, H11AV2AM ©2005 Fairchild Semiconductor Corporation www.fairchildsemi.com H11AV1M, H11AV1AM, H11AV2M, H11AV2AM Rev. 1.0.2
