Datasheet MMDT3906 (Diodes) - 6
| Hersteller | Diodes |
| Beschreibung | 40V Dual PNP Small Signal Transistor in SOT363 |
| Seiten / Seite | 7 / 6 — MMDT3906. Package Outline Dimensions. SOT363. Dim Min Max. Typ. All … |
| Dateiformat / Größe | PDF / 482 Kb |
| Dokumentensprache | Englisch |
MMDT3906. Package Outline Dimensions. SOT363. Dim Min Max. Typ. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

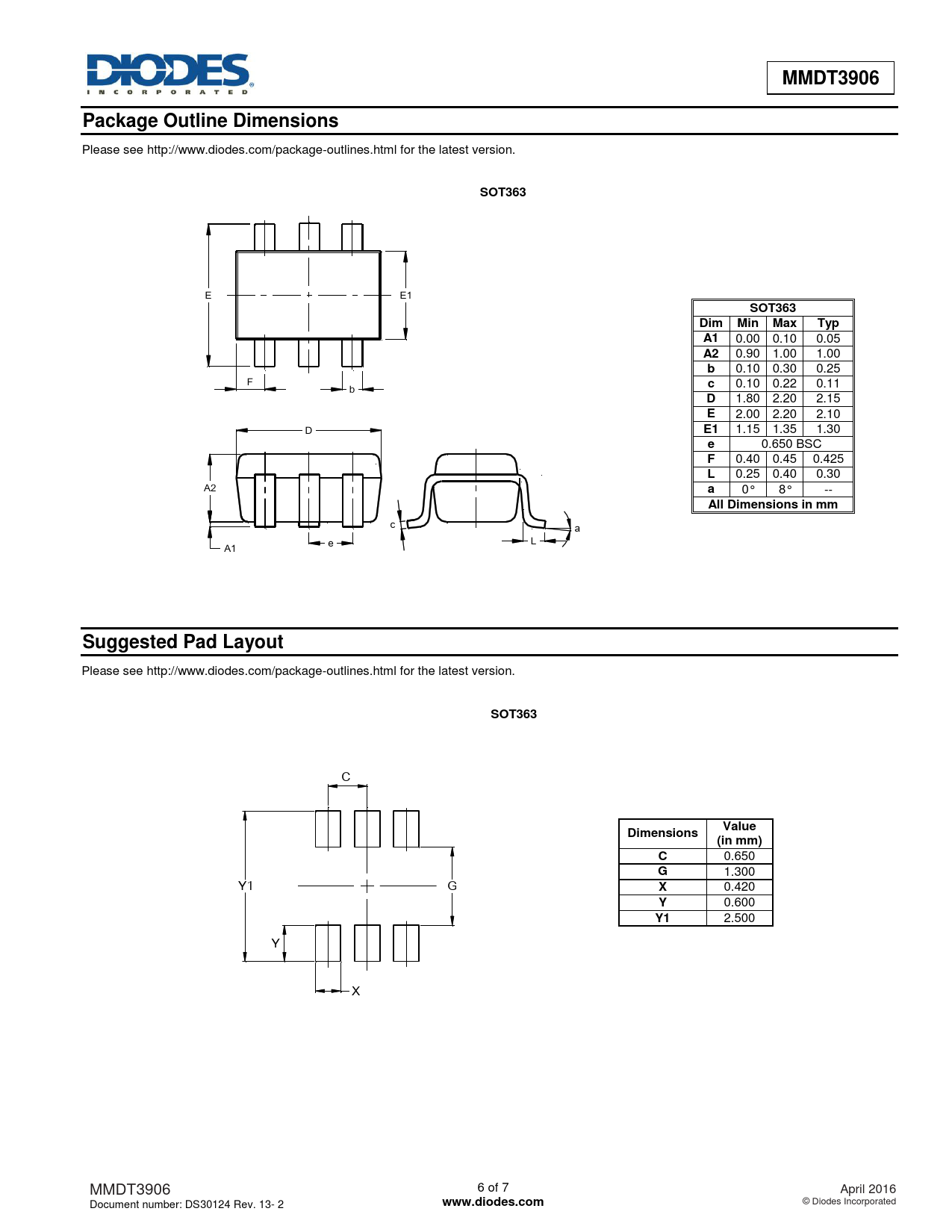

MMDT3906 Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363
E E1
SOT363 Dim Min Max Typ A1
0.00 0.10 0.05
A2
0.90 1.00 1.00
b
0.10 0.30 0.25 F
c
0.10 0.22 0.11 b
D
1.80 2.20 2.15
E
2.00 2.20 2.10 D
E1
1.15 1.35 1.30
e
0.650 BSC
F
0.40 0.45 0.425
L
0.25 0.40 0.30 A2
a
0° 8° --
All Dimensions in mm
c a e L A1
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363
C
Value Dimensions (in mm) C
0.650
G
1.300 Y1 G
X
0.420
Y
0.600
Y1
2.500 Y X MMDT3906 6 of 7 April 2016 Document number: DS30124 Rev. 13- 2
www.diodes.com
© Diodes Incorporated
