Part No. 1004795 / 1004796. 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications
Modelllinie für dieses Datenblatt
Textversion des Dokuments
DATASHEET |

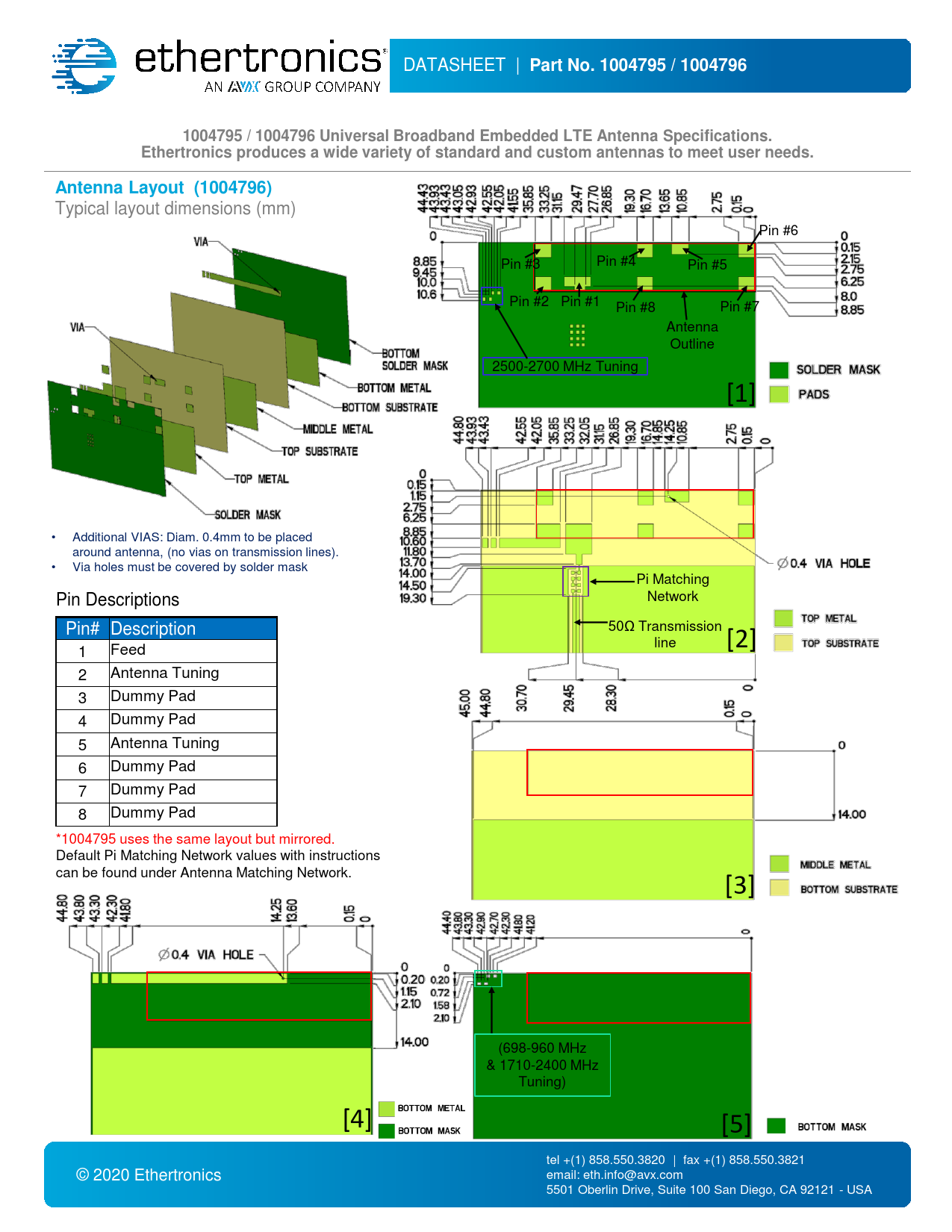

Part No. 1004795 / 1004796 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications. Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Antenna Layout (1004796)
Typical layout dimensions (mm) Pin #6 Pin #4 Pin #3 Pin #5 Pin #2 Pin #1 Pin #8 Pin #7 Antenna Outline 2500-2700 MHz Tuning [1] • Additional VIAS: Diam. 0.4mm to be placed around antenna, (no vias on transmission lines). • Via holes must be covered by solder mask Pi Matching Pin Descriptions Network Pin# Description 50Ω Transmission line [2] 1 Feed 2 Antenna Tuning 3 Dummy Pad 4 Dummy Pad 5 Antenna Tuning 6 Dummy Pad 7 Dummy Pad 8 Dummy Pad *1004795 uses the same layout but mirrored. Default Pi Matching Network values with instructions can be found under Antenna Matching Network. [3] (698-960 MHz & 1710-2400 MHz Tuning) [4] [5] tel +(1) 858.550.3820 | fax +(1) 858.550.3821 © 2020 Ethertronics email: eth.info@avx.com 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
