DATASHEET. 600 – 960 MHz / 1710 - 2690 MHz. High Performance LTE in Small form factor. Universal Broadband FR4
Modelllinie für dieses Datenblatt
Textversion des Dokuments

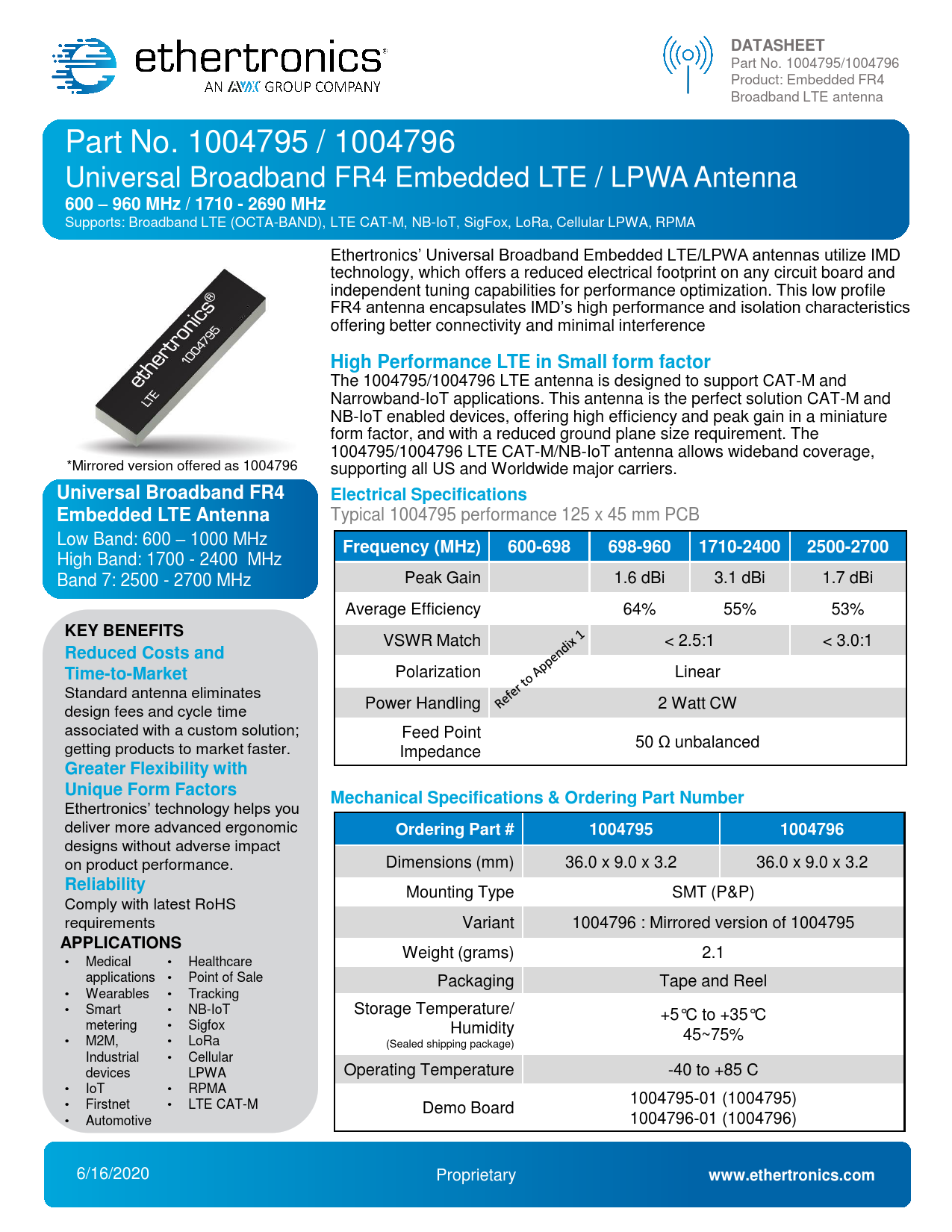

DATASHEET
Part No. 1004795/1004796 Product: Embedded FR4 Broadband LTE antenna Part No. 1004795 / 1004796 Universal Broadband FR4 Embedded LTE / LPWA Antenna
600 – 960 MHz / 1710 - 2690 MHz
Supports: Broadband LTE (OCTA-BAND), LTE CAT-M, NB-IoT, SigFox, LoRa, Cellular LPWA, RPMA Ethertronics’ Universal Broadband Embedded LTE/LPWA antennas utilize IMD technology, which offers a reduced electrical footprint on any circuit board and independent tuning capabilities for performance optimization. This low profile FR4 antenna encapsulates IMD’s high performance and isolation characteristics offering better connectivity and minimal interference
High Performance LTE in Small form factor
The 1004795/1004796 LTE antenna is designed to support CAT-M and Narrowband-IoT applications. This antenna is the perfect solution CAT-M and NB-IoT enabled devices, offering high efficiency and peak gain in a miniature form factor, and with a reduced ground plane size requirement. The 1004795/1004796 LTE CAT-M/NB-IoT antenna allows wideband coverage, *Mirrored version offered as 1004796 supporting all US and Worldwide major carriers.
Universal Broadband FR4 Electrical Specifications Embedded LTE Antenna
Typical 1004795 performance 125 x 45 mm PCB Low Band: 600 – 1000 MHz
Frequency (MHz) 600-698 698-960 1710-2400 2500-2700
High Band: 1700 - 2400 MHz Band 7: 2500 - 2700 MHz Peak Gain 1.6 dBi 3.1 dBi 1.7 dBi Average Efficiency 64% 55% 53%
KEY BENEFITS
VSWR Match < 2.5:1 < 3.0:1
Reduced Costs and Time-to-Market
Polarization Linear Standard antenna eliminates Power Handling 2 Watt CW design fees and cycle time associated with a custom solution; Feed Point getting products to market faster. 50 Ω unbalanced Impedance
Greater Flexibility with Unique Form Factors Mechanical Specifications & Ordering Part Number
Ethertronics’ technology helps you deliver more advanced ergonomic
Ordering Part # 1004795 1004796
designs without adverse impact on product performance. Dimensions (mm) 36.0 x 9.0 x 3.2 36.0 x 9.0 x 3.2
Reliability
Mounting Type SMT (P&P) Comply with latest RoHS requirements Variant 1004796 : Mirrored version of 1004795
APPLICATIONS
Weight (grams) 2.1 • Medical • Healthcare applications • Point of Sale Packaging Tape and Reel • Wearables • Tracking • Smart • NB-IoT Storage Temperature/ +5°C to +35°C metering • Sigfox Humidity • 45~75% M2M, • LoRa (Sealed shipping package) Industrial • Cellular devices LPWA Operating Temperature -40 to +85 C • IoT • RPMA • Firstnet • LTE CAT-M 1004795-01 (1004795) Demo Board • Automotive 1004796-01 (1004796) 6/16/2020 Proprietary
www.ethertronics.com
Part No. 1004795/1004796 Product: Embedded FR4 Broadband LTE antenna Part No. 1004795 / 1004796 Universal Broadband FR4 Embedded LTE / LPWA Antenna
600 – 960 MHz / 1710 - 2690 MHz
Supports: Broadband LTE (OCTA-BAND), LTE CAT-M, NB-IoT, SigFox, LoRa, Cellular LPWA, RPMA Ethertronics’ Universal Broadband Embedded LTE/LPWA antennas utilize IMD technology, which offers a reduced electrical footprint on any circuit board and independent tuning capabilities for performance optimization. This low profile FR4 antenna encapsulates IMD’s high performance and isolation characteristics offering better connectivity and minimal interference
High Performance LTE in Small form factor
The 1004795/1004796 LTE antenna is designed to support CAT-M and Narrowband-IoT applications. This antenna is the perfect solution CAT-M and NB-IoT enabled devices, offering high efficiency and peak gain in a miniature form factor, and with a reduced ground plane size requirement. The 1004795/1004796 LTE CAT-M/NB-IoT antenna allows wideband coverage, *Mirrored version offered as 1004796 supporting all US and Worldwide major carriers.
Universal Broadband FR4 Electrical Specifications Embedded LTE Antenna
Typical 1004795 performance 125 x 45 mm PCB Low Band: 600 – 1000 MHz
Frequency (MHz) 600-698 698-960 1710-2400 2500-2700
High Band: 1700 - 2400 MHz Band 7: 2500 - 2700 MHz Peak Gain 1.6 dBi 3.1 dBi 1.7 dBi Average Efficiency 64% 55% 53%
KEY BENEFITS
VSWR Match < 2.5:1 < 3.0:1
Reduced Costs and Time-to-Market
Polarization Linear Standard antenna eliminates Power Handling 2 Watt CW design fees and cycle time associated with a custom solution; Feed Point getting products to market faster. 50 Ω unbalanced Impedance
Greater Flexibility with Unique Form Factors Mechanical Specifications & Ordering Part Number
Ethertronics’ technology helps you deliver more advanced ergonomic
Ordering Part # 1004795 1004796
designs without adverse impact on product performance. Dimensions (mm) 36.0 x 9.0 x 3.2 36.0 x 9.0 x 3.2
Reliability
Mounting Type SMT (P&P) Comply with latest RoHS requirements Variant 1004796 : Mirrored version of 1004795
APPLICATIONS
Weight (grams) 2.1 • Medical • Healthcare applications • Point of Sale Packaging Tape and Reel • Wearables • Tracking • Smart • NB-IoT Storage Temperature/ +5°C to +35°C metering • Sigfox Humidity • 45~75% M2M, • LoRa (Sealed shipping package) Industrial • Cellular devices LPWA Operating Temperature -40 to +85 C • IoT • RPMA • Firstnet • LTE CAT-M 1004795-01 (1004795) Demo Board • Automotive 1004796-01 (1004796) 6/16/2020 Proprietary
www.ethertronics.com
