Datasheet AD8017 (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | Low Cost, High Output Current, High Output Voltage Line Driver |
| Seiten / Seite | 16 / 3 — AD8017. SPECIFICATIONS (@ 25. C, VS =. 2.5 V, RL = 100. , RF = RG = 619. … |
| Revision | C |
| Dateiformat / Größe | PDF / 235 Kb |
| Dokumentensprache | Englisch |

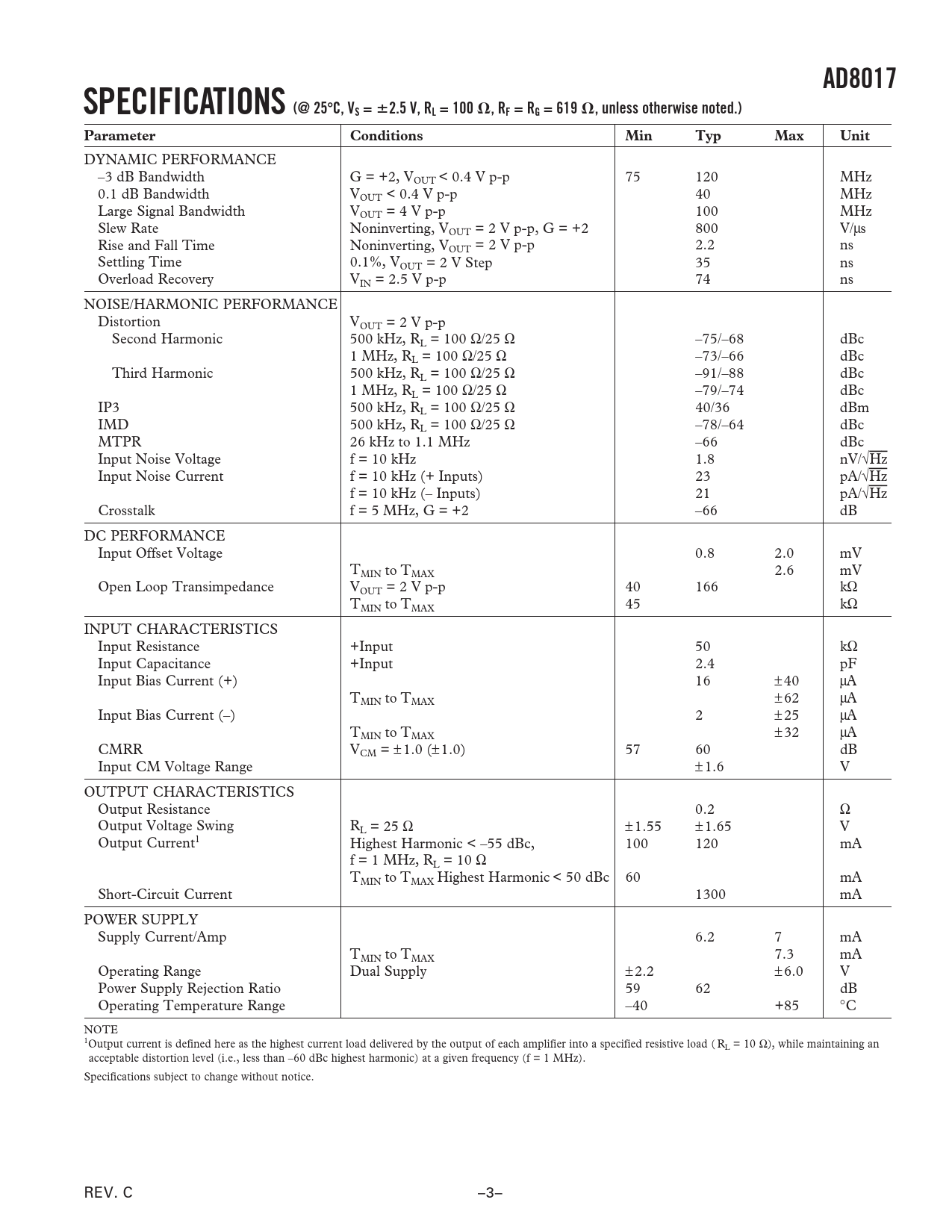

AD8017. SPECIFICATIONS (@ 25. C, VS =. 2.5 V, RL = 100. , RF = RG = 619. , unless otherwise noted.). Parameter. Conditions. Min. Typ. Max
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD8017 SPECIFICATIONS (@ 25
ⴗ
C, VS =
ⴞ
2.5 V, RL = 100
⍀
, RF = RG = 619
⍀
, unless otherwise noted.) Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Bandwidth G = +2, VOUT < 0.4 V p-p 75 120 MHz 0.1 dB Bandwidth VOUT < 0.4 V p-p 40 MHz Large Signal Bandwidth VOUT = 4 V p-p 100 MHz Slew Rate Noninverting, VOUT = 2 V p-p, G = +2 800 V/µs Rise and Fall Time Noninverting, VOUT = 2 V p-p 2.2 ns Settling Time 0.1%, VOUT = 2 V Step 35 ns Overload Recovery VIN = 2.5 V p-p 74 ns NOISE/HARMONIC PERFORMANCE Distortion VOUT = 2 V p-p Second Harmonic 500 kHz, RL = 100 Ω/25 Ω –75/–68 dBc 1 MHz, RL = 100 Ω/25 Ω –73/–66 dBc Third Harmonic 500 kHz, RL = 100 Ω/25 Ω –91/–88 dBc 1 MHz, RL = 100 Ω/25 Ω –79/–74 dBc IP3 500 kHz, RL = 100 Ω/25 Ω 40/36 dBm IMD 500 kHz, RL = 100 Ω/25 Ω –78/–64 dBc MTPR 26 kHz to 1.1 MHz –66 dBc Input Noise Voltage f = 10 kHz 1.8 nV/√Hz Input Noise Current f = 10 kHz (+ Inputs) 23 pA/√Hz f = 10 kHz (– Inputs) 21 pA/√Hz Crosstalk f = 5 MHz, G = +2 –66 dB DC PERFORMANCE Input Offset Voltage 0.8 2.0 mV TMIN to TMAX 2.6 mV Open Loop Transimpedance VOUT = 2 V p-p 40 166 kΩ TMIN to TMAX 45 kΩ INPUT CHARACTERISTICS Input Resistance +Input 50 kΩ Input Capacitance +Input 2.4 pF Input Bias Current (+) 16 ±40 µA TMIN to TMAX ±62 µA Input Bias Current (–) 2 ±25 µA TMIN to TMAX ±32 µA CMRR VCM = ± 1.0 (± 1.0) 57 60 dB Input CM Voltage Range ±1.6 V OUTPUT CHARACTERISTICS Output Resistance 0.2 Ω Output Voltage Swing RL = 25 Ω ±1.55 ±1.65 V Output Current1 Highest Harmonic < –55 dBc, 100 120 mA f = 1 MHz, RL = 10 Ω TMIN to TMAX Highest Harmonic < 50 dBc 60 mA Short-Circuit Current 1300 mA POWER SUPPLY Supply Current/Amp 6.2 7 mA TMIN to TMAX 7.3 mA Operating Range Dual Supply ±2.2 ±6.0 V Power Supply Rejection Ratio 59 62 dB Operating Temperature Range –40 +85 °C NOTE 1Output current is defined here as the highest current load delivered by the output of each amplifier into a specified resistive load ( RL = 10 Ω), while maintaining an acceptable distortion level (i.e., less than –60 dBc highest harmonic) at a given frequency (f = 1 MHz). Specifications subject to change without notice. REV. C –3–
