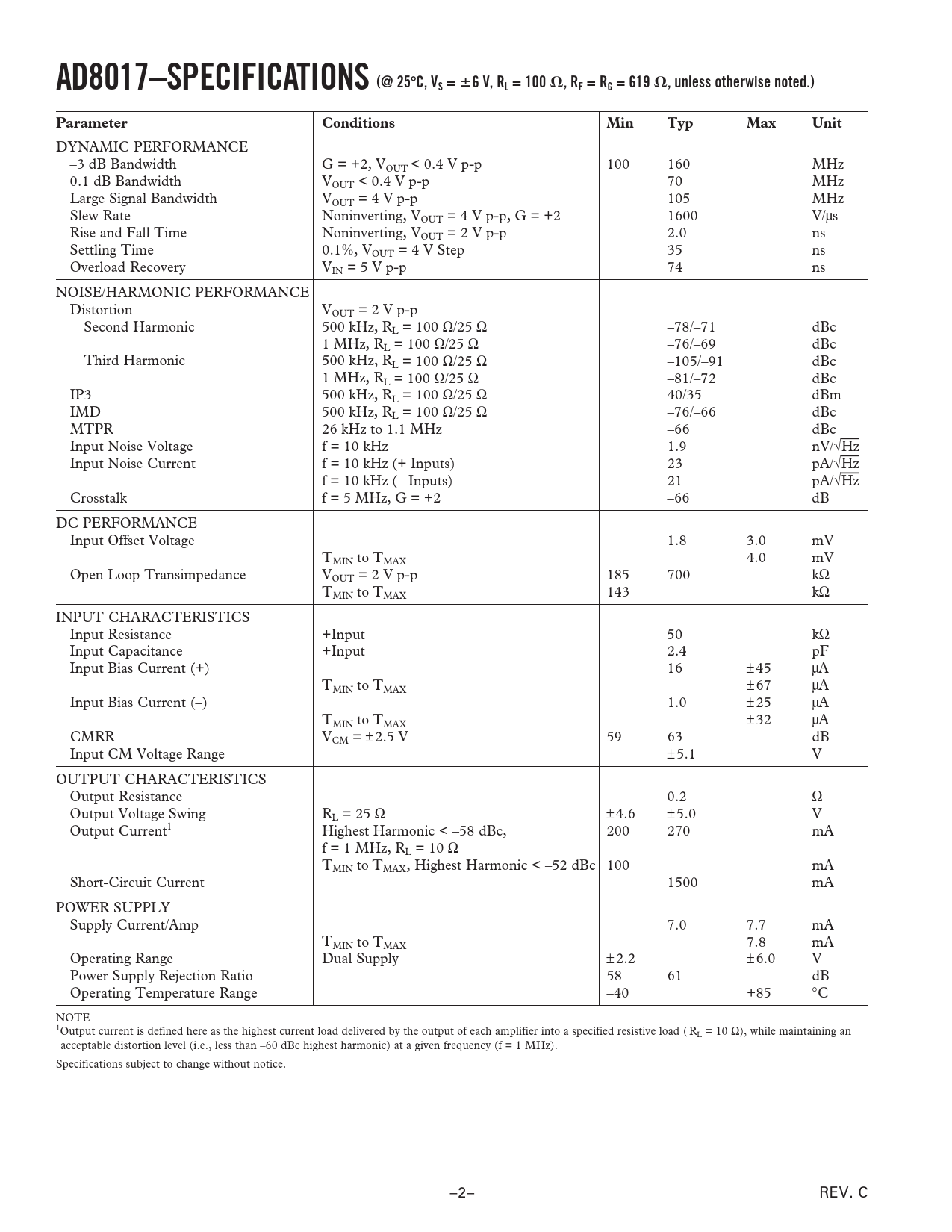

AD8017–SPECIFICATIONS (@ 25. C, VS =. 6 V, RL = 100. , RF = RG = 619. , unless otherwise noted.). Parameter. Conditions. Min. Typ. Max
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD8017–SPECIFICATIONS (@ 25
ⴗ
C, VS =
ⴞ
6 V, RL = 100
⍀
, RF = RG = 619
⍀
, unless otherwise noted.) Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Bandwidth G = +2, VOUT < 0.4 V p-p 100 160 MHz 0.1 dB Bandwidth VOUT < 0.4 V p-p 70 MHz Large Signal Bandwidth VOUT = 4 V p-p 105 MHz Slew Rate Noninverting, VOUT = 4 V p-p, G = +2 1600 V/µs Rise and Fall Time Noninverting, VOUT = 2 V p-p 2.0 ns Settling Time 0.1%, VOUT = 4 V Step 35 ns Overload Recovery VIN = 5 V p-p 74 ns NOISE/HARMONIC PERFORMANCE Distortion VOUT = 2 V p-p Second Harmonic 500 kHz, RL = 100 Ω/25 Ω –78/–71 dBc 1 MHz, RL = 100 Ω/25 Ω –76/–69 dBc Third Harmonic 500 kHz, RL = 100 Ω/25 Ω –105/–91 dBc 1 MHz, RL = 100 Ω/25 Ω –81/–72 dBc IP3 500 kHz, RL = 100 Ω/25 Ω 40/35 dBm IMD 500 kHz, RL = 100 Ω/25 Ω –76/–66 dBc MTPR 26 kHz to 1.1 MHz –66 dBc Input Noise Voltage f = 10 kHz 1.9 nV/√Hz Input Noise Current f = 10 kHz (+ Inputs) 23 pA/√Hz f = 10 kHz (– Inputs) 21 pA/√Hz Crosstalk f = 5 MHz, G = +2 –66 dB DC PERFORMANCE Input Offset Voltage 1.8 3.0 mV TMIN to TMAX 4.0 mV Open Loop Transimpedance VOUT = 2 V p-p 185 700 kΩ TMIN to TMAX 143 kΩ INPUT CHARACTERISTICS Input Resistance +Input 50 kΩ Input Capacitance +Input 2.4 pF Input Bias Current (+) 16 ±45 µA TMIN to TMAX ±67 µA Input Bias Current (–) 1.0 ±25 µA T ± MIN to TMAX 32 µA CMRR VCM = ± 2.5 V 59 63 dB Input CM Voltage Range ±5.1 V OUTPUT CHARACTERISTICS Output Resistance 0.2 Ω Output Voltage Swing RL = 25 Ω ±4.6 ±5.0 V Output Current1 Highest Harmonic < –58 dBc, 200 270 mA f = 1 MHz, RL = 10 Ω TMIN to TMAX, Highest Harmonic < –52 dBc 100 mA Short-Circuit Current 1500 mA POWER SUPPLY Supply Current/Amp 7.0 7.7 mA TMIN to TMAX 7.8 mA Operating Range Dual Supply ±2.2 ±6.0 V Power Supply Rejection Ratio 58 61 dB Operating Temperature Range –40 +85 °C NOTE 1Output current is defined here as the highest current load delivered by the output of each amplifier into a specified resistive load ( RL = 10 Ω), while maintaining an acceptable distortion level (i.e., less than –60 dBc highest harmonic) at a given frequency (f = 1 MHz). Specifications subject to change without notice. –2– REV. C
