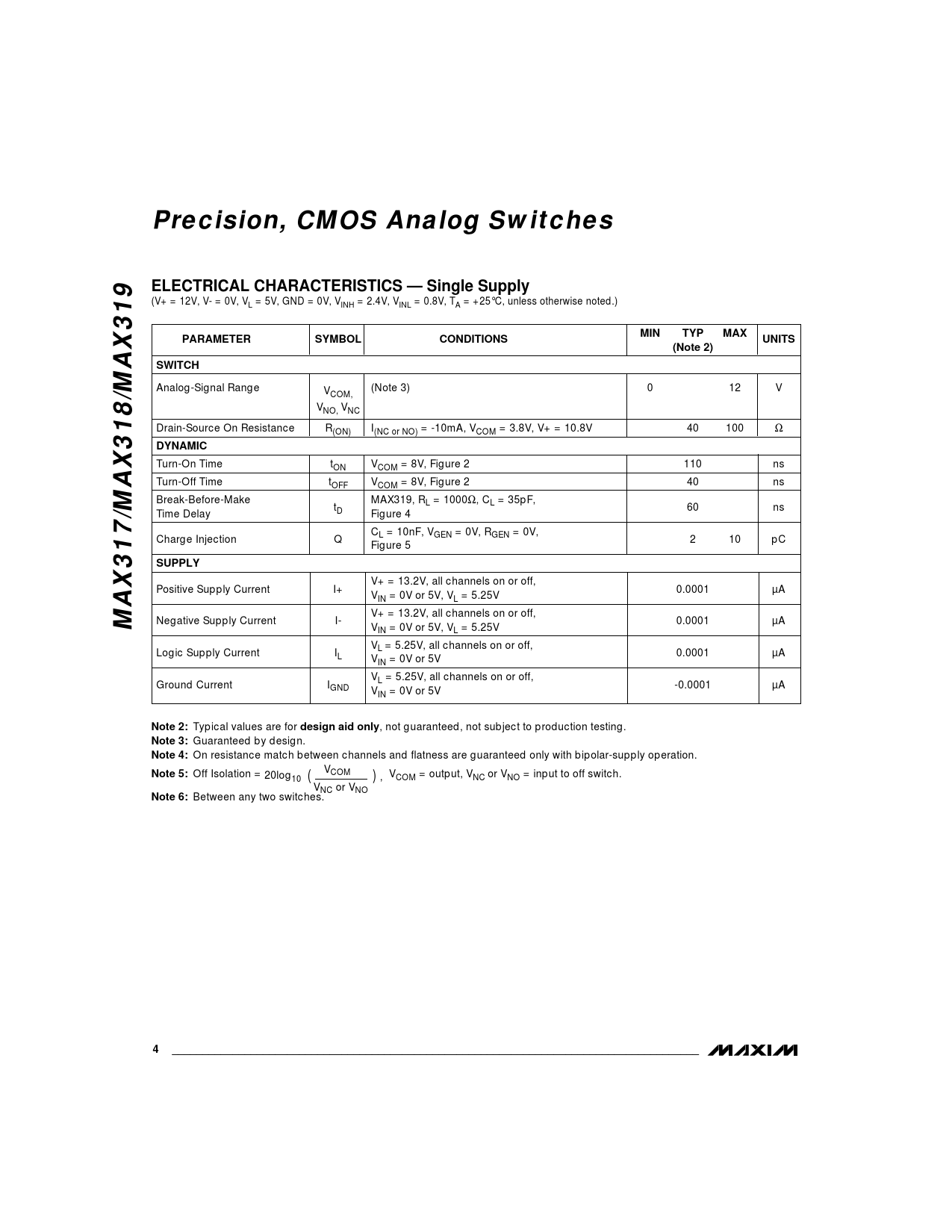

Precision, CMOS Analog Switches ELECTRICAL CHARACTERISTICS — Single Supply
(V+ = 12V, V- = 0V, VL = 5V, GND = 0V, VINH = 2.4V, VINL = 0.8V, TA = +25°C, unless otherwise noted.)
MIN TYP MAX PARAMETER SYMBOL CONDITIONS UNITS (Note 2) SWITCH
Analog-Signal Range V (Note 3) 0 12 V COM, VNO, VNC Drain-Source On Resistance R(ON) I(NC or NO) = -10mA, VCOM = 3.8V, V+ = 10.8V 40 100 Ω
DYNAMIC
Turn-On Time tON VCOM = 8V, Figure 2 110 ns Turn-Off Time tOFF VCOM = 8V, Figure 2 40 ns Break-Before-Make MAX319, R t L = 1000Ω, CL = 35pF, D 60 ns Time Delay Figure 4 C Charge Injection Q L = 10nF, VGEN = 0V, RGEN = 0V, 2 10 pC Figure 5
SUPPLY
V+ = 13.2V, all channels on or off, Positive Supply Current I+ 0.0001 µA VIN = 0V or 5V, VL = 5.25V
MAX317/MAX318/MAX319
V+ = 13.2V, all channels on or off, Negative Supply Current I- 0.0001 µA VIN = 0V or 5V, VL = 5.25V V Logic Supply Current I L = 5.25V, all channels on or off, L 0.0001 µA VIN = 0V or 5V V Ground Current I L = 5.25V, all channels on or off, GND -0.0001 µA VIN = 0V or 5V
Note 2:
Typical values are for
design aid only
, not guaranteed, not subject to production testing.
Note 3:
Guaranteed by design.
Note 4:
On resistance match between channels and flatness are guaranteed only with bipolar-supply operation.
Note 5:
Off Isolation = 20log10 ( VCOM ) , VCOM = output, VNC or VNO = input to off switch. VNC or VNO
Note 6:
Between any two switches.
