Datasheet MAX317, MAX318, MAX319 (Maxim) - 10
| Hersteller | Maxim |
| Beschreibung | Precision, CMOS Analog Switches |
| Seiten / Seite | 12 / 10 — Precision, CMOS Analog Switches. __Ordering Information (continued). … |
| Dateiformat / Größe | PDF / 134 Kb |
| Dokumentensprache | Englisch |

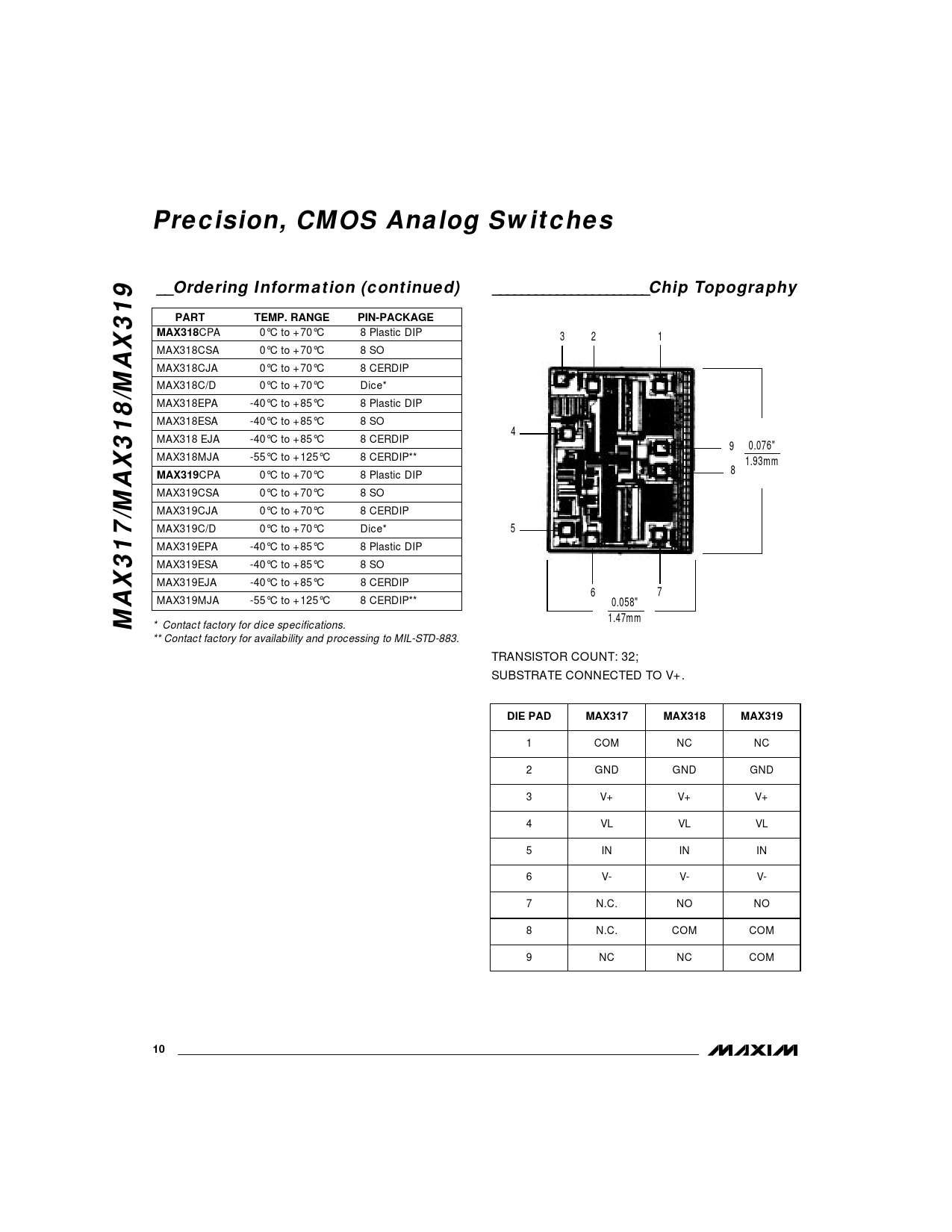

Precision, CMOS Analog Switches. __Ordering Information (continued). ______________________Chip Topography. PART. TEMP. RANGE
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Precision, CMOS Analog Switches __Ordering Information (continued) ______________________Chip Topography PART TEMP. RANGE PIN-PACKAGE MAX318
CPA 0°C to +70°C 8 Plastic DIP 3 2 1 MAX318CSA 0°C to +70°C 8 SO MAX318CJA 0°C to +70°C 8 CERDIP MAX318C/D 0°C to +70°C Dice* MAX318EPA -40°C to +85°C 8 Plastic DIP MAX318ESA -40°C to +85°C 8 SO 4 MAX318 EJA -40°C to +85°C 8 CERDIP 9 0.076" MAX318MJA -55°C to +125°C 8 CERDIP** 1.93mm 8
MAX319
CPA 0°C to +70°C 8 Plastic DIP MAX319CSA 0°C to +70°C 8 SO MAX319CJA 0°C to +70°C 8 CERDIP MAX319C/D 0°C to +70°C Dice* 5 MAX319EPA -40°C to +85°C 8 Plastic DIP MAX319ESA -40°C to +85°C 8 SO MAX319EJA -40°C to +85°C 8 CERDIP 6 7 MAX319MJA -55°C to +125°C 8 CERDIP** 0.058"
MAX317/MAX318/MAX319
1.47mm * Contact factory for dice specifications. ** Contact factory for availability and processing to MIL-STD-883. TRANSISTOR COUNT: 32; SUBSTRATE CONNECTED TO V+.
DIE PAD MAX317 MAX318 MAX319
1 COM NC NC 2 GND GND GND 3 V+ V+ V+ 4 VL VL VL 5 IN IN IN 6 V- V- V- 7 N.C. NO NO 8 N.C. COM COM 9 NC NC COM
10 ______________________________________________________________________________________
CPA 0°C to +70°C 8 Plastic DIP 3 2 1 MAX318CSA 0°C to +70°C 8 SO MAX318CJA 0°C to +70°C 8 CERDIP MAX318C/D 0°C to +70°C Dice* MAX318EPA -40°C to +85°C 8 Plastic DIP MAX318ESA -40°C to +85°C 8 SO 4 MAX318 EJA -40°C to +85°C 8 CERDIP 9 0.076" MAX318MJA -55°C to +125°C 8 CERDIP** 1.93mm 8
MAX319
CPA 0°C to +70°C 8 Plastic DIP MAX319CSA 0°C to +70°C 8 SO MAX319CJA 0°C to +70°C 8 CERDIP MAX319C/D 0°C to +70°C Dice* 5 MAX319EPA -40°C to +85°C 8 Plastic DIP MAX319ESA -40°C to +85°C 8 SO MAX319EJA -40°C to +85°C 8 CERDIP 6 7 MAX319MJA -55°C to +125°C 8 CERDIP** 0.058"
MAX317/MAX318/MAX319
1.47mm * Contact factory for dice specifications. ** Contact factory for availability and processing to MIL-STD-883. TRANSISTOR COUNT: 32; SUBSTRATE CONNECTED TO V+.
DIE PAD MAX317 MAX318 MAX319
1 COM NC NC 2 GND GND GND 3 V+ V+ V+ 4 VL VL VL 5 IN IN IN 6 V- V- V- 7 N.C. NO NO 8 N.C. COM COM 9 NC NC COM
10 ______________________________________________________________________________________
