Datasheet AAOZ8S306BD4-05 (Alpha & Omega) - 2
| Hersteller | Alpha & Omega |
| Beschreibung | 4-Channel Ultra-Low Capacitance TVS Diode Array |
| Seiten / Seite | 5 / 2 — AOZ8S306BD4-05. Ordering Information. Part Number. Ambient Temperature … |
| Dateiformat / Größe | PDF / 605 Kb |
| Dokumentensprache | Englisch |

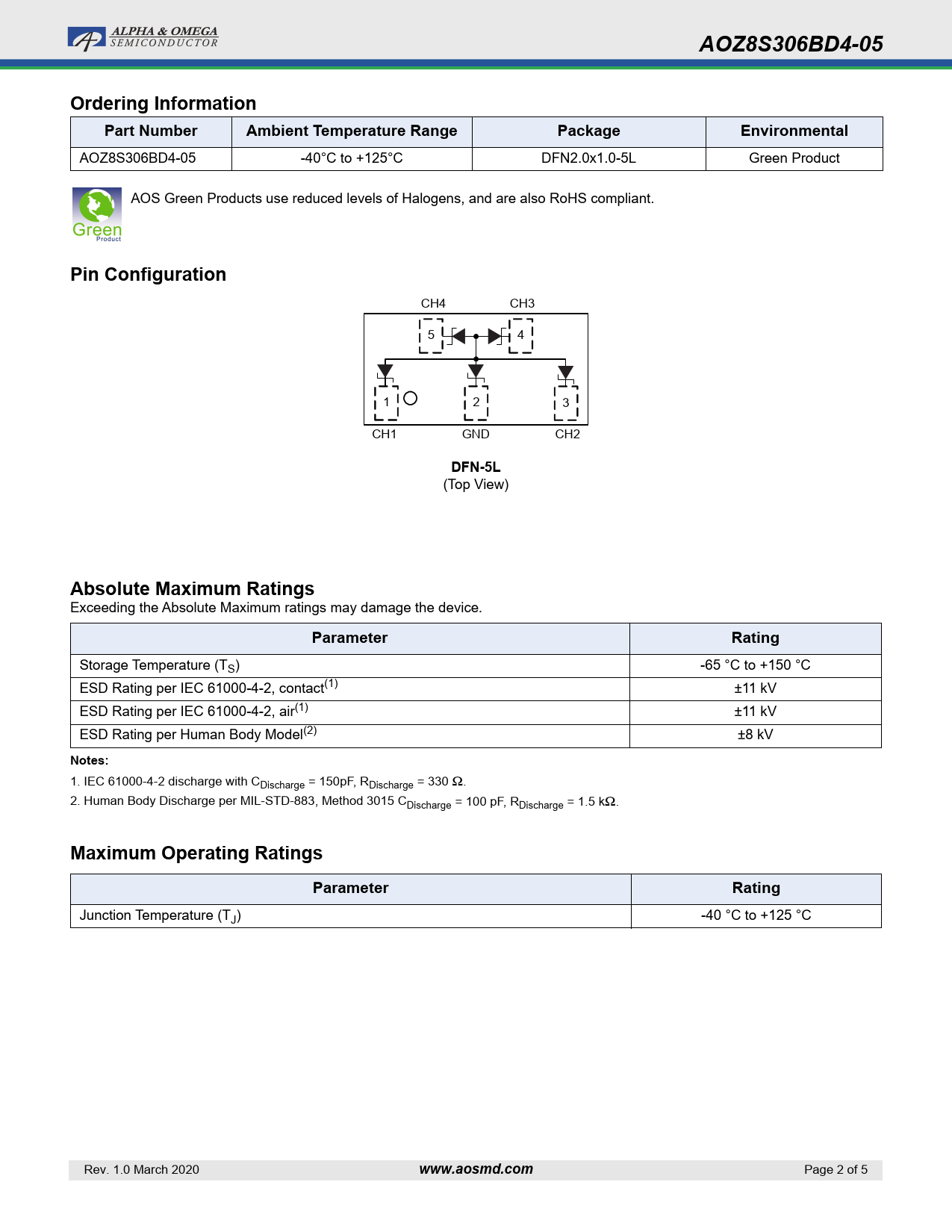

AOZ8S306BD4-05. Ordering Information. Part Number. Ambient Temperature Range. Package. Environmental. Pin Configuration. DFN-5L
Modelllinie für dieses Datenblatt
AAOZ8S306BD4-05
Textversion des Dokuments
AOZ8S306BD4-05 Ordering Information Part Number Ambient Temperature Range Package Environmental
AOZ8S306BD4-05 -40°C to +125°C DFN2.0x1.0-5L Green Product AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Pin Configuration
CH4 CH3 5 4 1 2 3 CH1 GND CH2
DFN-5L
(Top View)
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter Rating
Storage Temperature (TS) -65 °C to +150 °C ESD Rating per IEC 61000-4-2, contact(1) ±11 kV ESD Rating per IEC 61000-4-2, air(1) ±11 kV ESD Rating per Human Body Model(2) ±8 kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330 Ω. 2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ.
Maximum Operating Ratings Parameter Rating
Junction Temperature (TJ) -40 °C to +125 °C Rev. 1.0 March 2020
www.aosmd.com
Page 2 of 5
AOZ8S306BD4-05 -40°C to +125°C DFN2.0x1.0-5L Green Product AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Pin Configuration
CH4 CH3 5 4 1 2 3 CH1 GND CH2
DFN-5L
(Top View)
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter Rating
Storage Temperature (TS) -65 °C to +150 °C ESD Rating per IEC 61000-4-2, contact(1) ±11 kV ESD Rating per IEC 61000-4-2, air(1) ±11 kV ESD Rating per Human Body Model(2) ±8 kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330 Ω. 2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ.
Maximum Operating Ratings Parameter Rating
Junction Temperature (TJ) -40 °C to +125 °C Rev. 1.0 March 2020
www.aosmd.com
Page 2 of 5
