AOZ8S306BD4-05. 4-Channel Ultra-Low Capacitance TVS Diode Array. General Description. Features. Applications
Modelllinie für dieses Datenblatt
AAOZ8S306BD4-05
Textversion des Dokuments

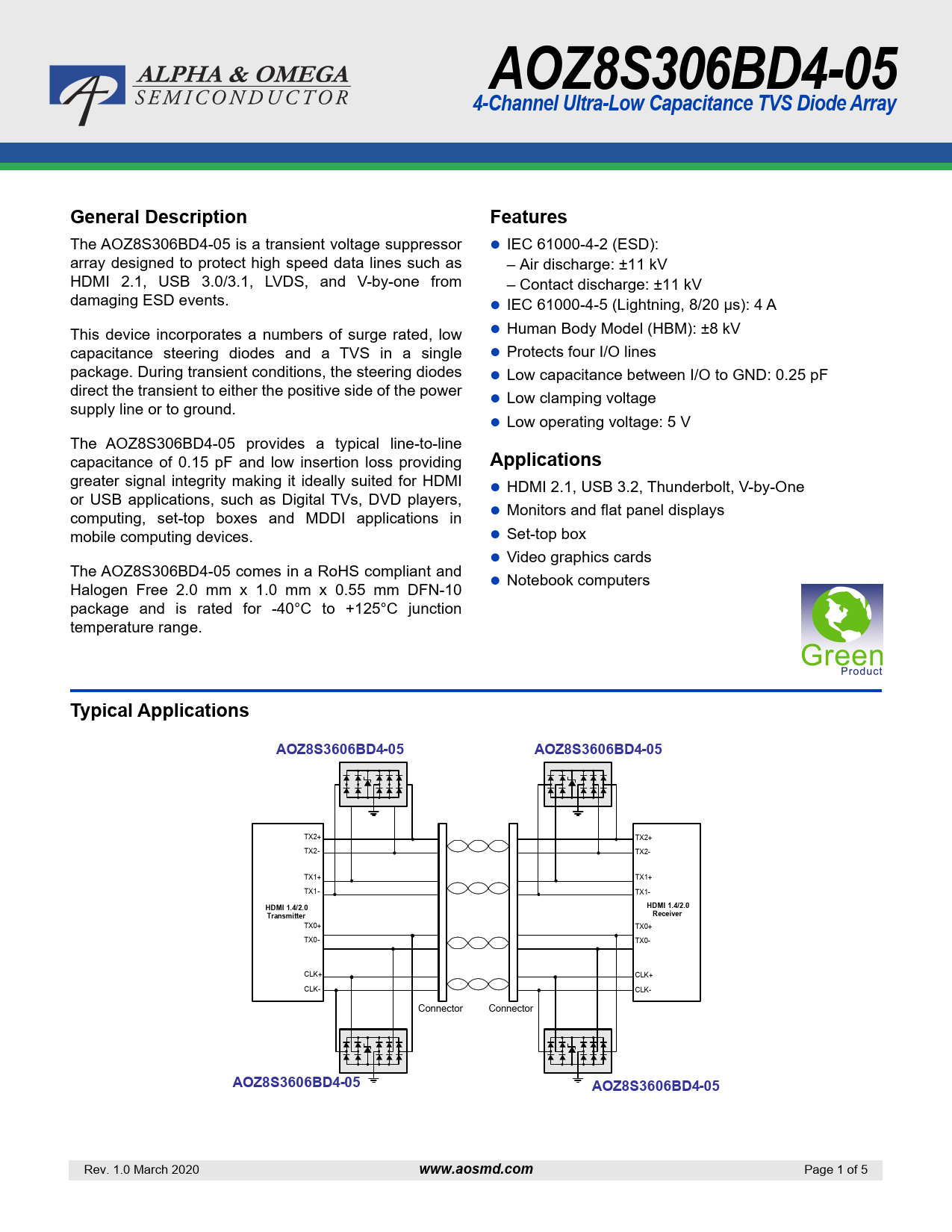

AOZ8S306BD4-05 4-Channel Ultra-Low Capacitance TVS Diode Array General Description Features
The AOZ8S306BD4-05 is a transient voltage suppressor IEC 61000-4-2 (ESD): array designed to protect high speed data lines such as – Air discharge: ±11 kV HDMI 2.1, USB 3.0/3.1, LVDS, and V-by-one from – Contact discharge: ±11 kV damaging ESD events. IEC 61000-4-5 (Lightning, 8/20 μs): 4 A This device incorporates a numbers of surge rated, low Human Body Model (HBM): ±8 kV capacitance steering diodes and a TVS in a single Protects four I/O lines package. During transient conditions, the steering diodes Low capacitance between I/O to GND: 0.25 pF direct the transient to either the positive side of the power supply line or to ground. Low clamping voltage Low operating voltage: 5 V The AOZ8S306BD4-05 provides a typical line-to-line capacitance of 0.15 pF and low insertion loss providing
Applications
greater signal integrity making it ideally suited for HDMI HDMI 2.1, USB 3.2, Thunderbolt, V-by-One or USB applications, such as Digital TVs, DVD players, computing, set-top boxes and MDDI applications in Monitors and flat panel displays mobile computing devices. Set-top box Video graphics cards The AOZ8S306BD4-05 comes in a RoHS compliant and Halogen Free 2.0 mm x 1.0 mm x 0.55 mm DFN-10 Notebook computers package and is rated for -40°C to +125°C junction temperature range.
Typical Applications AOZ8S3606BD4-05 AOZ8S3606BD4-05
TX2+ TX2+ TX2- TX2- TX1+ TX1+ TX1- TX1-
HDMI 1.4/2.0 HDMI 1.4/2.0 Transmitter Receiver
TX0+ TX0+ TX0- TX0- CLK+ CLK+ CLK- CLK- Connector Connector
AOZ8S3606BD4-05 AOZ8S3606BD4-05
Rev. 1.0 March 2020
www.aosmd.com
Page 1 of 5
