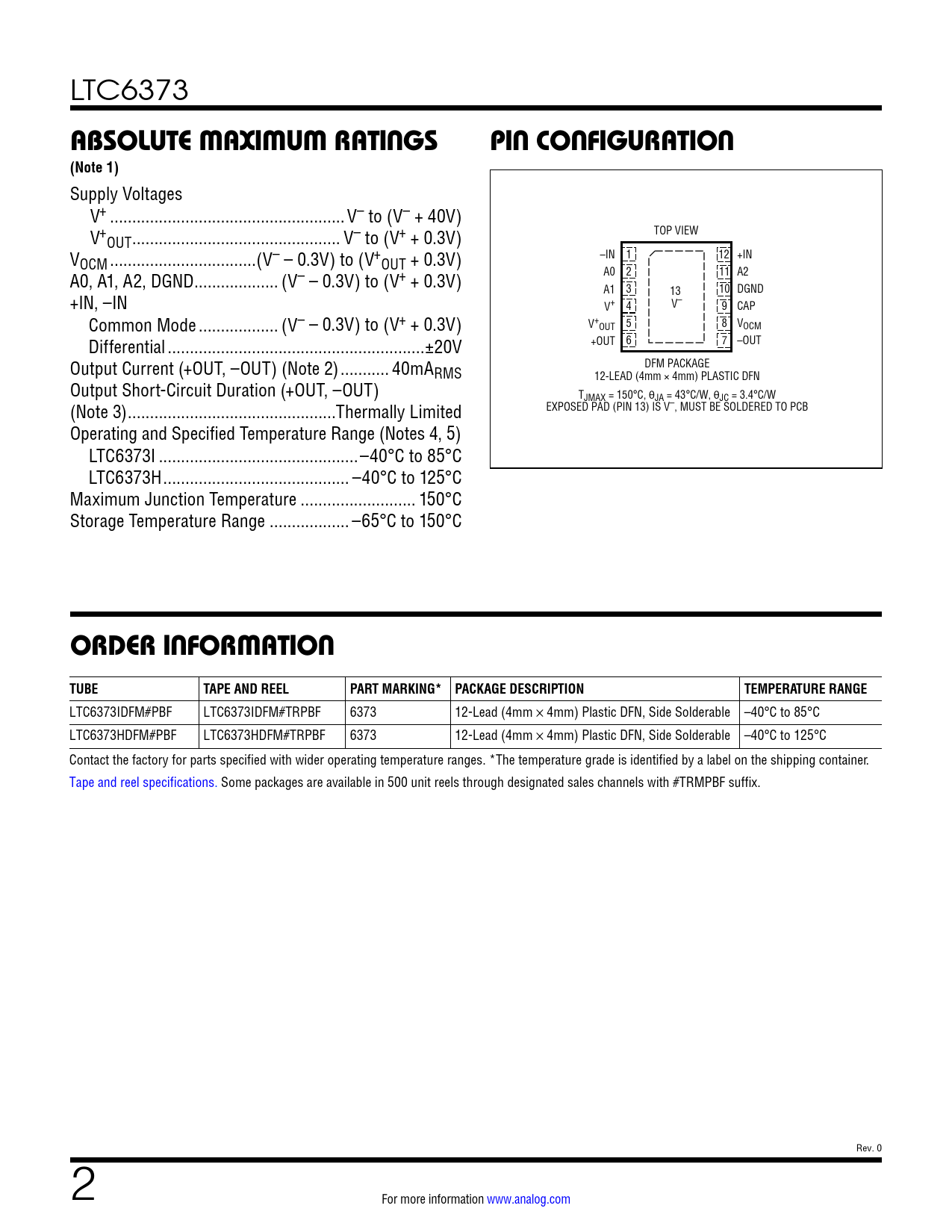

LTC6373
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltages V+ ...V– to (V– + 40V) V+ TOP VIEW OUT ... V– to (V+ + 0.3V) V –IN 1 12 +IN OCM ...(V– – 0.3V) to (V+OUT + 0.3V) A0, A1, A2, DGND ... (V– – 0.3V) to (V+ + 0.3V) A0 2 11 A2 A1 3 10 DGND +IN, –IN 13 V+ 4 V– 9 CAP Common Mode .. (V– – 0.3V) to (V+ + 0.3V) V+ 5 OUT 8 VOCM Differential ..±20V +OUT 6 7 –OUT Output Current (+OUT, –OUT) (Note 2) ... 40mA DFM PACKAGE RMS 12-LEAD (4mm × 4mm) PLASTIC DFN Output Short-Circuit Duration (+OUT, –OUT) TJMAX = 150°C, θJA = 43°C/W, θJC = 3.4°C/W (Note 3) ...Thermally Limited EXPOSED PAD (PIN 13) IS V–, MUST BE SOLDERED TO PCB Operating and Specified Temperature Range (Notes 4, 5) LTC6373I ...–40°C to 85°C LTC6373H .. –40°C to 125°C Maximum Junction Temperature .. 150°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION TUBE TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6373IDFM#PBF LTC6373IDFM#TRPBF 6373 12-Lead (4mm × 4mm) Plastic DFN, Side Solderable –40°C to 85°C LTC6373HDFM#PBF LTC6373HDFM#TRPBF 6373 12-Lead (4mm × 4mm) Plastic DFN, Side Solderable –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev. 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Applications Information Package Description Typical Application Related Parts
