Datasheet LTC6373 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 36V Fully-Differential Programmable-Gain Instrumentation Amplifier with 25pA Input Bias Current |
| Seiten / Seite | 34 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| Dateiformat / Größe | PDF / 4.0 Mb |
| Dokumentensprache | Englisch |

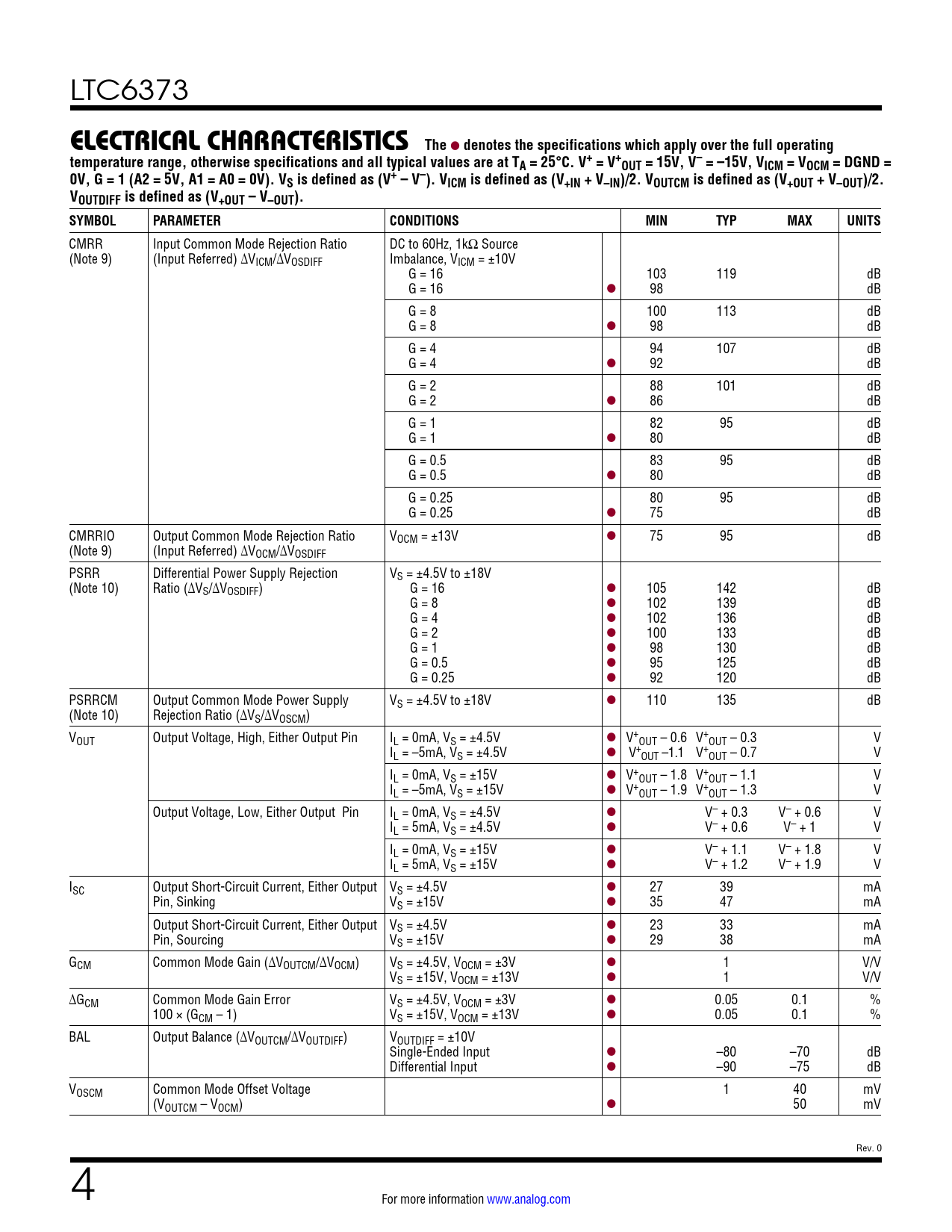

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC6373
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications and all typical values are at TA = 25°C. V+ = V+OUT = 15V, V– = –15V, VICM = VOCM = DGND = 0V, G = 1 (A2 = 5V, A1 = A0 = 0V). VS is defined as (V+ – V–). VICM is defined as (V+IN + V–IN)/2. VOUTCM is defined as (V+OUT + V–OUT)/2. VOUTDIFF is defined as (V+OUT – V–OUT). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
CMRR Input Common Mode Rejection Ratio DC to 60Hz, 1kΩ Source (Note 9) (Input Referred) ∆VICM/∆VOSDIFF Imbalance, VICM = ±10V G = 16 103 119 dB G = 16 l 98 dB G = 8 100 113 dB G = 8 l 98 dB G = 4 94 107 dB G = 4 l 92 dB G = 2 88 101 dB G = 2 l 86 dB G = 1 82 95 dB G = 1 l 80 dB G = 0.5 83 95 dB G = 0.5 l 80 dB G = 0.25 80 95 dB G = 0.25 l 75 dB CMRRIO Output Common Mode Rejection Ratio VOCM = ±13V l 75 95 dB (Note 9) (Input Referred) ∆VOCM/∆VOSDIFF PSRR Differential Power Supply Rejection VS = ±4.5V to ±18V (Note 10) Ratio (∆VS/∆VOSDIFF) G = 16 l 105 142 dB G = 8 l 102 139 dB G = 4 l 102 136 dB G = 2 l 100 133 dB G = 1 l 98 130 dB G = 0.5 l 95 125 dB G = 0.25 l 92 120 dB PSRRCM Output Common Mode Power Supply VS = ±4.5V to ±18V l 110 135 dB (Note 10) Rejection Ratio (∆VS/∆VOSCM) VOUT Output Voltage, High, Either Output Pin IL = 0mA, VS = ±4.5V l V+OUT – 0.6 V+OUT – 0.3 V IL = –5mA, VS = ±4.5V l V+OUT –1.1 V+OUT – 0.7 V IL = 0mA, VS = ±15V l V+OUT – 1.8 V+OUT – 1.1 V IL = –5mA, VS = ±15V l V+OUT – 1.9 V+OUT – 1.3 V Output Voltage, Low, Either Output Pin IL = 0mA, VS = ±4.5V l V– + 0.3 V– + 0.6 V IL = 5mA, VS = ±4.5V l V– + 0.6 V– + 1 V IL = 0mA, VS = ±15V l V– + 1.1 V– + 1.8 V IL = 5mA, VS = ±15V l V– + 1.2 V– + 1.9 V ISC Output Short-Circuit Current, Either Output VS = ±4.5V l 27 39 mA Pin, Sinking VS = ±15V l 35 47 mA Output Short-Circuit Current, Either Output VS = ±4.5V l 23 33 mA Pin, Sourcing VS = ±15V l 29 38 mA GCM Common Mode Gain (∆VOUTCM/∆VOCM) VS = ±4.5V, VOCM = ±3V l 1 V/V VS = ±15V, VOCM = ±13V l 1 V/V ∆GCM Common Mode Gain Error VS = ±4.5V, VOCM = ±3V l 0.05 0.1 % 100 × (GCM – 1) VS = ±15V, VOCM = ±13V l 0.05 0.1 % BAL Output Balance (∆VOUTCM/∆VOUTDIFF) VOUTDIFF = ±10V Single-Ended Input l –80 –70 dB Differential Input l –90 –75 dB VOSCM Common Mode Offset Voltage 1 40 mV (VOUTCM – VOCM) l 50 mV Rev. 0 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Applications Information Package Description Typical Application Related Parts
