Datasheet IR53HD420, IR53H420 (Infineon) - 8
| Hersteller | Infineon |
| Beschreibung | Self-Oscillating Half Bridge |
| Seiten / Seite | 8 / 8 — IR53H(D)420. Case Outline - 7 pin. 16.89 (.665). 16.63 (.655). 3.18 … |
| Dateiformat / Größe | PDF / 72 Kb |
| Dokumentensprache | Englisch |

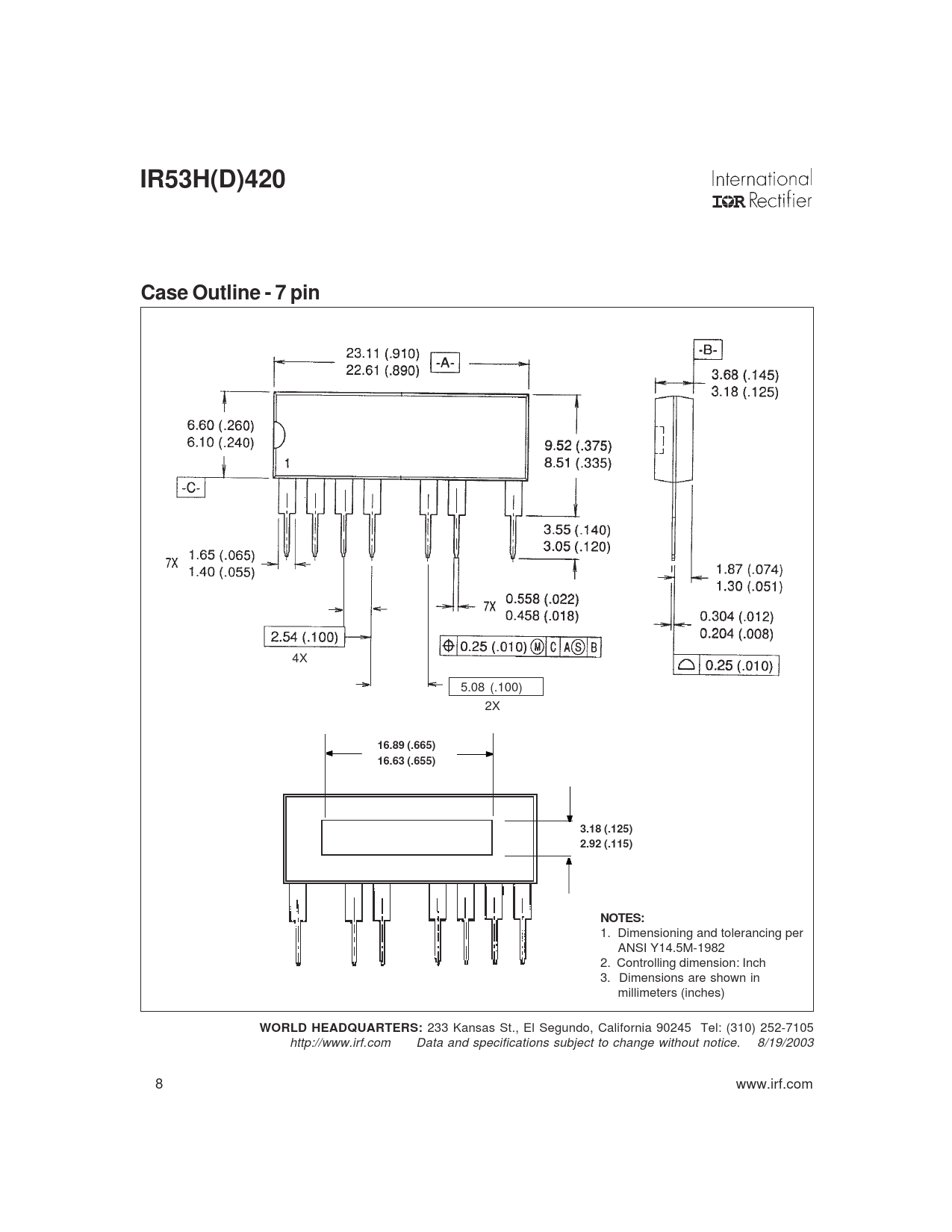

IR53H(D)420. Case Outline - 7 pin. 16.89 (.665). 16.63 (.655). 3.18 (.125). 2.92 (.115). NOTES:. WORLD HEADQUARTERS:
Modelllinie für dieses Datenblatt
Textversion des Dokuments
IR53H(D)420 Case Outline - 7 pin
4X 5.08 (.100) 2X
16.89 (.665) 16.63 (.655) 3.18 (.125) 2.92 (.115) NOTES:
1. Dimensioning and tolerancing per ANSI Y14.5M-1982 2. Controlling dimension: Inch 3. Dimensions are shown in millimeters (inches)
WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245 Tel: (310) 252-7105 http://www.irf.com Data and specifications subject to change without notice. 8/19/2003 8 www.irf.com
