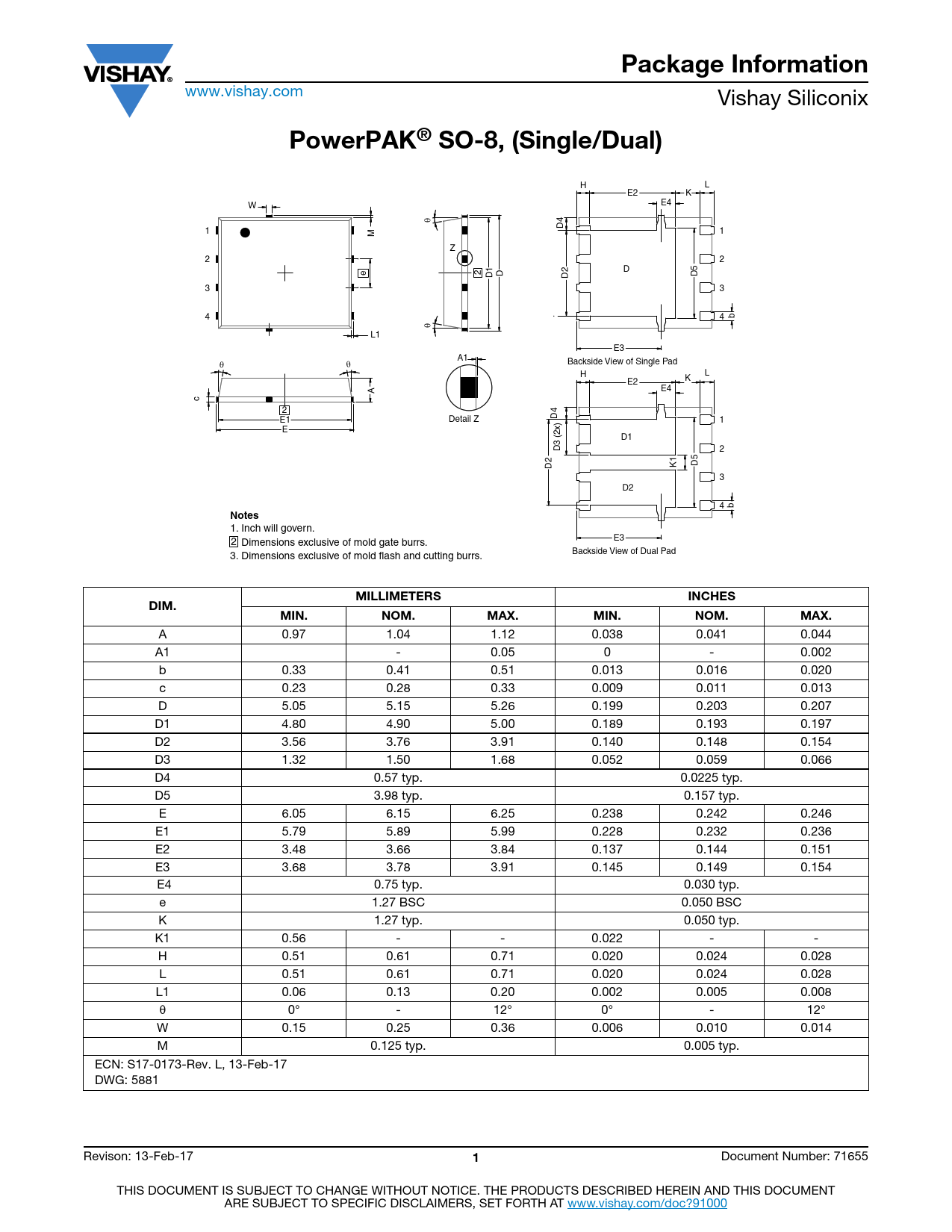

Package Information. PowerPAK® SO-8, (Single/Dual). Notes. MILLIMETERS. INCHES. DIM. MIN. NOM. MAX
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Package Information
www.vishay.com Vishay Siliconix
PowerPAK® SO-8, (Single/Dual)
H L E2 K W E4 θ D4 1 1 M Z 2 2 D e 2 D1 D D2 D5 3 3 4 4 b θ L1 E3 A1 Backside View of Single Pad θ θ L H K E2 A E4 c 2 E1 Detail Z D4 1 E D1 D3 (2x) 2 D2 K1 D5 3 D2 4 b
Notes
1. Inch will govern. 2 E3 Dimensions exclusive of mold gate burrs. Backside View of Dual Pad 3. Dimensions exclusive of mold flash and cutting burrs.
MILLIMETERS INCHES DIM. MIN. NOM. MAX. MIN. NOM. MAX.
A 0.97 1.04 1.12 0.038 0.041 0.044 A1 - 0.05 0 - 0.002 b 0.33 0.41 0.51 0.013 0.016 0.020 c 0.23 0.28 0.33 0.009 0.011 0.013 D 5.05 5.15 5.26 0.199 0.203 0.207 D1 4.80 4.90 5.00 0.189 0.193 0.197 D2 3.56 3.76 3.91 0.140 0.148 0.154 D3 1.32 1.50 1.68 0.052 0.059 0.066 D4 0.57 typ. 0.0225 typ. D5 3.98 typ. 0.157 typ. E 6.05 6.15 6.25 0.238 0.242 0.246 E1 5.79 5.89 5.99 0.228 0.232 0.236 E2 3.48 3.66 3.84 0.137 0.144 0.151 E3 3.68 3.78 3.91 0.145 0.149 0.154 E4 0.75 typ. 0.030 typ. e 1.27 BSC 0.050 BSC K 1.27 typ. 0.050 typ. K1 0.56 - - 0.022 - - H 0.51 0.61 0.71 0.020 0.024 0.028 L 0.51 0.61 0.71 0.020 0.024 0.028 L1 0.06 0.13 0.20 0.002 0.005 0.008 0° - 12° 0° - 12° W 0.15 0.25 0.36 0.006 0.010 0.014 M 0.125 typ. 0.005 typ. ECN: S17-0173-Rev. L, 13-Feb-17 DWG: 5881 Revison: 13-Feb-17
