Datasheet ADP1715, ADP1716 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | 500 mA, Low Dropout, CMOS Linear Regulator |
| Seiten / Seite | 20 / 5 — ADP1715/ADP1716. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. EN 1. GND. … |
| Dateiformat / Größe | PDF / 613 Kb |
| Dokumentensprache | Englisch |
ADP1715/ADP1716. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. EN 1. GND. ADP1715. IN 2. ADP1716. FIXED. ADJUSTABLE. OUT 3. TOP VIEW. OUT. SS 4
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 10

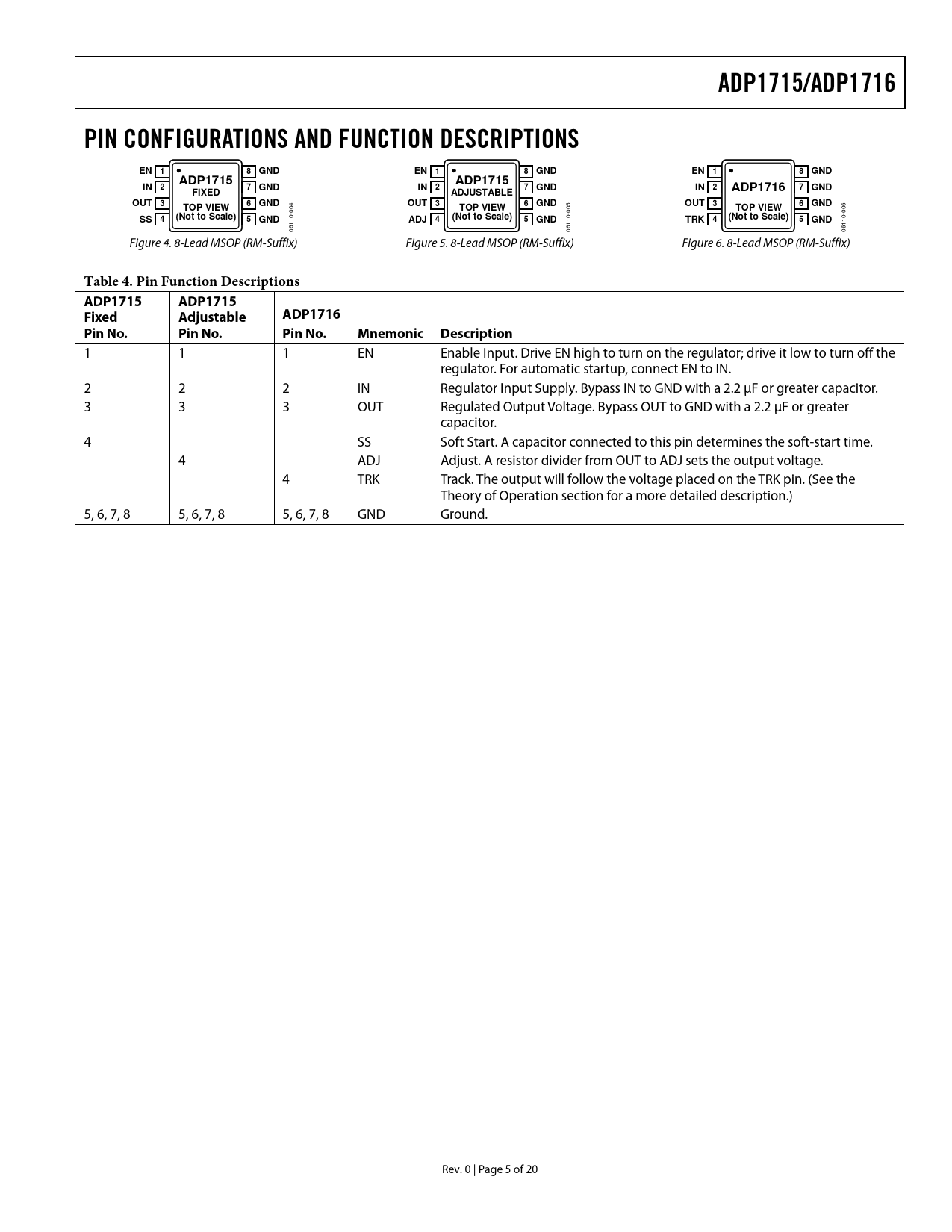

ADP1715/ADP1716 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS EN 1 8 GND EN 1 8 GND EN 1 8 GND ADP1715 ADP1715 IN 2 7 GND IN 2 7 GND IN 2 ADP1716 7 GND FIXED ADJUSTABLE OUT 3 6 GND 3 6 3 6 TOP VIEW
4
OUT GND TOP VIEW
5
OUT GND TOP VIEW
6 -00 -00 -00
SS 4 (Not to Scale) 5 GND ADJ 4 (Not to Scale) 5 GND TRK 4 (Not to Scale) 5 GND
6110 6110 6110 0 0 0 Figure 4. 8-Lead MSOP (RM-Suffix) Figure 5. 8-Lead MSOP (RM-Suffix) Figure 6. 8-Lead MSOP (RM-Suffix)
Table 4. Pin Function Descriptions ADP1715 ADP1715 Fixed Adjustable ADP1716 Pin No. Pin No. Pin No. Mnemonic Description
1 1 1 EN Enable Input. Drive EN high to turn on the regulator; drive it low to turn off the regulator. For automatic startup, connect EN to IN. 2 2 2 IN Regulator Input Supply. Bypass IN to GND with a 2.2 μF or greater capacitor. 3 3 3 OUT Regulated Output Voltage. Bypass OUT to GND with a 2.2 μF or greater capacitor. 4 SS Soft Start. A capacitor connected to this pin determines the soft-start time. 4 ADJ Adjust. A resistor divider from OUT to ADJ sets the output voltage. 4 TRK Track. The output will follow the voltage placed on the TRK pin. (See the Theory of Operation section for a more detailed description.) 5, 6, 7, 8 5, 6, 7, 8 5, 6, 7, 8 GND Ground. Rev. 0 | Page 5 of 20 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUITS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SOFT-START FUNCTION (ADP1715) ADJUSTABLE OUTPUT VOLTAGE (ADP1715 ADJUSTABLE) TRACK MODE (ADP1716) ENABLE FEATURE APPLICATION INFORMATION CAPACITOR SELECTION CURRENT LIMIT AND THERMAL OVERLOAD PROTECTION THERMAL CONSIDERATIONS PRINTED CIRCUIT BOARD LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
