AD8564. ABSOLUTE MAXIMUM RATINGS. Table 3. THERMAL RESISTANCE. Parameter Rating. Table 4. Thermal Resistance. Package Type. θJA
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 5

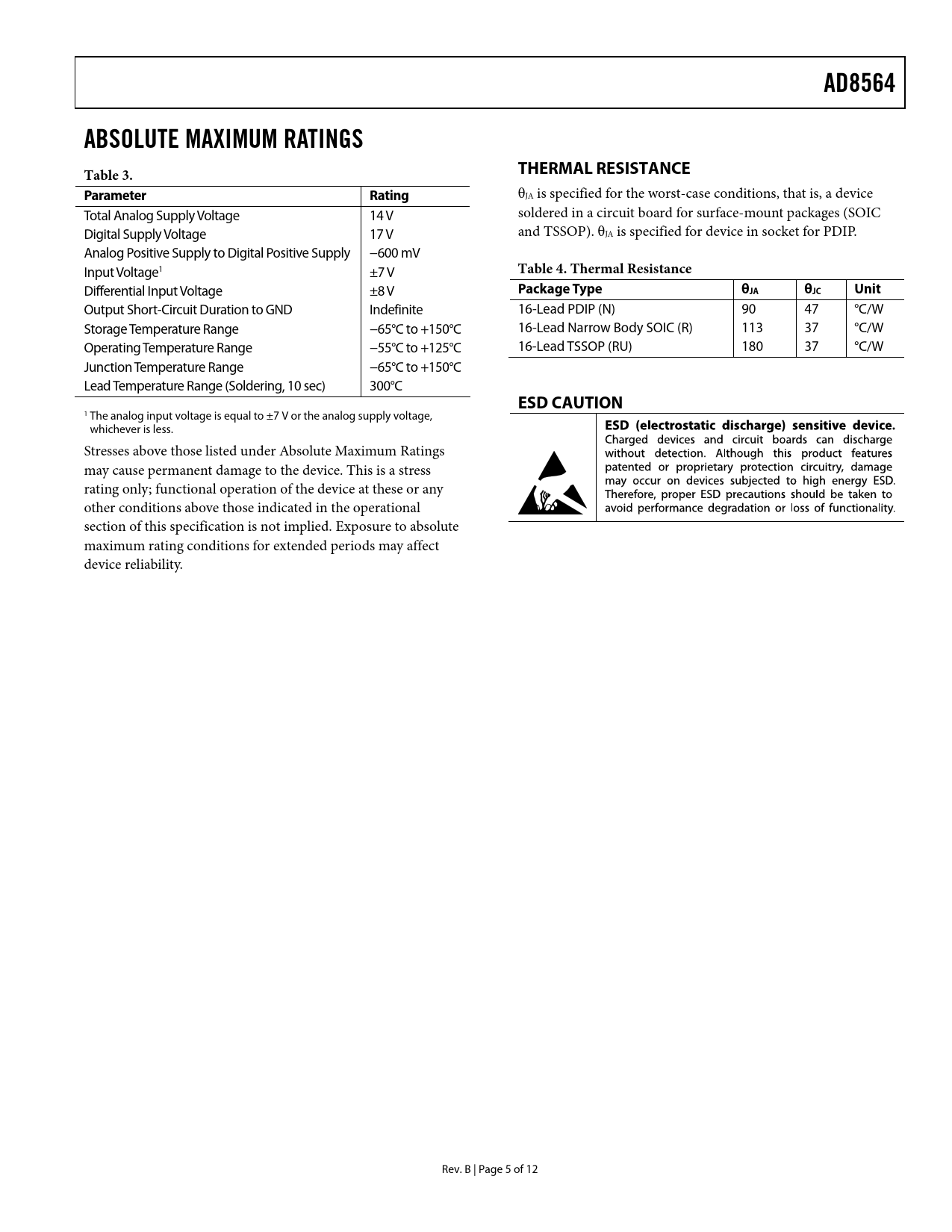

AD8564 ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Total Analog Supply Voltage 14 V soldered in a circuit board for surface-mount packages (SOIC Digital Supply Voltage 17 V and TSSOP). θJA is specified for device in socket for PDIP. Analog Positive Supply to Digital Positive Supply −600 mV Input Voltage1 ±7 V
Table 4. Thermal Resistance
Differential Input Voltage ±8 V
Package Type θJA θJC Unit
Output Short-Circuit Duration to GND Indefinite 16-Lead PDIP (N) 90 47 °C/W Storage Temperature Range −65°C to +150°C 16-Lead Narrow Body SOIC (R) 113 37 °C/W Operating Temperature Range −55°C to +125°C 16-Lead TSSOP (RU) 180 37 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature Range (Soldering, 10 sec) 300°C
ESD CAUTION
1 The analog input voltage is equal to ±7 V or the analog supply voltage, whichever is less. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 5 of 12 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION OPTIMIZING HIGH SPEED PERFORMANCE OUTPUT LOADING CONSIDERATIONS INPUT STAGE AND BIAS CURRENTS USING HYSTERESIS OUTLINE DIMENSIONS ORDERING GUIDE
