Datasheet ADCMP563, ADCMP564 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | Dual High Speed ECL Comparators |
| Seiten / Seite | 15 / 5 — Data Sheet. ADCMP563/ADCMP564. ABSOLUTE MAXIMUM RATINGS Table 2. … |
| Revision | D |
| Dateiformat / Größe | PDF / 291 Kb |
| Dokumentensprache | Englisch |
Data Sheet. ADCMP563/ADCMP564. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. THERMAL CONSIDERATIONS. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments

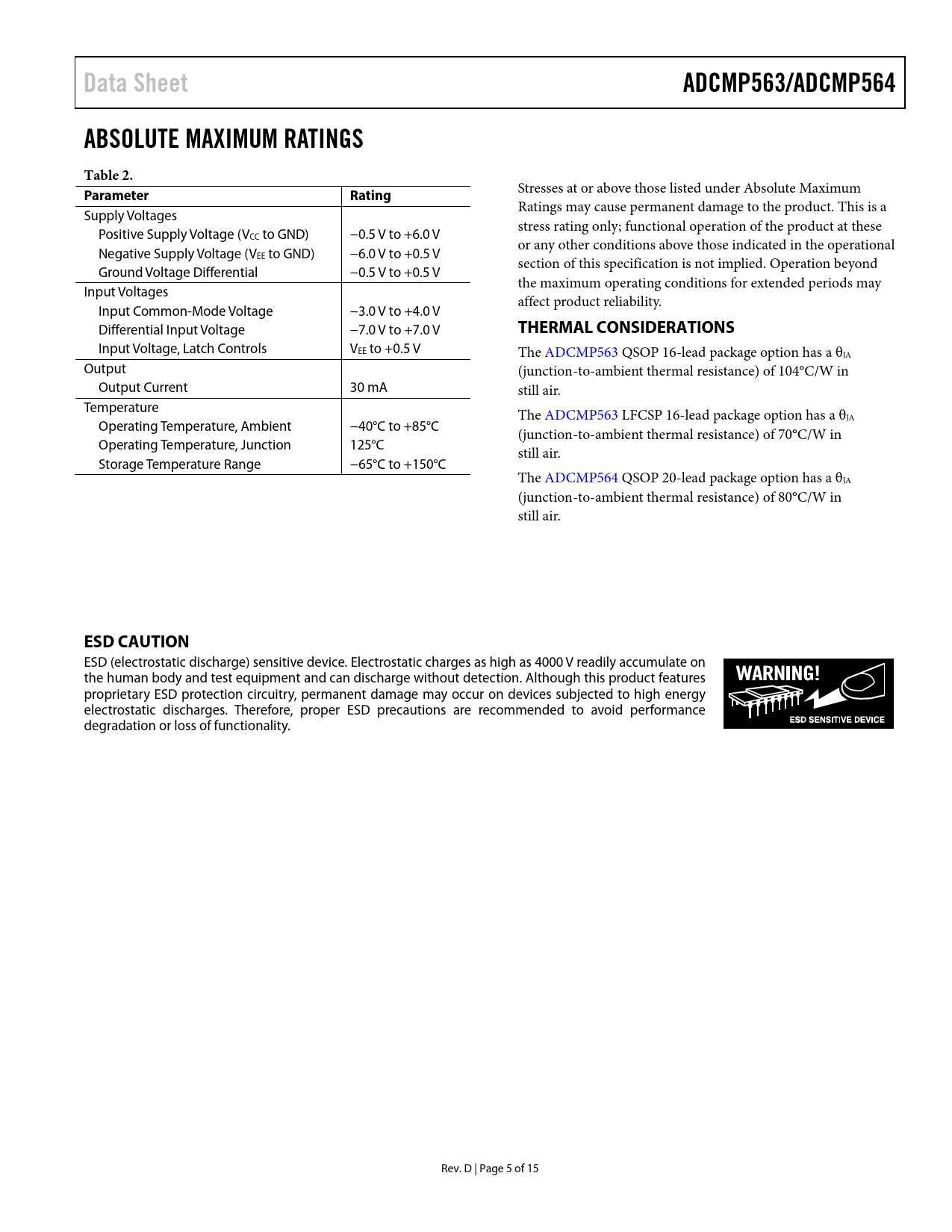

Data Sheet ADCMP563/ADCMP564 ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a Supply Voltages Positive Supply Voltage (V stress rating only; functional operation of the product at these CC to GND) −0.5 V to +6.0 V or any other conditions above those indicated in the operational Negative Supply Voltage (VEE to GND) −6.0 V to +0.5 V section of this specification is not implied. Operation beyond Ground Voltage Differential −0.5 V to +0.5 V the maximum operating conditions for extended periods may Input Voltages affect product reliability. Input Common-Mode Voltage −3.0 V to +4.0 V Differential Input Voltage −7.0 V to +7.0 V
THERMAL CONSIDERATIONS
Input Voltage, Latch Controls VEE to +0.5 V The ADCMP563 QSOP 16-lead package option has a θJA Output (junction-to-ambient thermal resistance) of 104°C/W in Output Current 30 mA still air. Temperature The ADCMP563 LFCSP 16-lead package option has a θJA Operating Temperature, Ambient −40°C to +85°C (junction-to-ambient thermal resistance) of 70°C/W in Operating Temperature, Junction 125°C still air. Storage Temperature Range −65°C to +150°C The ADCMP564 QSOP 20-lead package option has a θJA (junction-to-ambient thermal resistance) of 80°C/W in still air.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. D | Page 5 of 15 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CONSIDERATIONS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TIMING INFORMATION APPLICATION INFORMATION CLOCK TIMING RECOVERY OPTIMIZING HIGH SPEED PERFORMANCE COMPARATOR PROPAGATION DELAY DISPERSION COMPARATOR HYSTERESIS MINIMUM INPUT SLEW RATE REQUIREMENT TYPICAL APPLICATION CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
