Datasheet STX817A (STMicroelectronics) - 7
| Hersteller | STMicroelectronics |
| Beschreibung | PNP Medium power transistor |
| Seiten / Seite | 9 / 7 — STX817A. Package mechanical data. TO-92 AMMOPACK SHIPMENT (Suffix”-AP”) … |
| Dateiformat / Größe | PDF / 143 Kb |
| Dokumentensprache | Englisch |

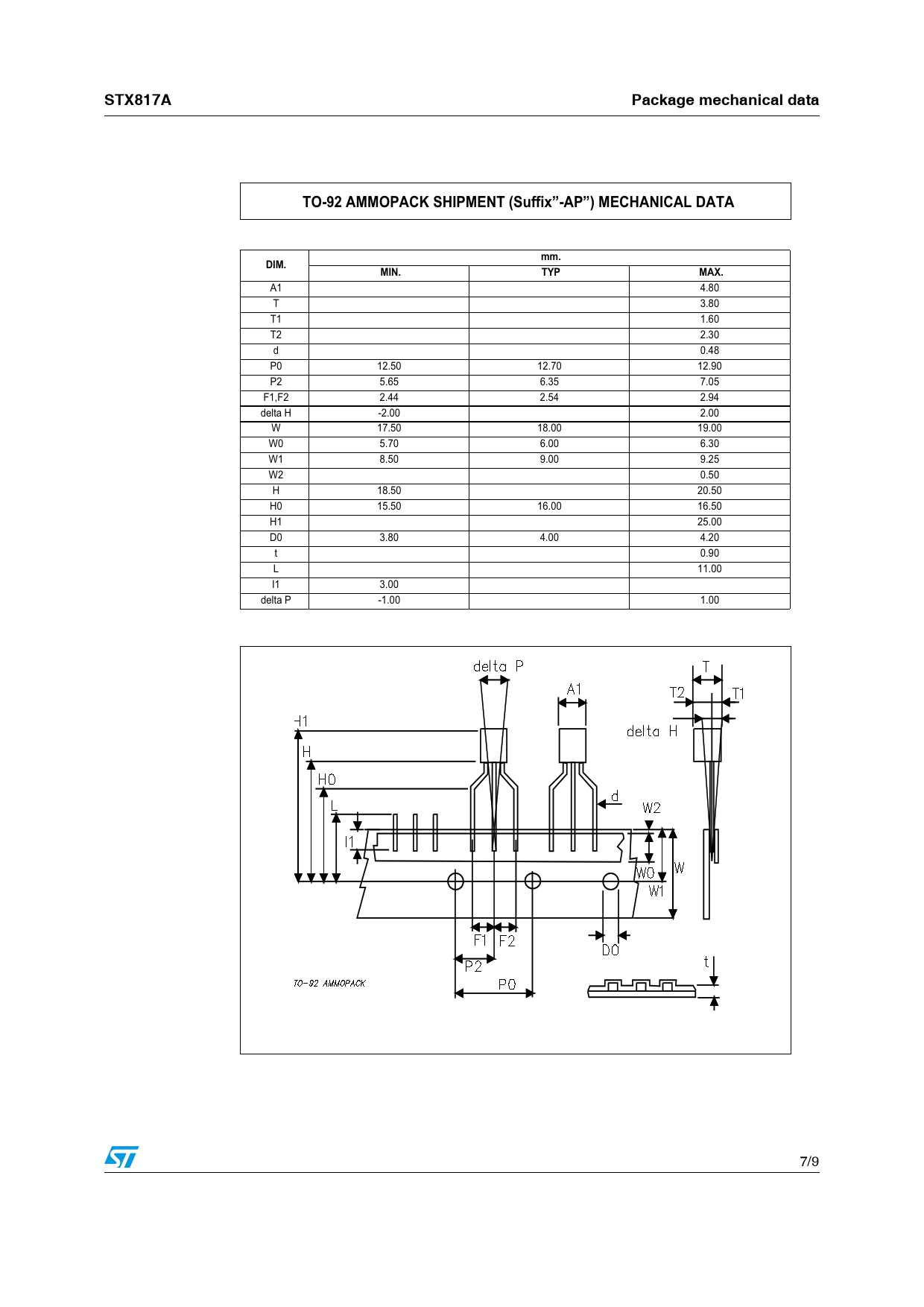

STX817A. Package mechanical data. TO-92 AMMOPACK SHIPMENT (Suffix”-AP”) MECHANICAL DATA. mm. DIM. MIN. TYP. MAX
Modelllinie für dieses Datenblatt
Textversion des Dokuments
STX817A Package mechanical data TO-92 AMMOPACK SHIPMENT (Suffix”-AP”) MECHANICAL DATA mm. DIM. MIN. TYP MAX.
A1 4.80 T 3.80 T1 1.60 T2 2.30 d 0.48 P0 12.50 12.70 12.90 P2 5.65 6.35 7.05 F1,F2 2.44 2.54 2.94 delta H -2.00 2.00 W 17.50 18.00 19.00 W0 5.70 6.00 6.30 W1 8.50 9.00 9.25 W2 0.50 H 18.50 20.50 H0 15.50 16.00 16.50 H1 25.00 D0 3.80 4.00 4.20 t 0.90 L 11.00 I1 3.00 delta P -1.00 1.00 7/9 Document Outline 1 Electrical ratings Table 1. Absolute maximum rating 2 Electrical characteristics Table 3. Electrical characteristics 3 Package mechanical data 4 Revision history Table 4. Revision history
