Datasheet STX817A (STMicroelectronics) - 6
| Hersteller | STMicroelectronics |
| Beschreibung | PNP Medium power transistor |
| Seiten / Seite | 9 / 6 — Package mechanical data. STX817A. TO-92 BULK SHIPMENT MECHANICAL DATA. … |
| Dateiformat / Größe | PDF / 143 Kb |
| Dokumentensprache | Englisch |

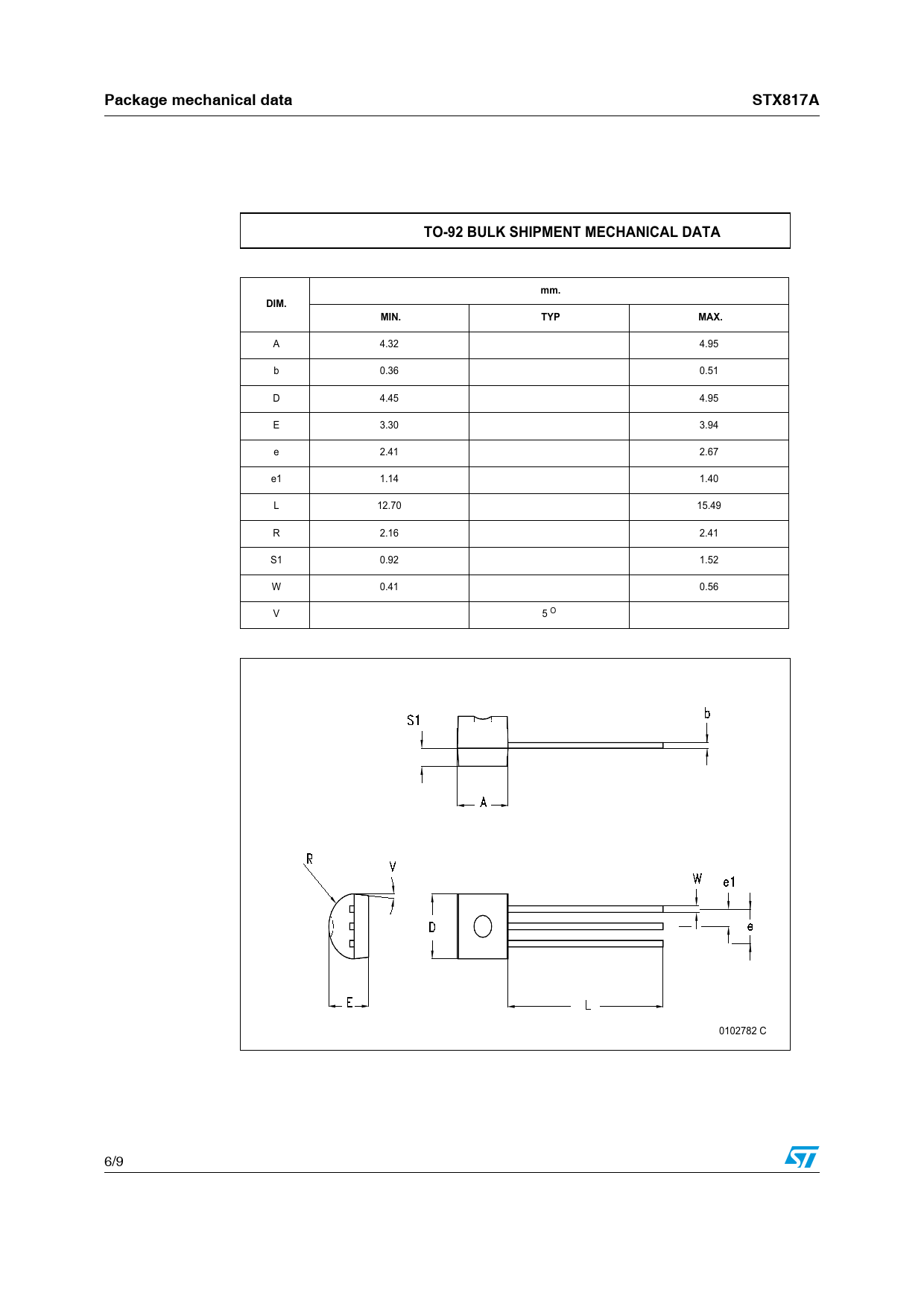

Package mechanical data. STX817A. TO-92 BULK SHIPMENT MECHANICAL DATA. mm. DIM. MIN. TYP. MAX
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Package mechanical data STX817A TO-92 BULK SHIPMENT MECHANICAL DATA mm. DIM. MIN. TYP MAX.
A 4.32 4.95 b 0.36 0.51 D 4.45 4.95 E 3.30 3.94 e 2.41 2.67 e1 1.14 1.40 L 12.70 15.49 R 2.16 2.41 S1 0.92 1.52 W 0.41 0.56 V 5 O 0102782 C 6/9 Document Outline 1 Electrical ratings Table 1. Absolute maximum rating 2 Electrical characteristics Table 3. Electrical characteristics 3 Package mechanical data 4 Revision history Table 4. Revision history
