Data Sheet HMC434 OUTLINE DIMENSIONS 3.00 2.90 2.80 6 5 4 3.00 1.70 2.80 1.60 2.60 1.50 1 2 3 PIN 1 INDICATOR 0.95 BSC 1.90 BSC 1.30 1.15 0.90 1.45 MAX 0.20 MAX 0.95 MIN 0.08 MIN 0.55 .15 MAX 10° SEATING 0.45 .05 MIN 4° 0.60 0.50 MAX PLANE BSC 0.35 0° 0.30 MIN -A 08 -20 COMPLIANT TO JEDEC STANDARDS MO-178-AB -16 12

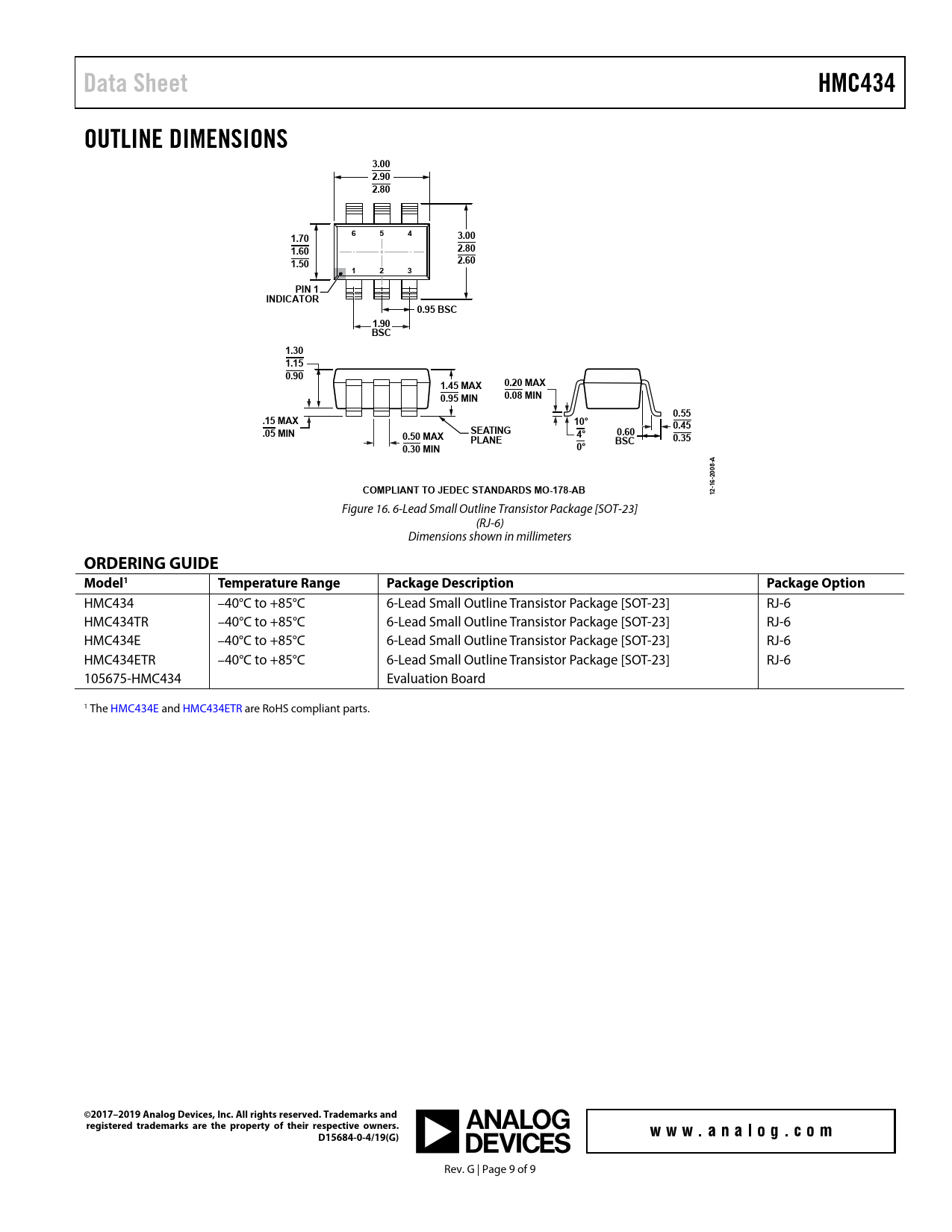

Figure 16. 6-Lead Small Outline Transistor Package [SOT-23] (RJ-6) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option
HMC434 –40°C to +85°C 6-Lead Small Outline Transistor Package [SOT-23] RJ-6 HMC434TR –40°C to +85°C 6-Lead Small Outline Transistor Package [SOT-23] RJ-6 HMC434E –40°C to +85°C 6-Lead Small Outline Transistor Package [SOT-23] RJ-6 HMC434ETR –40°C to +85°C 6-Lead Small Outline Transistor Package [SOT-23] RJ-6 105675-HMC434 Evaluation Board 1 The HMC434E and HMC434ETR are RoHS compliant parts.
