Datasheet HMC434 (Analog Devices) - 8
| Hersteller | Analog Devices |
| Beschreibung | 0.2 GHz to 8 GHz, GaAs, HBT MMIC, Divide by 8 Prescaler |
| Seiten / Seite | 9 / 8 — HMC434. Data Sheet. PCB MATERIAL STACKUP. 0.5oz (18µm) FINISHED COPPER. … |
| Revision | G |
| Dateiformat / Größe | PDF / 348 Kb |
| Dokumentensprache | Englisch |
HMC434. Data Sheet. PCB MATERIAL STACKUP. 0.5oz (18µm) FINISHED COPPER. ARLON 25FR OR ROGERS RO4350B. LAMINATE 0.010"
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 8

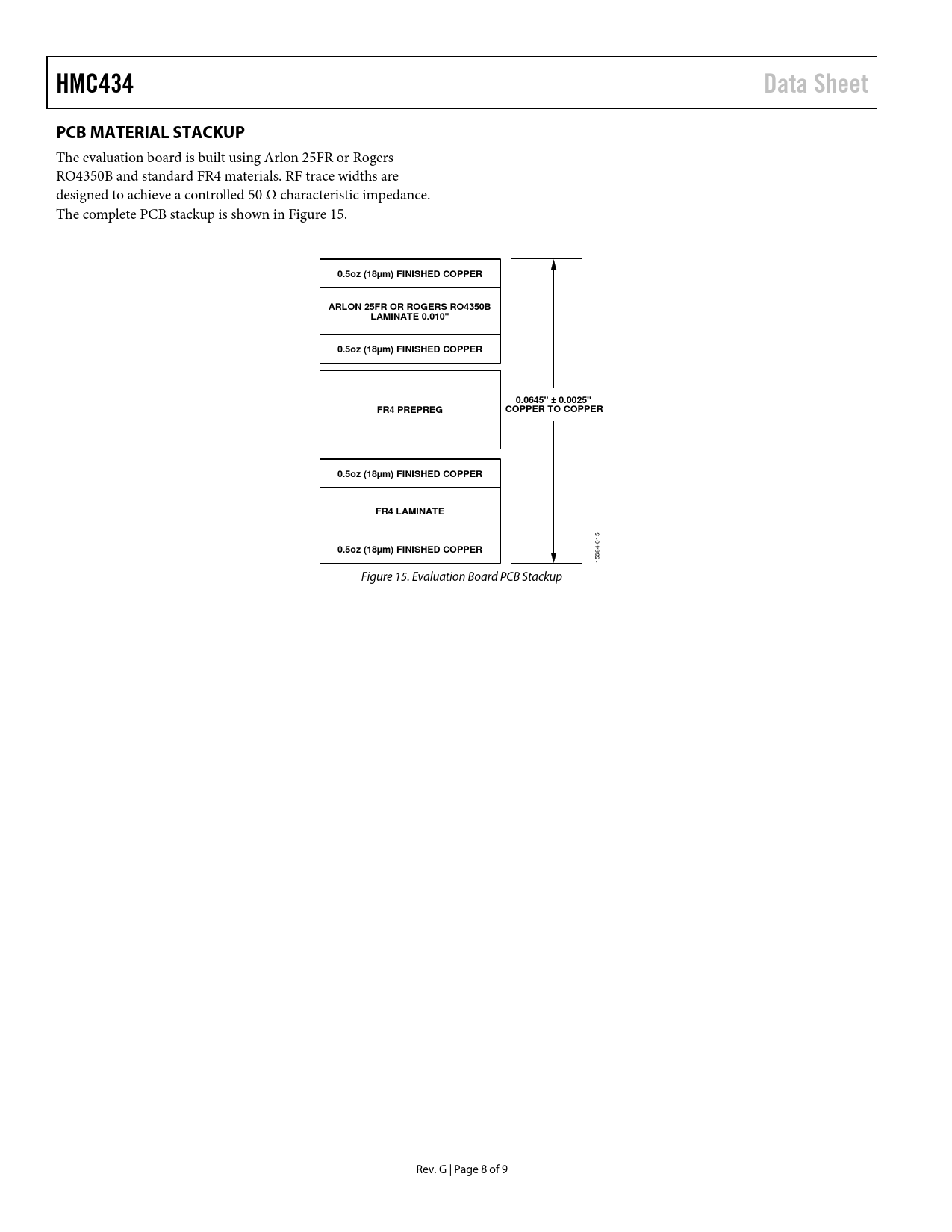

HMC434 Data Sheet PCB MATERIAL STACKUP
The evaluation board is built using Arlon 25FR or Rogers RO4350B and standard FR4 materials. RF trace widths are designed to achieve a control ed 50 Ω characteristic impedance. The complete PCB stackup is shown in Figure 15.
0.5oz (18µm) FINISHED COPPER ARLON 25FR OR ROGERS RO4350B LAMINATE 0.010" 0.5oz (18µm) FINISHED COPPER 0.0645" ± 0.0025" FR4 PREPREG COPPER TO COPPER 0.5oz (18µm) FINISHED COPPER FR4 LAMINATE
015
0.5oz (18µm) FINISHED COPPER
15684- Figure 15. Evaluation Board PCB Stackup Rev. G | Page 8 of 9 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Applications Information Evaluation Board PCB PCB Material Stackup Outline Dimensions Ordering Guide
