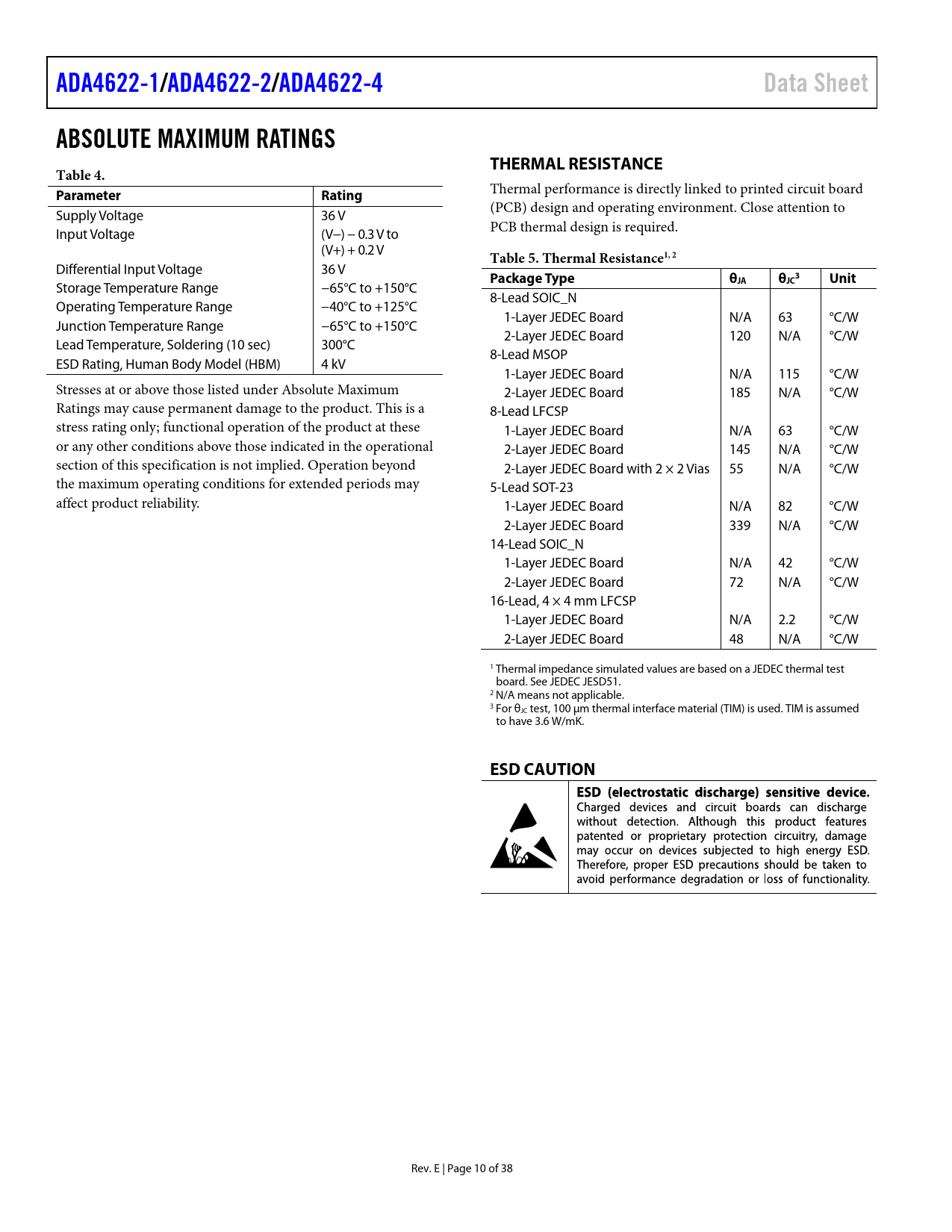

ADA4622-1/. ADA4622-2/. ADA4622-4. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 4. Parameter. Rating
Modelllinie für dieses Datenblatt
- ADA4622-1ARJZ-R2 ADA4622-1ARJZ-R7 ADA4622-1ARJZ-RL ADA4622-1ARZ ADA4622-1ARZ-R7 ADA4622-1ARZ-RL ADA4622-1BRZ ADA4622-1BRZ-R7 ADA4622-1BRZ-RL
Textversion des Dokuments
ADA4622-1/ ADA4622-2/ ADA4622-4 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 4. Parameter Rating
Thermal performance is directly linked to printed circuit board Supply Voltage 36 V (PCB) design and operating environment. Close attention to Input Voltage (V−) − 0.3 V to PCB thermal design is required. (V+) + 0.2 V
Table 5. Thermal Resistance1, 2
Differential Input Voltage 36 V
Package Type θ 3 Unit
Storage Temperature Range −65°C to +150°C
JA θJC
8-Lead SOIC_N Operating Temperature Range −40°C to +125°C 1-Layer JEDEC Board N/A 63 °C/W Junction Temperature Range −65°C to +150°C 2-Layer JEDEC Board 120 N/A °C/W Lead Temperature, Soldering (10 sec) 300°C 8-Lead MSOP ESD Rating, Human Body Model (HBM) 4 kV 1-Layer JEDEC Board N/A 115 °C/W Stresses at or above those listed under Absolute Maximum 2-Layer JEDEC Board 185 N/A °C/W Ratings may cause permanent damage to the product. This is a 8-Lead LFCSP stress rating only; functional operation of the product at these 1-Layer JEDEC Board N/A 63 °C/W or any other conditions above those indicated in the operational 2-Layer JEDEC Board 145 N/A °C/W section of this specification is not implied. Operation beyond 2-Layer JEDEC Board with 2 × 2 Vias 55 N/A °C/W the maximum operating conditions for extended periods may 5-Lead SOT-23 affect product reliability. 1-Layer JEDEC Board N/A 82 °C/W 2-Layer JEDEC Board 339 N/A °C/W 14-Lead SOIC_N 1-Layer JEDEC Board N/A 42 °C/W 2-Layer JEDEC Board 72 N/A °C/W 16-Lead, 4 × 4 mm LFCSP 1-Layer JEDEC Board N/A 2.2 °C/W 2-Layer JEDEC Board 48 N/A °C/W 1 Thermal impedance simulated values are based on a JEDEC thermal test board. See JEDEC JESD51. 2 N/A means not applicable. 3 For θJC test, 100 μm thermal interface material (TIM) is used. TIM is assumed to have 3.6 W/mK.
