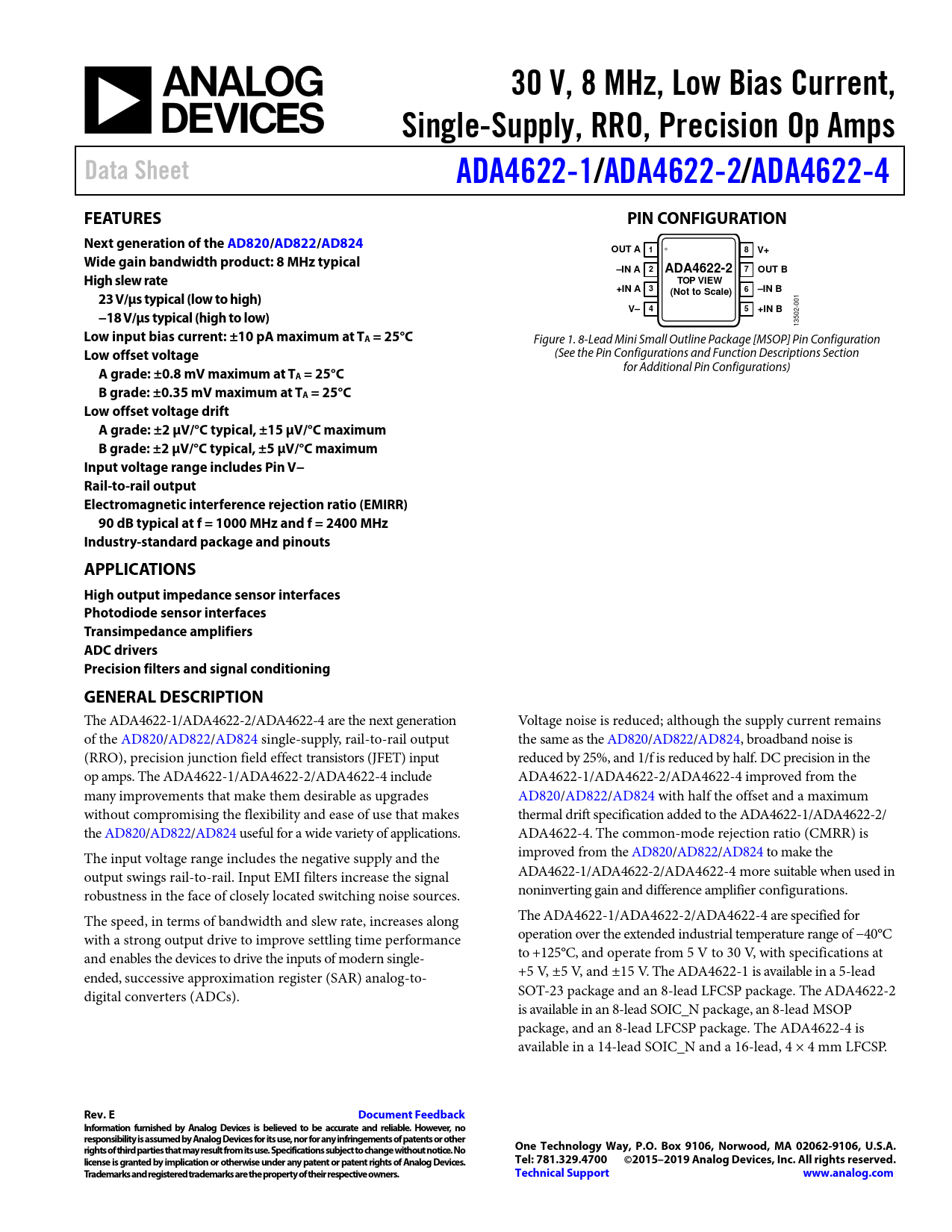

30 V, 8 MHz, Low Bias Current, Single-Supply, RRO, Precision Op Amps Data Sheet ADA4622-1 /ADA4622-2/ ADA4622-4 FEATURES PIN CONFIGURATION Next generation of the AD820/ AD8 22/ AD824 OUT A 1 8 V+ Wide gain bandwidth product: 8 MHz typical –IN A 2 ADA4622-2 7 OUT B High slew rate TOP VIEW +IN A 3 6 –IN B 23 V/µs typical (low to high) (Not to Scale)
001
V– 4 5 +IN B −18 V/µs typical (high to low)
13502-
Low input bias current: ±10 pA maximum at TA = 25°C
Figure 1. 8-Lead Mini Small Outline Package [MSOP] Pin Configuration
Low offset voltage
(See the Pin Configurations and Function Descriptions Section
A grade: ±0.8 mV maximum at T
for Additional Pin Configurations)
A = 25°C B grade: ±0.35 mV maximum at TA = 25°C Low offset voltage drift A grade: ±2 µV/°C typical, ±15 µV/°C maximum B grade: ±2 µV/°C typical, ±5 µV/°C maximum Input voltage range includes Pin V− Rail-to-rail output Electromagnetic interference rejection ratio (EMIRR) 90 dB typical at f = 1000 MHz and f = 2400 MHz Industry-standard package and pinouts APPLICATIONS High output impedance sensor interfaces Photodiode sensor interfaces Transimpedance amplifiers ADC drivers Precision filters and signal conditioning GENERAL DESCRIPTION
The ADA4622-1/ADA4622-2/ADA4622-4 are the next generation Voltage noise is reduced; although the supply current remains of the AD820/AD822/AD824 single-supply, rail-to-rail output the same as the AD820/AD822/AD824, broadband noise is (RRO), precision junction field effect transistors (JFET) input reduced by 25%, and 1/f is reduced by half. DC precision in the op amps. The ADA4622-1/ADA4622-2/ADA4622-4 include ADA4622-1/ADA4622-2/ADA4622-4 improved from the many improvements that make them desirable as upgrades AD820/AD822/AD824 with half the offset and a maximum without compromising the flexibility and ease of use that makes thermal drift specification added to the ADA4622-1/ADA4622-2/ the AD820/AD822/AD824 useful for a wide variety of applications. ADA4622-4. The common-mode rejection ratio (CMRR) is The input voltage range includes the negative supply and the improved from the AD820/AD822/AD824 to make the output swings rail-to-rail. Input EMI filters increase the signal ADA4622-1/ADA4622-2/ADA4622-4 more suitable when used in robustness in the face of closely located switching noise sources. noninverting gain and difference amplifier configurations. The speed, in terms of bandwidth and slew rate, increases along The ADA4622-1/ADA4622-2/ADA4622-4 are specified for with a strong output drive to improve settling time performance operation over the extended industrial temperature range of −40°C and enables the devices to drive the inputs of modern single- to +125°C, and operate from 5 V to 30 V, with specifications at ended, successive approximation register (SAR) analog-to- +5 V, ±5 V, and ±15 V. The ADA4622-1 is available in a 5-lead digital converters (ADCs). SOT-23 package and an 8-lead LFCSP package. The ADA4622-2 is available in an 8-lead SOIC_N package, an 8-lead MSOP package, and an 8-lead LFCSP package. The ADA4622-4 is available in a 14-lead SOIC_N and a 16-lead, 4 × 4 mm LFCSP.
Rev. E Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2015–2019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Pin Configuration General Description Table of Contents Revision History Specifications Electrical Characteristics, VSY = ±15 V Electrical Characteristics, VSY = ±5 V Electrical Characteristics, VSY = 5 V Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory Of Operation Input Characteristics Input Overvoltage Protection EMI Rejection Ratio Output Characteristics Capacitive Load Drive Capability Shutdown Operation Applications Information Recommended Power Solution Maximum Power Dissipation Second-Order Low-Pass Filter Wideband Photodiode Preamplifier Peak Detector Multiplexing Inputs Full Wave Rectifier Outline Dimensions Ordering Guide
