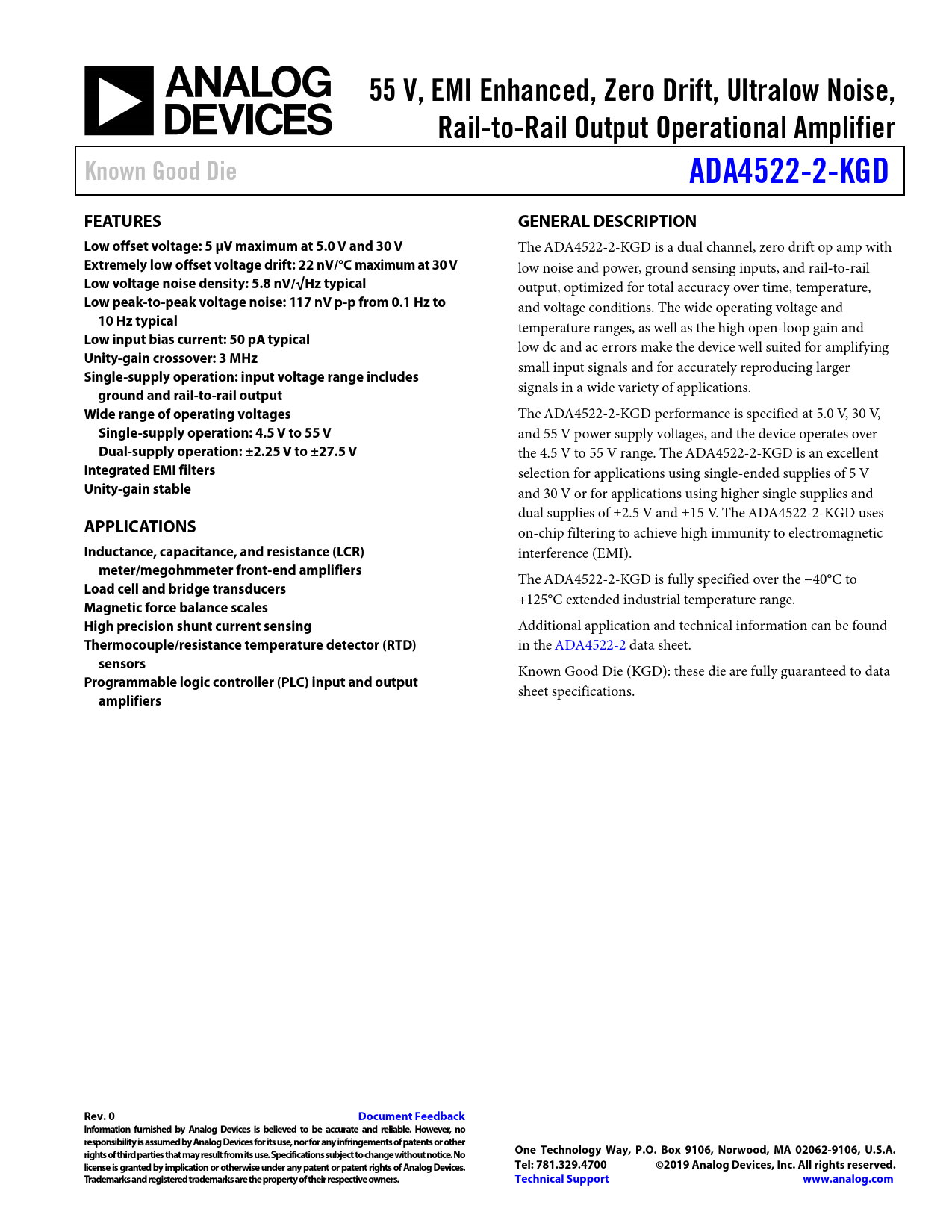

55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifier Known Good Die ADA4522-2-KGD FEATURES GENERAL DESCRIPTION Low offset voltage: 5 μV maximum at 5.0 V and 30 V
The ADA4522-2-KGD is a dual channel, zero drift op amp with
Extremely low offset voltage drift: 22 nV/°C maximum at 30 V
low noise and power, ground sensing inputs, and rail
-
to-rail
Low voltage noise density: 5.8 nV/√Hz typical
output, optimized for total accuracy over time, temperature,
Low peak-to-peak voltage noise: 117 nV p-p from 0.1 Hz to
and voltage conditions. The wide operating voltage and
10 Hz typical
temperature ranges, as well as the high open-loop gain and
Low input bias current: 50 pA typical
low dc and ac errors make the device well suited for amplifying
Unity-gain crossover: 3 MHz
small input signals and for accurately reproducing larger
Single-supply operation: input voltage range includes
signals in a wide variety of applications.
ground and rail-to-rail output Wide range of operating voltages
The ADA4522-2-KGD performance is specified at 5.0 V, 30 V,
Single-supply operation: 4.5 V to 55 V
and 55 V power supply voltages, and the device operates over
Dual-supply operation: ±2.25 V to ±27.5 V
the 4.5 V to 55 V range. The ADA4522-2-KGD is an excellent
Integrated EMI filters
selection for applications using single-ended supplies of 5 V
Unity-gain stable
and 30 V or for applications using higher single supplies and dual supplies of ±2.5 V and ±15 V. The ADA4522-2-KGD uses
APPLICATIONS
on-chip filtering to achieve high immunity to electromagnetic
Inductance, capacitance, and resistance (LCR)
interference (EMI).
meter/megohmmeter front-end amplifiers
The ADA4522-2-KGD is fully specified over the −40°C to
Load cell and bridge transducers
+125°C extended industrial temperature range.
Magnetic force balance scales High precision shunt current sensing
Additional application and technical information can be found
Thermocouple/resistance temperature detector (RTD)
in the ADA4522-2 data sheet.
sensors
Known Good Die (KGD): these die are fully guaranteed to data
Programmable logic controller (PLC) input and output
sheet specifications.
