Beschreibung55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifier
Seiten / Seite10 / 5 — Known Good Die. ADA4522-2-KGD. Parameter Symbol. Test. …
Dateiformat / GrößePDF / 240 Kb
DokumentenspracheEnglisch

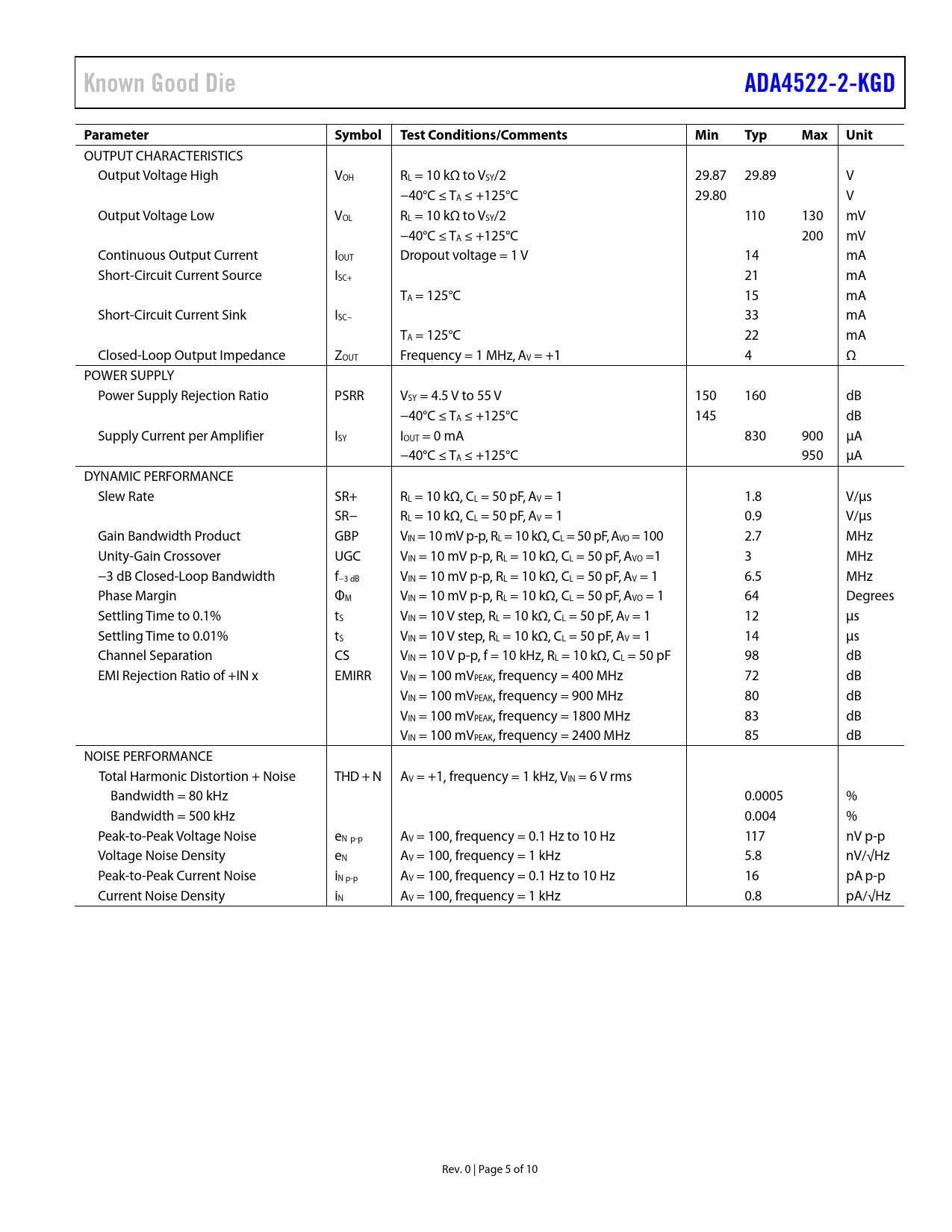

Known Good Die. ADA4522-2-KGD. Parameter Symbol. Test. Conditions/Comments. Min. Typ. Max. Unit

Known Good Die ADA4522-2-KGD Parameter Symbol Test Conditions/Comments Min Typ Max Unit

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Known Good Die ADA4522-2-KGD Parameter Symbol Test Conditions/Comments Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 10 kΩ to VSY/2 29.87 29.89 V −40°C ≤ TA ≤ +125°C 29.80 V Output Voltage Low VOL RL = 10 kΩ to VSY/2 110 130 mV −40°C ≤ TA ≤ +125°C 200 mV Continuous Output Current IOUT Dropout voltage = 1 V 14 mA Short-Circuit Current Source ISC+ 21 mA TA = 125°C 15 mA Short-Circuit Current Sink ISC− 33 mA TA = 125°C 22 mA Closed-Loop Output Impedance ZOUT Frequency = 1 MHz, AV = +1 4 Ω POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = 4.5 V to 55 V 150 160 dB −40°C ≤ TA ≤ +125°C 145 dB Supply Current per Amplifier ISY IOUT = 0 mA 830 900 μA −40°C ≤ TA ≤ +125°C 950 μA DYNAMIC PERFORMANCE Slew Rate SR+ RL = 10 kΩ, CL = 50 pF, AV = 1 1.8 V/μs SR− RL = 10 kΩ, CL = 50 pF, AV = 1 0.9 V/μs Gain Bandwidth Product GBP VIN = 10 mV p-p, RL = 10 kΩ, CL = 50 pF, AVO = 100 2.7 MHz Unity-Gain Crossover UGC VIN = 10 mV p-p, RL = 10 kΩ, CL = 50 pF, AVO =1 3 MHz −3 dB Closed-Loop Bandwidth f−3 dB VIN = 10 mV p-p, RL = 10 kΩ, CL = 50 pF, AV = 1 6.5 MHz Phase Margin ΦM VIN = 10 mV p-p, RL = 10 kΩ, CL = 50 pF, AVO = 1 64 Degrees Settling Time to 0.1% tS VIN = 10 V step, RL = 10 kΩ, CL = 50 pF, AV = 1 12 μs Settling Time to 0.01% tS VIN = 10 V step, RL = 10 kΩ, CL = 50 pF, AV = 1 14 μs Channel Separation CS VIN = 10 V p-p, f = 10 kHz, RL = 10 kΩ, CL = 50 pF 98 dB EMI Rejection Ratio of +IN x EMIRR VIN = 100 mVPEAK, frequency = 400 MHz 72 dB VIN = 100 mVPEAK, frequency = 900 MHz 80 dB VIN = 100 mVPEAK, frequency = 1800 MHz 83 dB VIN = 100 mVPEAK, frequency = 2400 MHz 85 dB NOISE PERFORMANCE Total Harmonic Distortion + Noise THD + N AV = +1, frequency = 1 kHz, VIN = 6 V rms Bandwidth = 80 kHz 0.0005 % Bandwidth = 500 kHz 0.004 % Peak-to-Peak Voltage Noise eN p-p AV = 100, frequency = 0.1 Hz to 10 Hz 117 nV p-p Voltage Noise Density eN AV = 100, frequency = 1 kHz 5.8 nV/√Hz Peak-to-Peak Current Noise iN p-p AV = 100, frequency = 0.1 Hz to 10 Hz 16 pA p-p Current Noise Density iN AV = 100, frequency = 1 kHz 0.8 pA/√Hz Rev. 0 | Page 5 of 10 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5.0 V OPERATION ELECTRICAL CHARACTERISTICS—30 V OPERATION ELECTRICAL CHARACTERISTICS—55 V OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
