Datasheet TPD7107F (Toshiba) - 3
| Hersteller | Toshiba |
| Beschreibung | Intelligent Power Device Silicon Power MOS Integrated Circuit |
| Seiten / Seite | 34 / 3 — TPD7107F. 5. Pin Assignments. Figure 5.1 Pin Assignments (top view). 6. … |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
TPD7107F. 5. Pin Assignments. Figure 5.1 Pin Assignments (top view). 6. Pin Description. Table 6.1 Pin Description. Pin No. Symbol
Modelllinie für dieses Datenblatt
Textversion des Dokuments

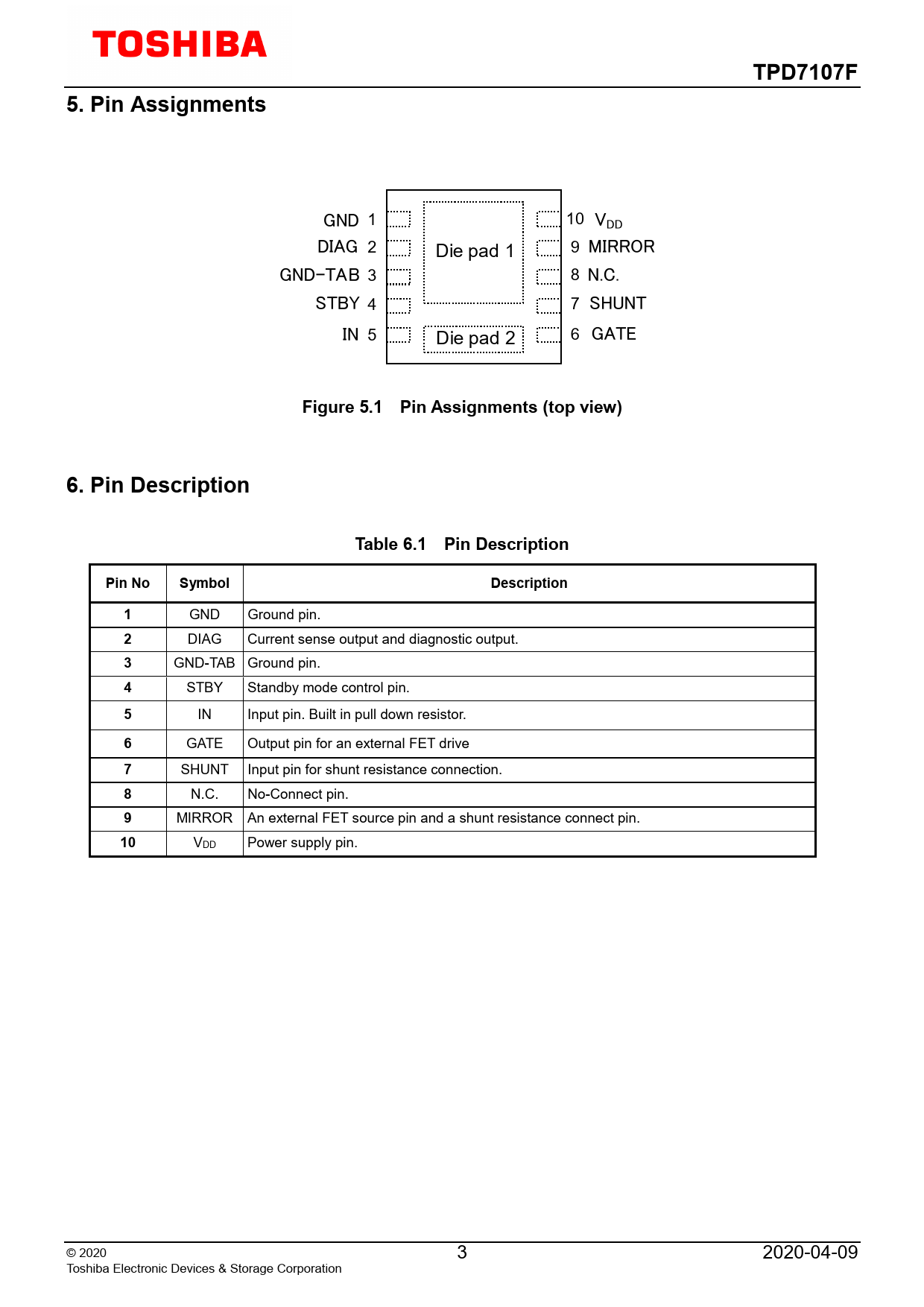

TPD7107F 5. Pin Assignments
GND 1 10 VDD DIAG 2 9 MIRROR Die pad 1 GND-TAB 3 8 N.C. STBY 4 7 SHUNT IN 5 6 GATE Die pad 2
Figure 5.1 Pin Assignments (top view) 6. Pin Description Table 6.1 Pin Description Pin No Symbol Description 1
GND Ground pin.
2
DIAG Current sense output and diagnostic output.
3
GND-TAB Ground pin.
4
STBY Standby mode control pin.
5
IN Input pin. Built in pul down resistor.
6
GATE Output pin for an external FET drive
7
SHUNT Input pin for shunt resistance connection.
8
N.C. No-Connect pin.
9
MIRROR An external FET source pin and a shunt resistance connect pin.
10
VDD Power supply pin. © 2 020 3 2020-04-09 Toshiba Electronic Devices & Storage Corporation Document Outline 1. Description 2. Uses 3. Features 4. Block Diagram 5. Pin Assignments 6. Pin Description 7. Operational Description 7.1. Protection for reverse connection of power supply 7.2. Active clamp 7.3. Gate drive of Power MOSFET (Off driver) 7.3.1. Normal off, rapid off 7.3.2. Protection for disconnection of GND terminal 7.4. Load current sense at time of Power MOSFET drive 7.5. The abnormalities in power supply voltage (VDD over voltage, VDD under voltage) 7.6. Over current protection 7.7. Over temperature protection. 7.8. Abnormalities in voltage between Drain and source of the external FET (VDS error) 7.9. Load open / VDD short of load line and diagnosis output 7.10. Truth Table 7.11. State Transition Diagram 8. Absolute Maximum Ratings 8.1. Thermal Resistance 9. Operating Ranges 10. Electrical Characteristics 10.1. Electrical characteristics 1 10.2. Electrical characteristics 2 10.3. Current sense amp Electrical Characteristics 11. Test Circuit 11.1. Test circuit 1 High level output voltage (3) 11.2. Test circuit 2 Switching time (Td-ON, Td-OFF, Tr, Tf) 11.3. Test circuit 3 Off impedance at GND open 11.4. Test circuit 4 Input offset voltage 12. Characteristic curves 13. Package Information 13.1. Package Dimensions 13.2. Marking 13.3. Land Pattern Dimensions for Reference only 14. IC Usage Notes 14.1. Notes on Handling of ICs 14.2. Notes on mounting. RESTRICTIONS ON PRODUCT USE
