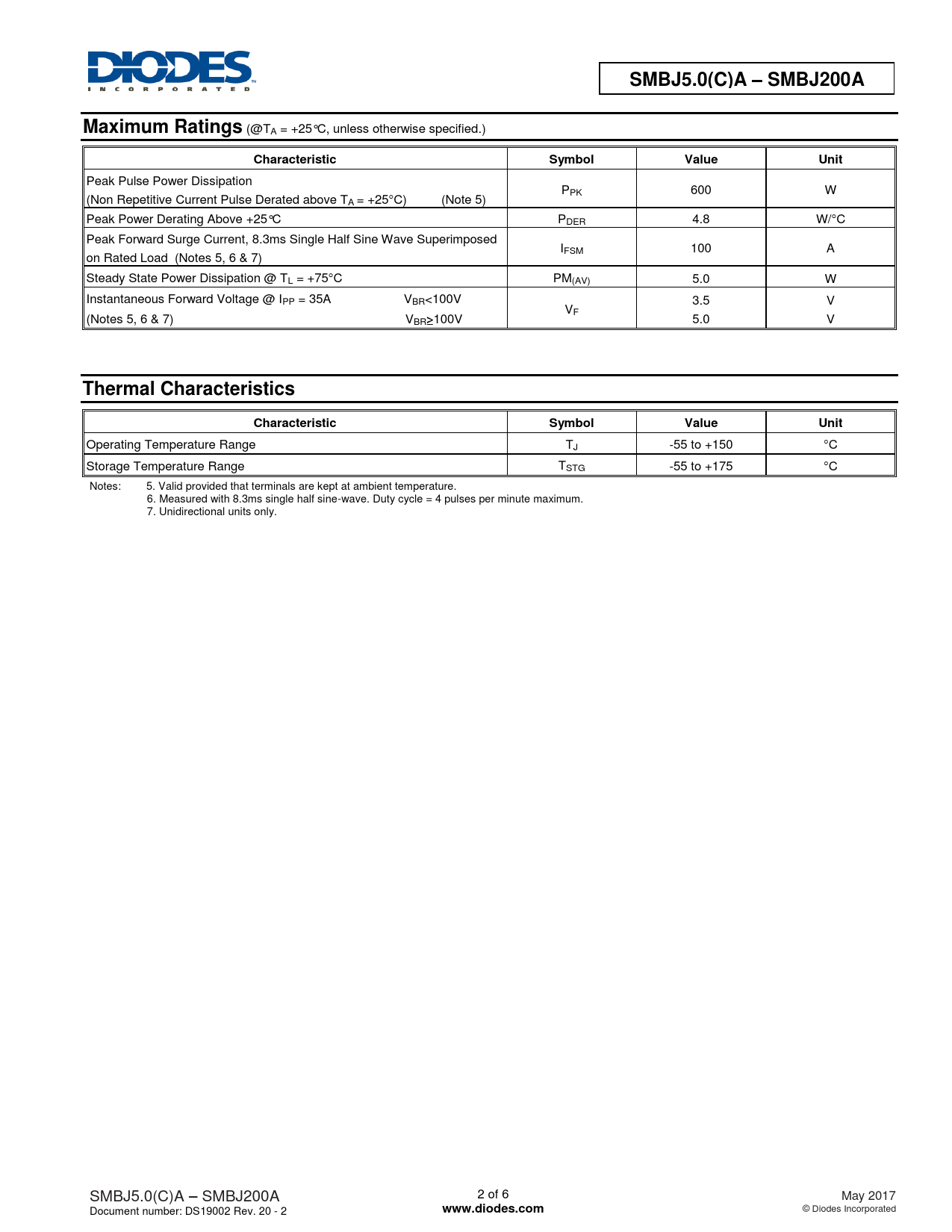

Datasheet SMBJ5.0(C)A – SMBJ200A (Diodes) - 2

SMBJ5.0(C)A – SMBJ200A Maximum Ratings
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Peak Pulse Power Dissipation PPK 600 W (Non Repetitive Current Pulse Derated above TA = +25C) (Note 5) Peak Power Derating Above +25°C PDER 4.8 W/C Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed IFSM 100 A on Rated Load (Notes 5, 6 & 7) Steady State Power Dissipation @ TL = +75C PM(AV) 5.0 W Instantaneous Forward Voltage @ IPP = 35A VBR<100V 3.5 V VF (Notes 5, 6 & 7) VBR≥100V 5.0 V
Thermal Characteristics Characteristic Symbol Value Unit
Operating Temperature Range TJ -55 to +150 C Storage Temperature Range TSTG -55 to +175 C Notes: 5. Valid provided that terminals are kept at ambient temperature. 6. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum. 7. Unidirectional units only. SMBJ5.0(C)A – SMBJ200A 2 of 6 May 2017 Document number: DS19002 Rev. 20 - 2
www.diodes.com
© Diodes Incorporated
