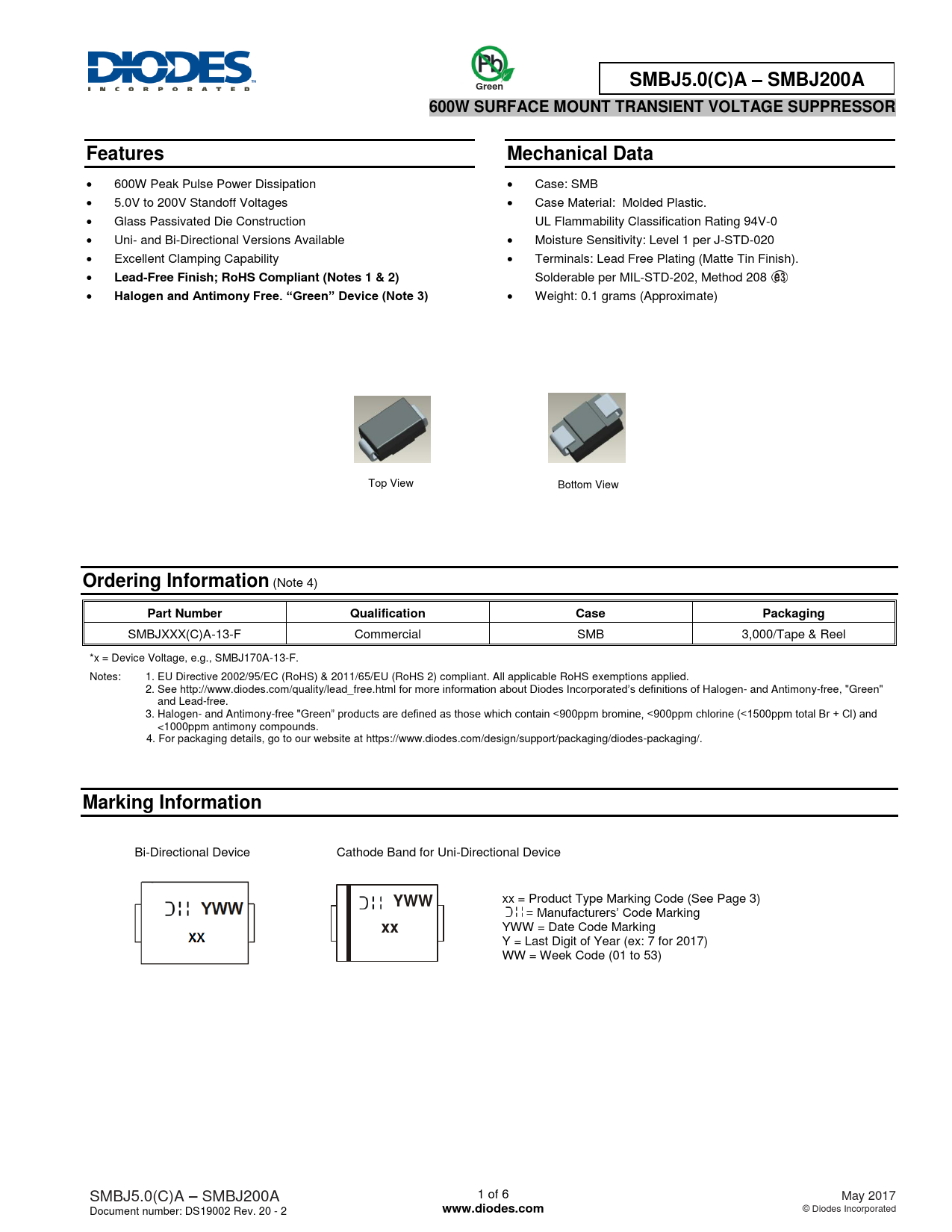

Green SMBJ5.0(C)A – SMBJ200A 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Features Mechanical Data
600W Peak Pulse Power Dissipation Case: SMB 5.0V to 200V Standoff Voltages Case Material: Molded Plastic. Glass Passivated Die Construction UL Flammability Classification Rating 94V-0 Uni- and Bi-Directional Versions Available Moisture Sensitivity: Level 1 per J-STD-020 Excellent Clamping Capability Terminals: Lead Free Plating (Matte Tin Finish).
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Solderable per MIL-STD-202, Method 208
Halogen and Antimony Free. “Green” Device (Note 3)
Weight: 0.1 grams (Approximate) Top View Bottom View
Ordering Information
(Note 4)
Part Number Qualification Case Packaging
SMBJXXX(C)A-13-F Commercial SMB 3,000/Tape & Reel *x = Device Voltage, e.g., SMBJ170A-13-F. Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
Bi-Directional Device Cathode Band for Uni-Directional Device xx = Product Type Marking Code (See Page 3)
YWW
= Manufacturers’ Code Marking
xx
YWW = Date Code Marking Y = Last Digit of Year (ex: 7 for 2017) WW = Week Code (01 to 53) SMBJ5.0(C)A – SMBJ200A 1 of 6 May 2017 Document number: DS19002 Rev. 20 - 2
