2-WIRE SERIAL E2PROM WITH TEMPERATURE SENSOR. S-34TS04L. DC Electrical Characteristics. Table 6

2-WIRE SERIAL E2PROM WITH TEMPERATURE SENSOR S-34TS04L DC Electrical Characteristics Table 6

Modelllinie für dieses Datenblatt

Textversion des Dokuments

2-WIRE SERIAL E2PROM WITH TEMPERATURE SENSOR
Rev.1.0_00_U

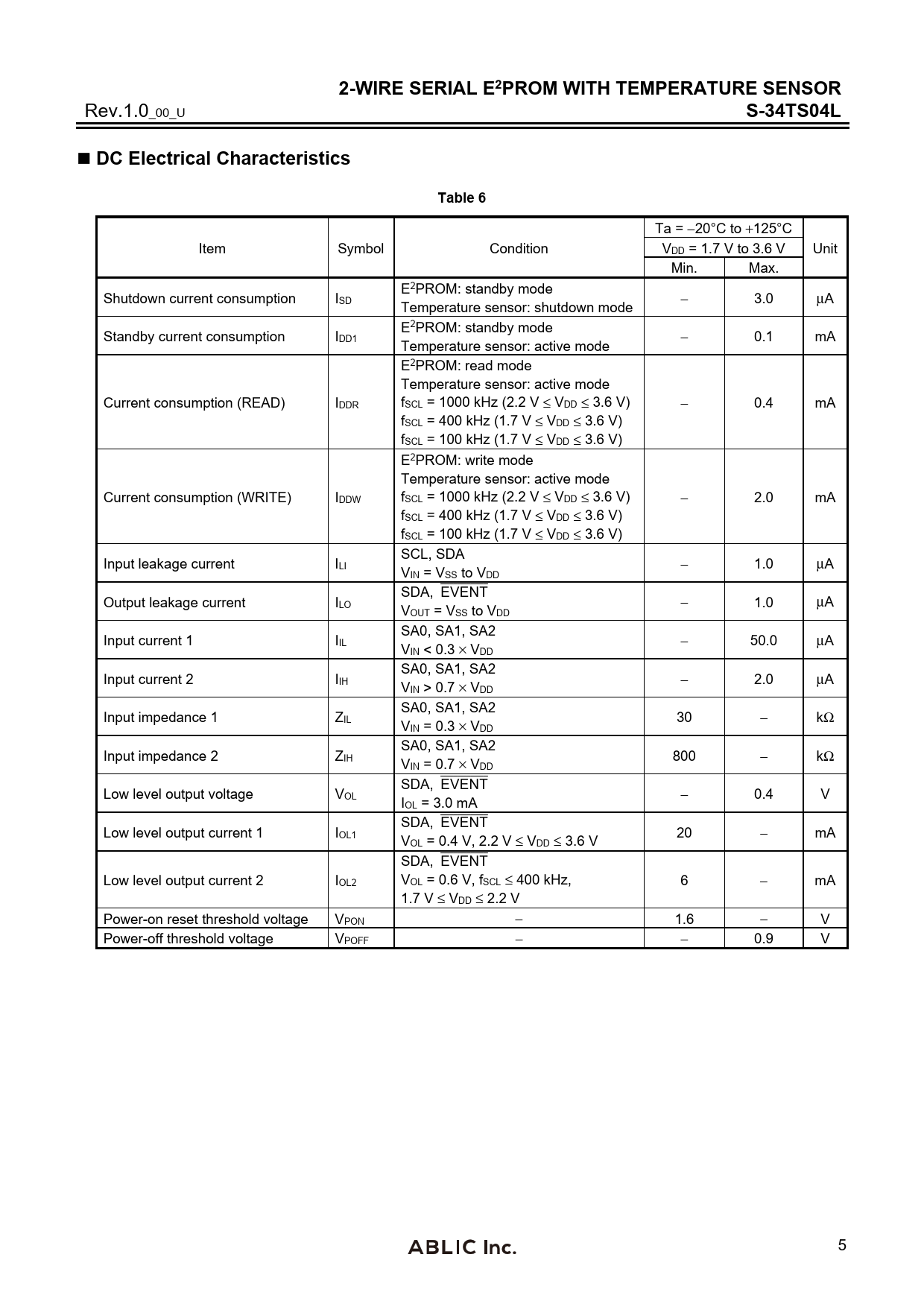

S-34TS04L DC Electrical Characteristics Table 6
Ta = −20°C to +125°C Item Symbol Condition VDD = 1.7 V to 3.6 V Unit Min. Max. E2PROM: standby mode Shutdown current consumption ISD − 3.0 μA Temperature sensor: shutdown mode E2PROM: standby mode Standby current consumption IDD1 − 0.1 mA Temperature sensor: active mode E2PROM: read mode Temperature sensor: active mode Current consumption (READ) IDDR fSCL = 1000 kHz (2.2 V ≤ VDD ≤ 3.6 V) − 0.4 mA fSCL = 400 kHz (1.7 V ≤ VDD ≤ 3.6 V) fSCL = 100 kHz (1.7 V ≤ VDD ≤ 3.6 V) E2PROM: write mode Temperature sensor: active mode Current consumption (WRITE) IDDW fSCL = 1000 kHz (2.2 V ≤ VDD ≤ 3.6 V) − 2.0 mA fSCL = 400 kHz (1.7 V ≤ VDD ≤ 3.6 V) fSCL = 100 kHz (1.7 V ≤ VDD ≤ 3.6 V) SCL, SDA Input leakage current ILI − 1.0 μA VIN = VSS to VDD ___________ SDA, EVENT Output leakage current ILO − 1.0 μA VOUT = VSS to VDD SA0, SA1, SA2 Input current 1 IIL − 50.0 μA VIN < 0.3 × VDD SA0, SA1, SA2 Input current 2 IIH − 2.0 μA VIN > 0.7 × VDD SA0, SA1, SA2 Input impedance 1 ZIL 30 − kΩ VIN = 0.3 × VDD SA0, SA1, SA2 Input impedance 2 ZIH 800 − kΩ VIN = 0.7 × VDD ___________ SDA, EVENT Low level output voltage VOL − 0.4 V IOL = 3.0 mA ___________ SDA, EVENT Low level output current 1 IOL1 20 − mA VOL = 0.4 V, 2.2 V ≤ VDD ≤ 3.6 V ___________ SDA, EVENT Low level output current 2 IOL2 VOL = 0.6 V, fSCL ≤ 400 kHz, 6 − mA 1.7 V ≤ VDD ≤ 2.2 V Power-on reset threshold voltage VPON − 1.6 − V Power-off threshold voltage VPOFF − − 0.9 V 5
