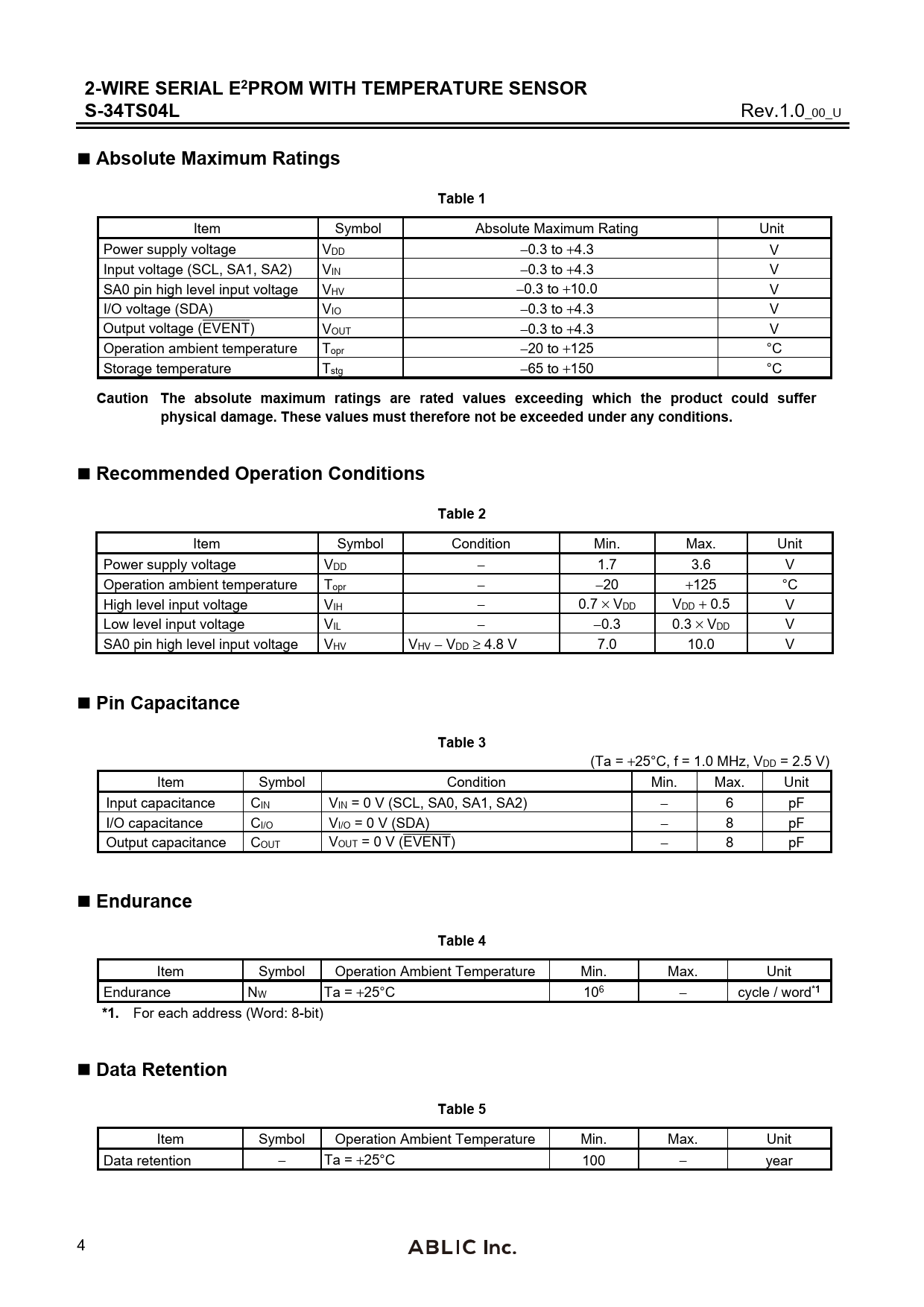

2-WIRE SERIAL E2PROM WITH TEMPERATURE SENSOR S-34TS04L
Rev.1.0_00_U
Absolute Maximum Ratings Table 1
Item Symbol Absolute Maximum Rating Unit Power supply voltage VDD −0.3 to +4.3 V Input voltage (SCL, SA1, SA2) VIN −0.3 to +4.3 V SA0 pin high level input voltage VHV −0.3 to +10.0 V I/O voltage (SDA) VIO −0.3 to +4.3 V ___________ Output voltage (EVENT) VOUT −0.3 to +4.3 V Operation ambient temperature Topr −20 to +125 °C Storage temperature Tstg −65 to +150 °C
Caution The absolute maximum ratings are rated values exceeding which the product could suffer physical damage. These values must therefore not be exceeded under any conditions. Recommended Operation Conditions Table 2
Item Symbol Condition Min. Max. Unit Power supply voltage VDD − 1.7 3.6 V Operation ambient temperature Topr − −20 +125 °C High level input voltage VIH − 0.7 × VDD VDD + 0.5 V Low level input voltage VIL − −0.3 0.3 × VDD V SA0 pin high level input voltage VHV VHV − VDD ≥ 4.8 V 7.0 10.0 V
Pin Capacitance Table 3
(Ta = +25°C, f = 1.0 MHz, VDD = 2.5 V) Item Symbol Condition Min. Max. Unit Input capacitance CIN VIN = 0 V (SCL, SA0, SA1, SA2) − 6 pF I/O capacitance CI/O VI/O = 0 V (SDA) − 8 pF ___________ Output capacitance COUT VOUT = 0 V (EVENT) − 8 pF
Endurance Table 4
Item Symbol Operation Ambient Temperature Min. Max. Unit Endurance NW Ta = +25°C 106 − cycle / word
*1 *1.
For each address (Word: 8-bit)
Data Retention Table 5
Item Symbol Operation Ambient Temperature Min. Max. Unit Data retention − Ta = +25°C 100 − year 4
