VOMA618A
www.vishay.com Vishay Semiconductors

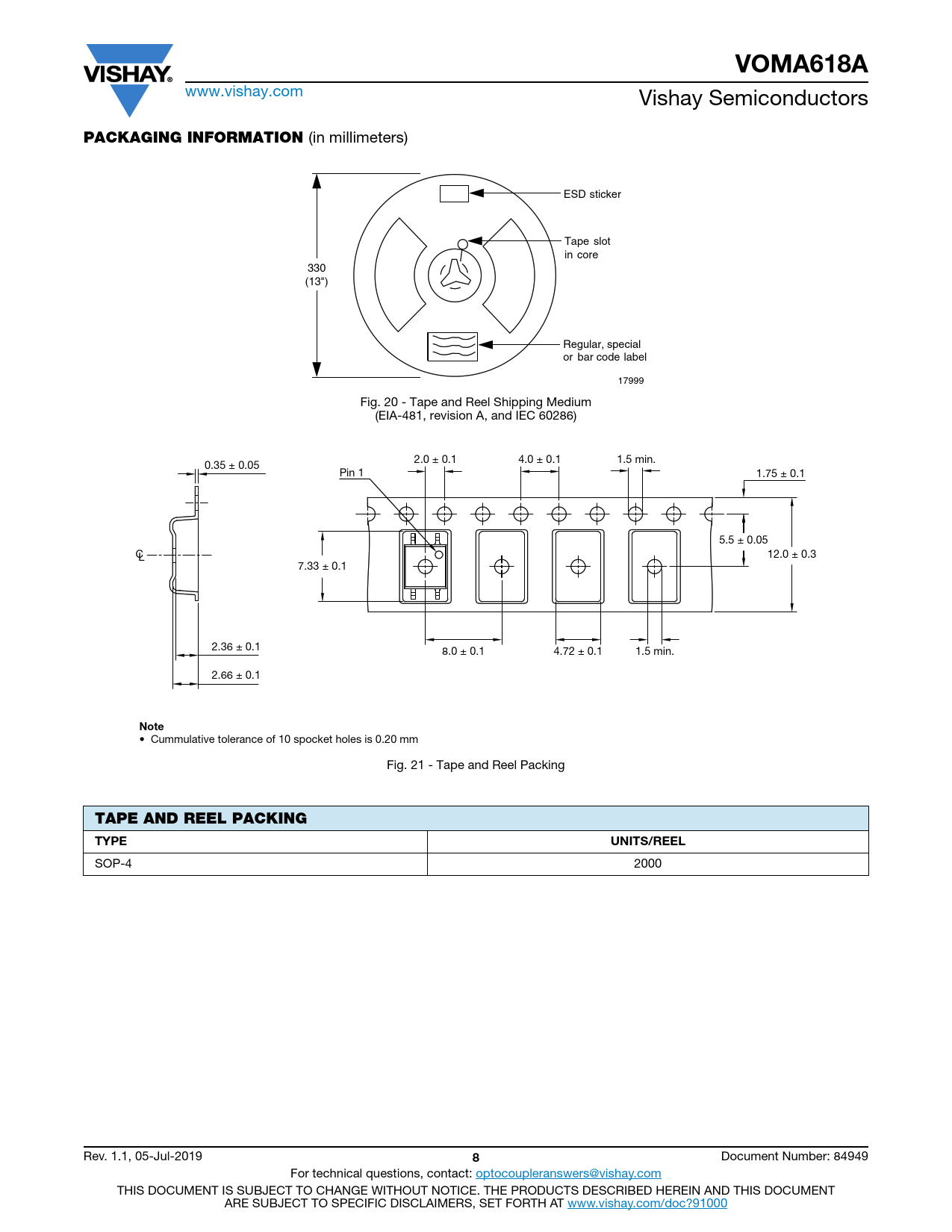

PACKAGING INFORMATION
(in millimeters) ESD sticker Tape slot in core 330 (13") Regular, special or bar code label 17999 Fig. 20 - Tape and Reel Shipping Medium (EIA-481, revision A, and IEC 60286) 2.0 ± 0.1 4.0 ± 0.1 1.5 min. 0.35 ± 0.05 Pin 1 1.75 ± 0.1 5.5 ± 0.05 C 12.0 ± 0.3 L 7.33 ± 0.1 2.36 ± 0.1 8.0 ± 0.1 4.72 ± 0.1 1.5 min. 2.66 ± 0.1
Note
• Cummulative tolerance of 10 spocket holes is 0.20 mm Fig. 21 - Tape and Reel Packing
TAPE AND REEL PACKING TYPE UNITS/REEL
SOP-4 2000 Rev. 1.1, 05-Jul-2019
