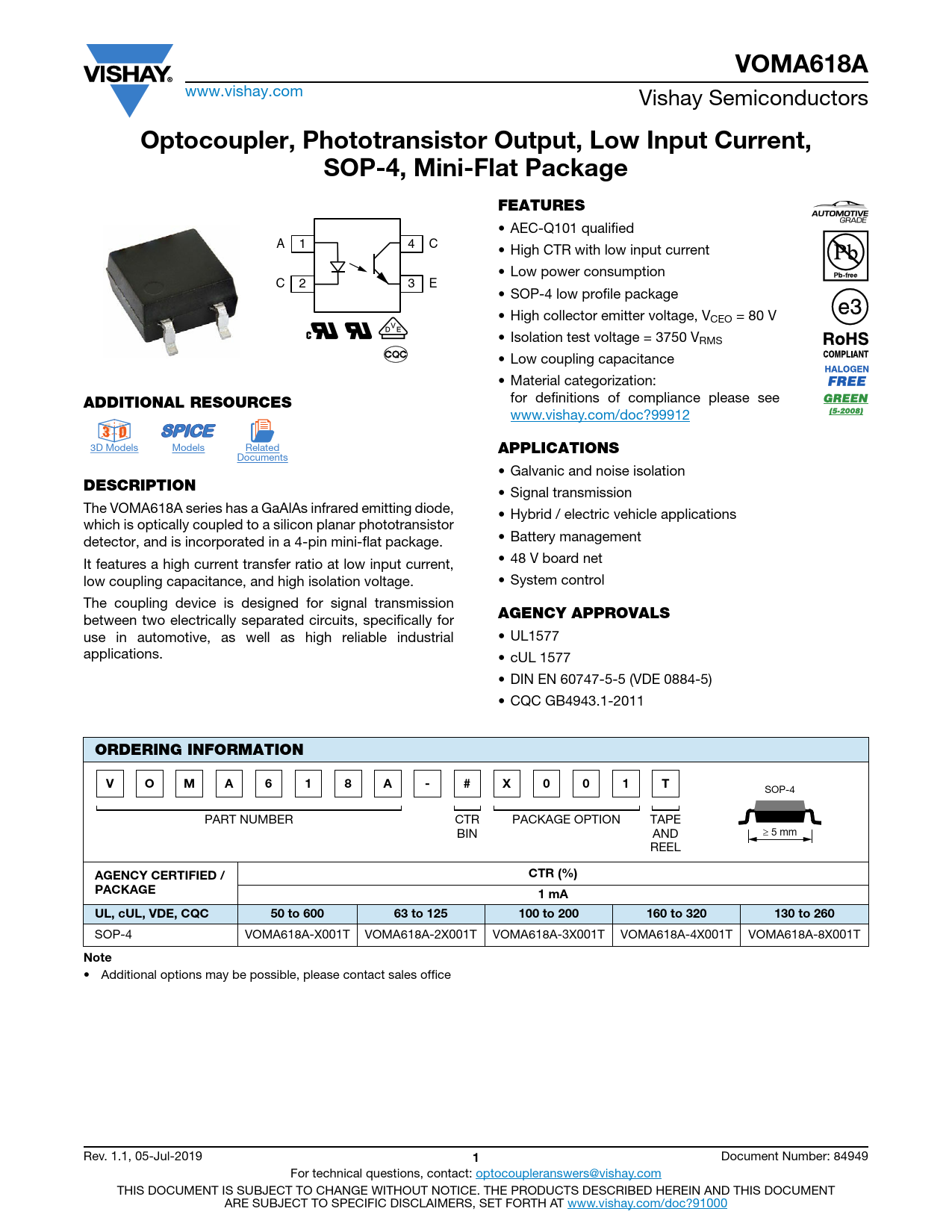

VOMA618A
www.vishay.com Vishay Semiconductors
Optocoupler, Phototransistor Output, Low Input Current, SOP-4, Mini-Flat Package FEATURES
• AEC-Q101 qualified A 1 4 C • High CTR with low input current • Low power consumption C 2 3 E • SOP-4 low profile package • High collector emitter voltage, VCEO = 80 V • Isolation test voltage = 3750 VRMS • Low coupling capacitance • Material categorization:
ADDITIONAL RESOURCES
for definitions of compliance please see www.vishay.com/doc?99912
D 3 3 D
3D Models Models Related
APPLICATIONS
Documents • Galvanic and noise isolation
DESCRIPTION
• Signal transmission The VOMA618A series has a GaAlAs infrared emitting diode, • Hybrid / electric vehicle applications which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a 4-pin mini-flat package. • Battery management It features a high current transfer ratio at low input current, • 48 V board net low coupling capacitance, and high isolation voltage. • System control The coupling device is designed for signal transmission
AGENCY APPROVALS
between two electrically separated circuits, specifically for use in automotive, as well as high reliable industrial • UL1577 applications. • cUL 1577 • DIN EN 60747-5-5 (VDE 0884-5) • CQC GB4943.1-2011
ORDERING INFORMATION V O M A 6 1 8 A - # X 0 0 1 T
SOP-4 PART NUMBER CTR PACKAGE OPTION TAPE BIN AND ≥ 5 mm REEL
AGENCY CERTIFIED / CTR (%) PACKAGE 1 mA UL, cUL, VDE, CQC 50 to 600 63 to 125 100 to 200 160 to 320 130 to 260
SOP-4 VOMA618A-X001T VOMA618A-2X001T VOMA618A-3X001T VOMA618A-4X001T VOMA618A-8X001T
Note
• Additional options may be possible, please contact sales office Rev. 1.1, 05-Jul-2019
