Datasheet VOMA618A (Vishay) - 3
| Hersteller | Vishay |
| Beschreibung | Optocoupler, Phototransistor Output, Low Input Current, SOP-4, Mini-Flat Package |
| Seiten / Seite | 10 / 3 — VOMA618A. ELECTRICAL CHARACTERISTICS. PARAMETER. TEST CONDITION. SYMBOL. … |
| Dateiformat / Größe | PDF / 236 Kb |
| Dokumentensprache | Englisch |

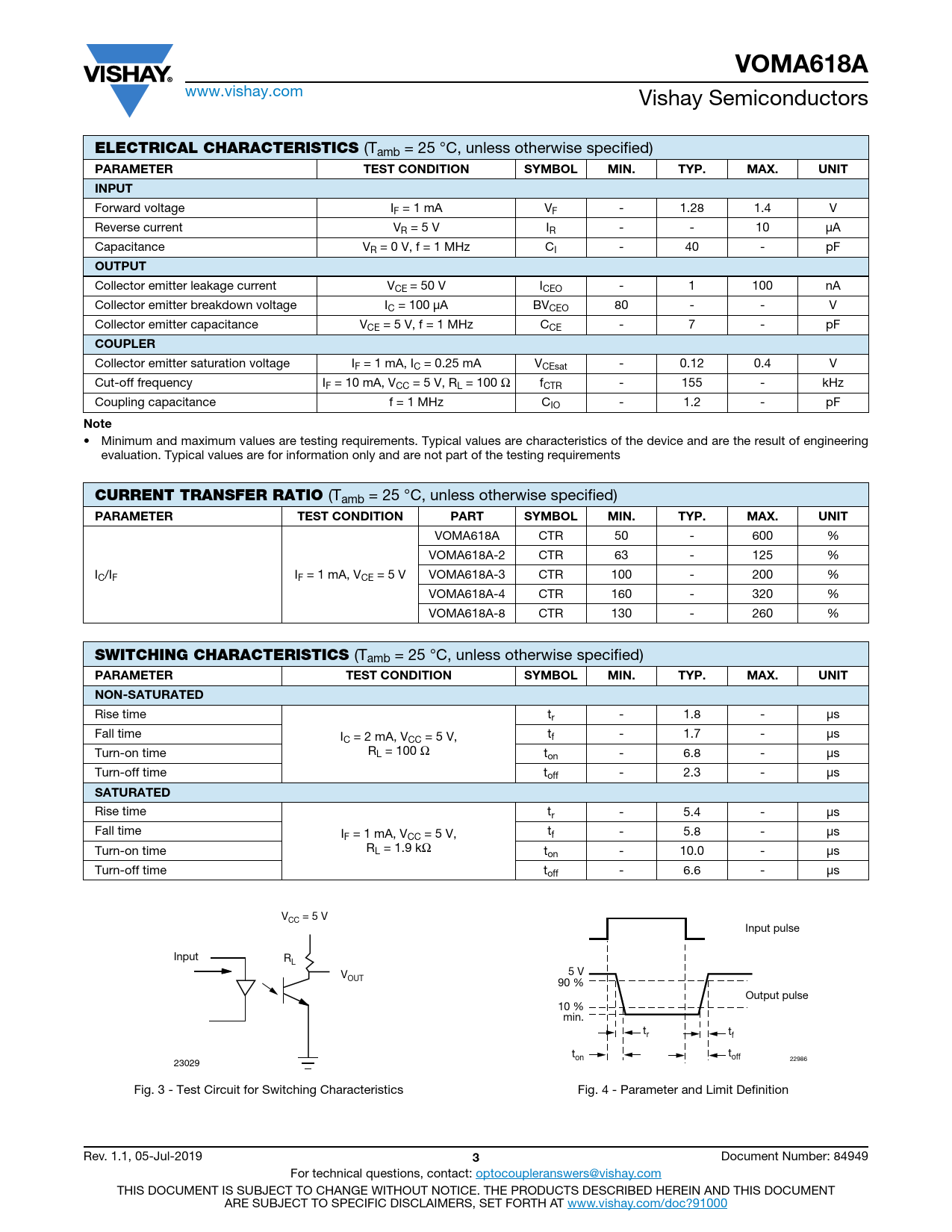

VOMA618A. ELECTRICAL CHARACTERISTICS. PARAMETER. TEST CONDITION. SYMBOL. MIN. TYP. MAX. UNIT. INPUT. OUTPUT. COUPLER. Note
Modelllinie für dieses Datenblatt
Textversion des Dokuments
VOMA618A
www.vishay.com Vishay Semiconductors
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT INPUT
Forward voltage IF = 1 mA VF - 1.28 1.4 V Reverse current VR = 5 V IR - - 10 μA Capacitance VR = 0 V, f = 1 MHz CI - 40 - pF
OUTPUT
Collector emitter leakage current VCE = 50 V ICEO - 1 100 nA Collector emitter breakdown voltage IC = 100 μA BVCEO 80 - - V Collector emitter capacitance VCE = 5 V, f = 1 MHz CCE - 7 - pF
COUPLER
Collector emitter saturation voltage IF = 1 mA, IC = 0.25 mA VCEsat - 0.12 0.4 V Cut-off frequency IF = 10 mA, VCC = 5 V, RL = 100 Ω fCTR - 155 - kHz Coupling capacitance f = 1 MHz CIO - 1.2 - pF
Note
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering evaluation. Typical values are for information only and are not part of the testing requirements
CURRENT TRANSFER RATIO
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
VOMA618A CTR 50 - 600 % VOMA618A-2 CTR 63 - 125 % IC/IF IF = 1 mA, VCE = 5 V VOMA618A-3 CTR 100 - 200 % VOMA618A-4 CTR 160 - 320 % VOMA618A-8 CTR 130 - 260 %
SWITCHING CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT NON-SATURATED
Rise time tr - 1.8 - μs Fall time I t C = 2 mA, VCC = 5 V, f - 1.7 - μs R Turn-on time L = 100 Ω ton - 6.8 - μs Turn-off time toff - 2.3 - μs
SATURATED
Rise time tr - 5.4 - μs Fall time I t F = 1 mA, VCC = 5 V, f - 5.8 - μs R Turn-on time L = 1.9 kΩ ton - 10.0 - μs Turn-off time toff - 6.6 - μs V = 5 V CC Input pulse Input RL V 5 V OUT 90 % Output pulse 10 % min. tr tf t t on off 23029 22986 Fig. 3 - Test Circuit for Switching Characteristics Fig. 4 - Parameter and Limit Definition Rev. 1.1, 05-Jul-2019
