Type PPC, -55 ºC to + 125 ºC, Ultra-Thin Polymer Aluminum Electrolytic Capacitor. Test Results
Modelllinie für dieses Datenblatt
Textversion des Dokuments

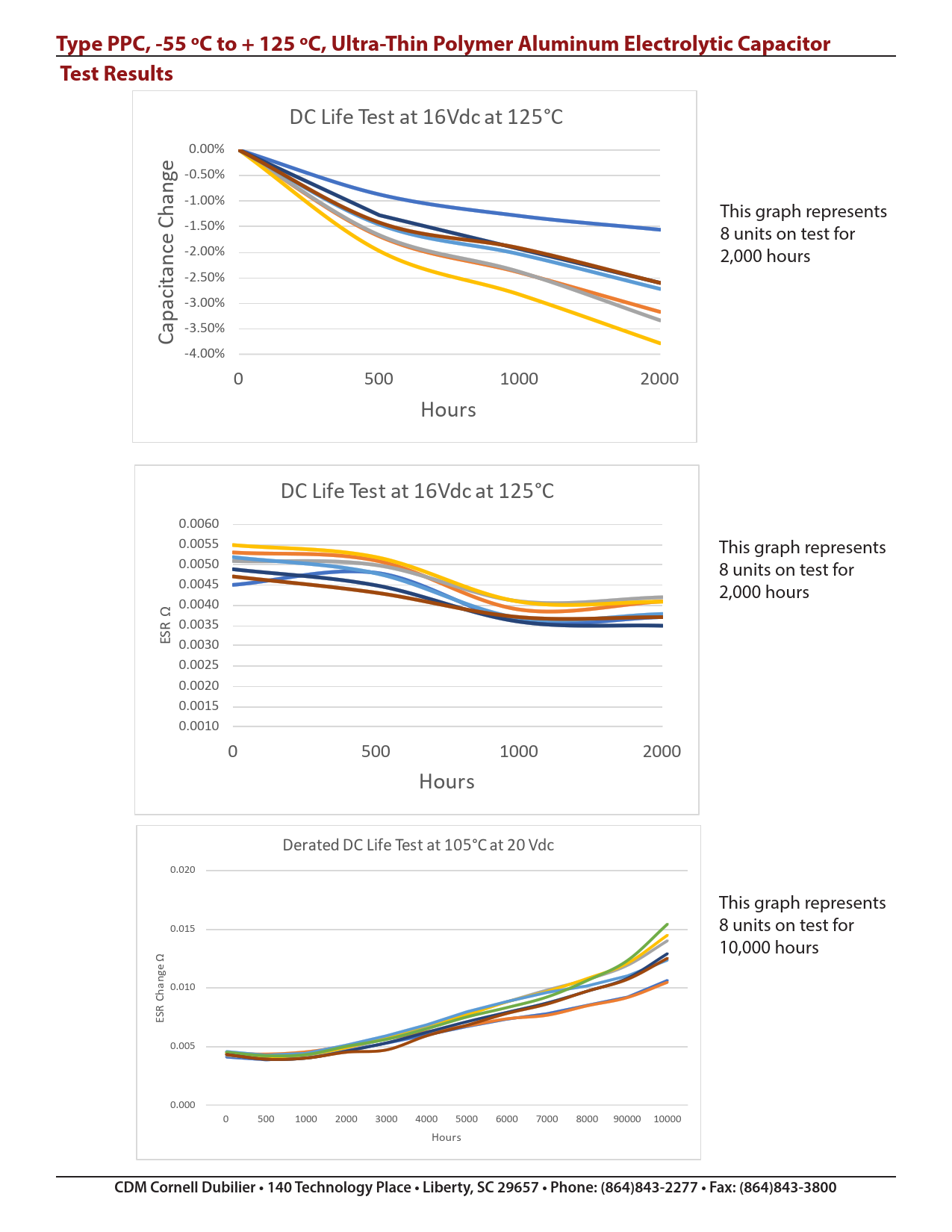

Type PPC, -55 ºC to + 125 ºC, Ultra-Thin Polymer Aluminum Electrolytic Capacitor Test Results
DC Life Test at 16Vdc at 125°C 0.00% ge -0.50% -1.00% This graph represents -1.50% ce Chan 8 units on test for -2.00% 2,000 hours -2.50% itan ac -3.00% -3.50% Cap -4.00% 0 500 1000 2000 Hours DC Life Test at 16Vdc at 125°C 0.0060 0.0055 This graph represents 0.0050 8 units on test for 0.0045 2,000 hours 0.0040 R Ω 0.0035 ES 0.0030 0.0025 0.0020 0.0015 0.0010 0 500 1000 2000 Hours Derated DC Life Test at 105°C at 20 Vdc 0.020 This graph represents 0.015 8 units on test for 10,000 hours e Ω ng 0.010 ha ESR C 0.005 0.000 0 500 1000 2000 3000 4000 5000 6000 7000 8000 90000 10000 Hours
