| Hersteller | Diodes |
| Beschreibung | Very-Low-Power 8-Output PCIe Clock Buffer with On-Chip Termination |
| Seiten / Seite | 21 / 2 — PI6CB33802. Pin Configuration. GND. Pin Description. Pin Number Pin Name. … |
| Dateiformat / Größe | PDF / 1.3 Mb |
| Dokumentensprache | Englisch |

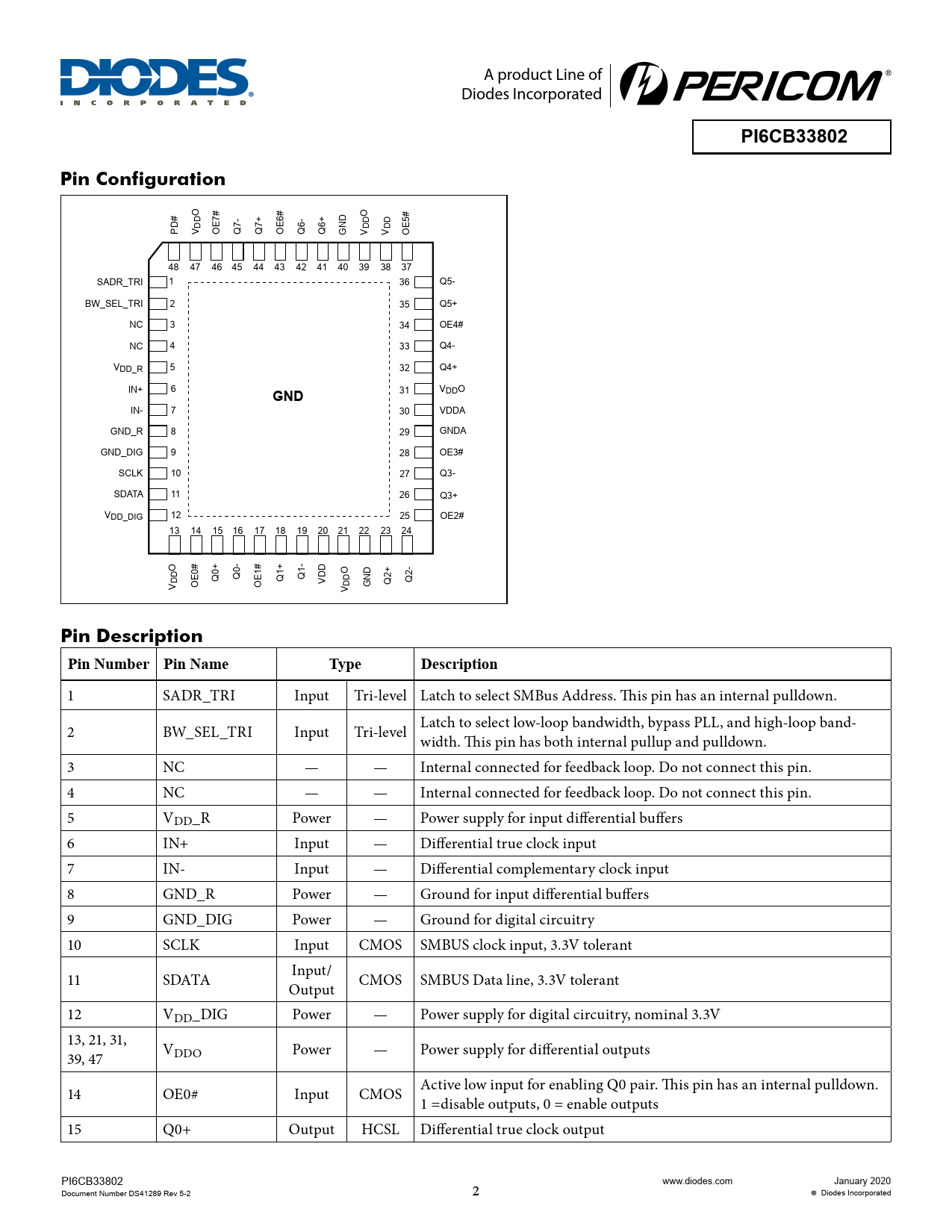

PI6CB33802. Pin Configuration. GND. Pin Description. Pin Number Pin Name. Type. Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments
A product Line of Diodes Incorporated
PI6CB33802 Pin Configuration
O O OE[7:0]# PD# V DD OE7# Q7- Q7+ OE6# Q6- Q6+ GND V DD V DD OE5# Q7 48 47 46 45 44 43 42 41 40 39 38 37 SADR_TRI 1 36 Q5- Q6 IN+ PLL BW_SEL_TRI IN- 2 35 Q5+ Q5 NC 3 34 OE4# NC 4 33 Q4- Q4 VDD_R 5 32 Q4+ SCLK IN+ 6 31 VDDO Q3 SDATA
GND
IN- 7 VDDA SADR_TRI 30 CTRL BW_SEL_TRI GND_R 8 LOGIC Q2 29 GNDA PD# GND_DIG 9 28 OE3# Q1 SCLK 10 27 Q3- SDATA 11 26 Q3+ Q0 VDD_DIG 12 25 OE2# 13 14 15 16 17 18 19 20 21 22 23 24 O O Q0+ Q0- Q1+ Q1- V DD OE0# VDD OE1# Q2+ V DD GND Q2-
Pin Description Pin Number Pin Name Type Description
1 SADR_TRI Input Tri-level Latch to select SMBus Address. This pin has an internal pulldown. 2 BW_SEL_TRI Input Tri-level Latch to select low-loop bandwidth, bypass PLL, and high-loop band- width. This pin has both internal pullup and pulldown. 3 NC — — Internal connected for feedback loop. Do not connect this pin. 4 NC — — Internal connected for feedback loop. Do not connect this pin. 5 VDD_R Power — Power supply for input differential buffers 6 IN+ Input — Differential true clock input 7 IN- Input — Differential complementary clock input 8 GND_R Power — Ground for input differential buffers 9 GND_DIG Power — Ground for digital circuitry 10 SCLK Input CMOS SMBUS clock input, 3.3V tolerant 11 SDATA Input/ Output CMOS SMBUS Data line, 3.3V tolerant 12 VDD_DIG Power — Power supply for digital circuitry, nominal 3.3V 13, 21, 31, 39, 47 VDDO Power — Power supply for differential outputs 14 OE0# Input CMOS Active low input for enabling Q0 pair. This pin has an internal pulldown. 1 =disable outputs, 0 = enable outputs 15 Q0+ Output HCSL Differential true clock output PI6CB33802 www.diodes.com January 2020 Document Number DS41289 Rev 5-2 2 Diodes Incorporated
PI6CB33802 Pin Configuration
O O OE[7:0]# PD# V DD OE7# Q7- Q7+ OE6# Q6- Q6+ GND V DD V DD OE5# Q7 48 47 46 45 44 43 42 41 40 39 38 37 SADR_TRI 1 36 Q5- Q6 IN+ PLL BW_SEL_TRI IN- 2 35 Q5+ Q5 NC 3 34 OE4# NC 4 33 Q4- Q4 VDD_R 5 32 Q4+ SCLK IN+ 6 31 VDDO Q3 SDATA
GND
IN- 7 VDDA SADR_TRI 30 CTRL BW_SEL_TRI GND_R 8 LOGIC Q2 29 GNDA PD# GND_DIG 9 28 OE3# Q1 SCLK 10 27 Q3- SDATA 11 26 Q3+ Q0 VDD_DIG 12 25 OE2# 13 14 15 16 17 18 19 20 21 22 23 24 O O Q0+ Q0- Q1+ Q1- V DD OE0# VDD OE1# Q2+ V DD GND Q2-
Pin Description Pin Number Pin Name Type Description
1 SADR_TRI Input Tri-level Latch to select SMBus Address. This pin has an internal pulldown. 2 BW_SEL_TRI Input Tri-level Latch to select low-loop bandwidth, bypass PLL, and high-loop band- width. This pin has both internal pullup and pulldown. 3 NC — — Internal connected for feedback loop. Do not connect this pin. 4 NC — — Internal connected for feedback loop. Do not connect this pin. 5 VDD_R Power — Power supply for input differential buffers 6 IN+ Input — Differential true clock input 7 IN- Input — Differential complementary clock input 8 GND_R Power — Ground for input differential buffers 9 GND_DIG Power — Ground for digital circuitry 10 SCLK Input CMOS SMBUS clock input, 3.3V tolerant 11 SDATA Input/ Output CMOS SMBUS Data line, 3.3V tolerant 12 VDD_DIG Power — Power supply for digital circuitry, nominal 3.3V 13, 21, 31, 39, 47 VDDO Power — Power supply for differential outputs 14 OE0# Input CMOS Active low input for enabling Q0 pair. This pin has an internal pulldown. 1 =disable outputs, 0 = enable outputs 15 Q0+ Output HCSL Differential true clock output PI6CB33802 www.diodes.com January 2020 Document Number DS41289 Rev 5-2 2 Diodes Incorporated
