A product Line of Diodes Incorporated

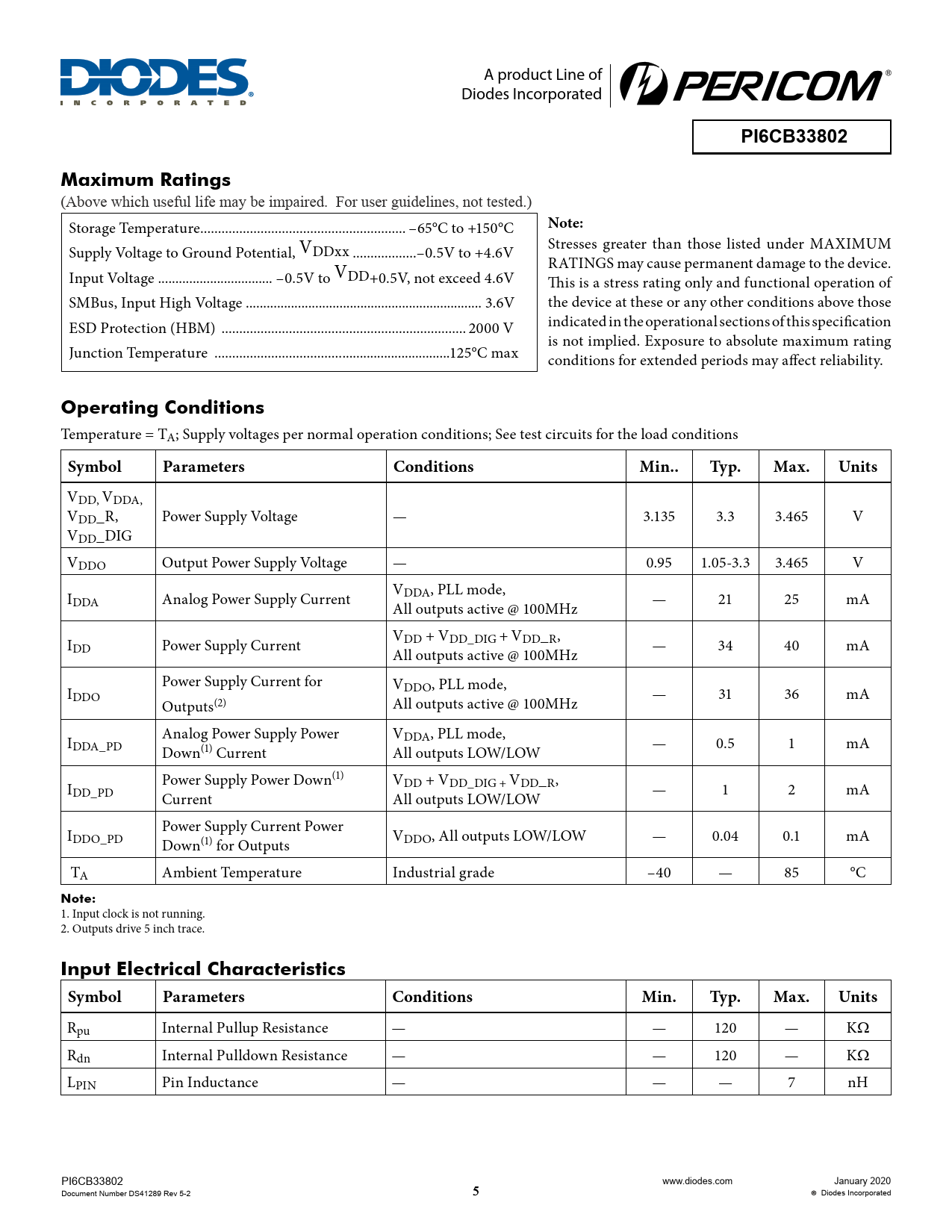

PI6CB33802 Maximum Ratings
(Above which useful life may be impaired. For user guidelines, not tested.) Storage Temperature .. –65°C to +150°C
Note:
Supply Voltage to Ground Potential, VDDxx ..–0.5V to +4.6V Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. Input Voltage ... –0.5V to VDD+0.5V, not exceed 4.6V This is a stress rating only and functional operation of SMBus, Input High Voltage .. 3.6V the device at these or any other conditions above those ESD Protection (HBM) ... 2000 V indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating Junction Temperature ...125°C max conditions for extended periods may affect reliability.
Operating Conditions
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions
Symbol Parameters Conditions Min.. Typ. Max. Units
VDD, VDDA, VDD_R, Power Supply Voltage — 3.135 3.3 3.465 V VDD_DIG VDDO Output Power Supply Voltage — 0.95 1.05-3.3 3.465 V IDDA Analog Power Supply Current VDDA, PLL mode, All outputs active @ 100MHz — 21 25 mA IDD Power Supply Current VDD + VDD_DIG + VDD_R, All outputs active @ 100MHz — 34 40 mA Power Supply Current for I VDDO, PLL mode, DDO Outputs(2) All outputs active @ 100MHz — 31 36 mA I Analog Power Supply Power VDDA, PLL mode, DDA_PD Down(1) Current All outputs LOW/LOW — 0.5 1 mA I Power Supply Power Down(1) VDD + VDD_DIG + VDD_R, DD_PD Current All outputs LOW/LOW — 1 2 mA I Power Supply Current Power DDO_PD Down(1) for Outputs VDDO, All outputs LOW/LOW — 0.04 0.1 mA TA Ambient Temperature Industrial grade –40 — 85 °C
Note:
1. Input clock is not running. 2. Outputs drive 5 inch trace.
Input Electrical Characteristics Symbol Parameters Conditions Min. Typ. Max. Units
Rpu Internal Pullup Resistance — — 120 — KW Rdn Internal Pulldown Resistance — — 120 — KW LPIN Pin Inductance — — — 7 nH PI6CB33802 www.diodes.com January 2020 Document Number DS41289 Rev 5-2 5 Diodes Incorporated
