Datasheet KW CULPM1.TG - OSLON Boost HX (OSRAM) - 5
| Hersteller | OSRAM |
| Beschreibung | OSLON Boost HX LED makes use of the high current capability of the latest chip generation in a thermal optimized package |
| Seiten / Seite | 25 / 5 — link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. … |
| Dateiformat / Größe | PDF / 1.4 Mb |
| Dokumentensprache | Englisch |
link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. page. 23. KW. CULPM1.TG. Brightness. Groups. Group. Luminous. Flux. 1). Luminous. Flux. 1). I. =. 6000. mA. I. =
Modelllinie für dieses Datenblatt
Textversion des Dokuments

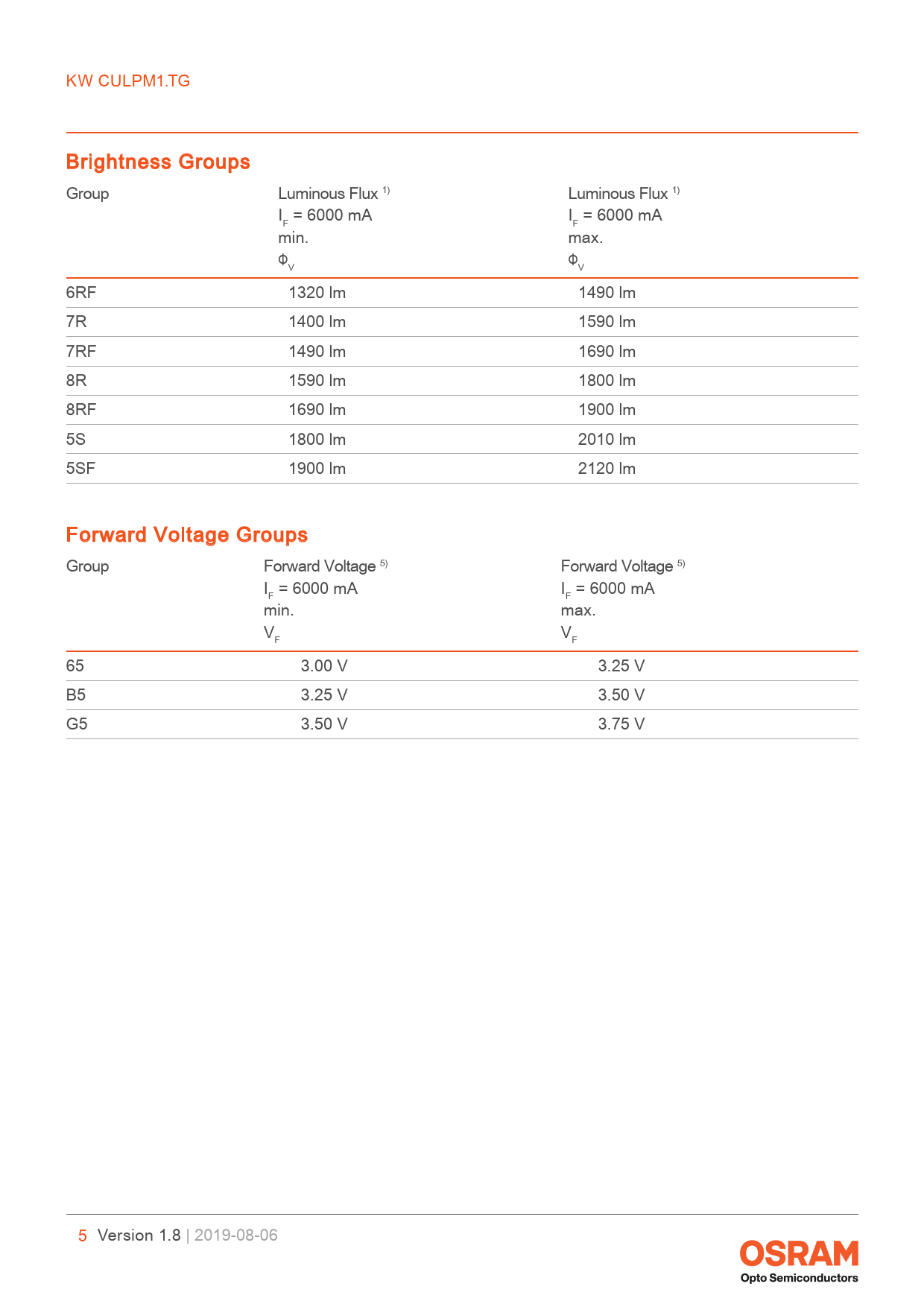

link to page 23 link to page 23 link to page 23 link to page 23 KW CULPM1.TG Brightness Groups Group Luminous Flux 1) Luminous Flux 1) I = 6000 mA I = 6000 mA F F min. max. Φ Φ V V 6RF 1320 lm 1490 lm 7R 1400 lm 1590 lm 7RF 1490 lm 1690 lm 8R 1590 lm 1800 lm 8RF 1690 lm 1900 lm 5S 1800 lm 2010 lm 5SF 1900 lm 2120 lm Forward Voltage Groups Group Forward Voltage 5) Forward Voltage 5) I = 6000 mA I = 6000 mA F F min. max. V V F F 65 3.00 V 3.25 V B5 3.25 V 3.50 V G5 3.50 V 3.75 V 5 Version 1.8 | 2019-08-06
