Datasheet KW CULPM1.TG - OSLON Boost HX (OSRAM) - 4
| Hersteller | OSRAM |
| Beschreibung | OSLON Boost HX LED makes use of the high current capability of the latest chip generation in a thermal optimized package |
| Seiten / Seite | 25 / 4 — link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. … |
| Dateiformat / Größe | PDF / 1.4 Mb |
| Dokumentensprache | Englisch |

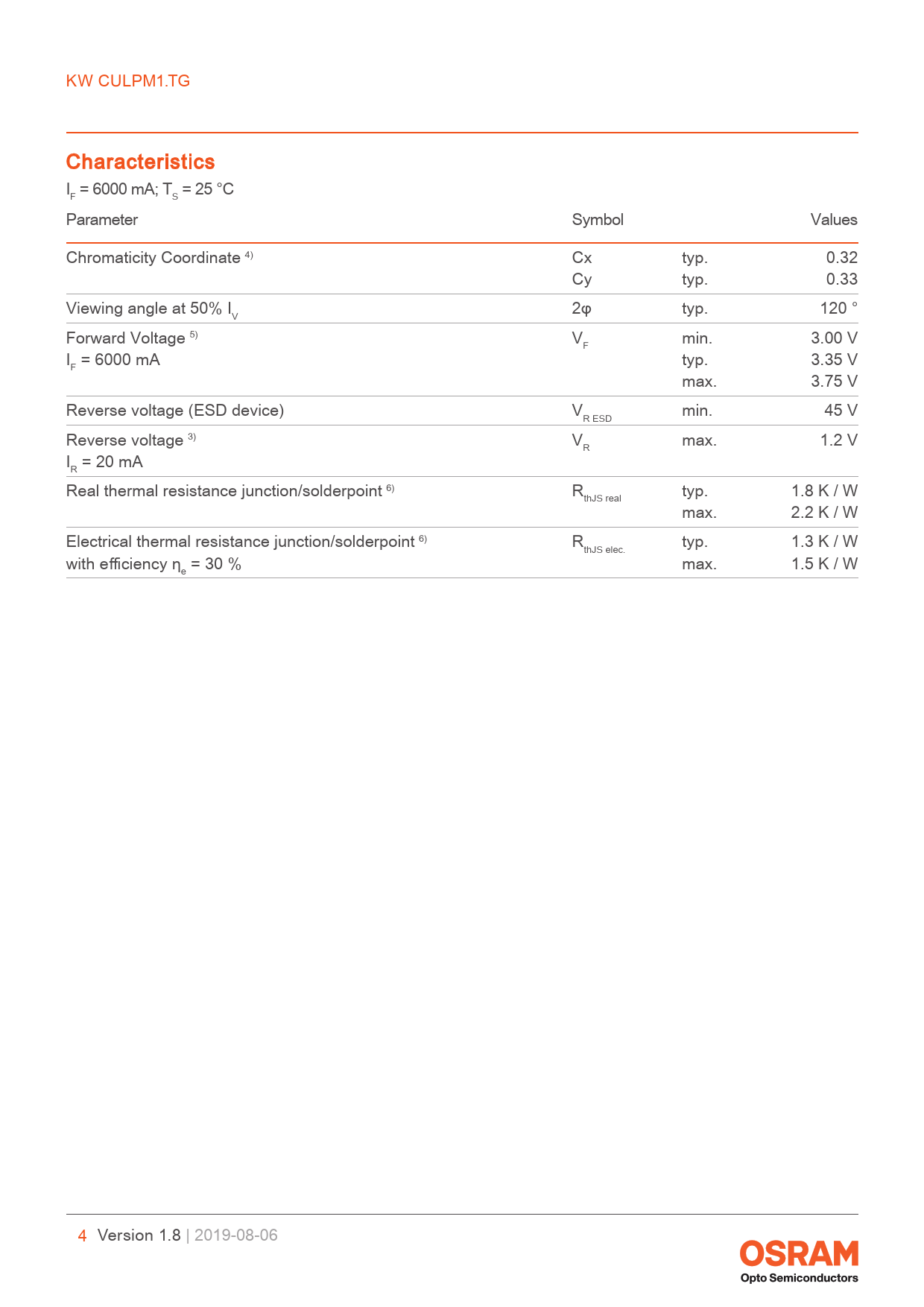

link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. page. 23. KW. CULPM1.TG. Characteristics. I. =. 6000. mA;. T. =. 25. °C. F. S. Parameter. Symbol
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 23 link to page 23 link to page 23 link to page 23 link to page 23 KW CULPM1.TG Characteristics I = 6000 mA; T = 25 °C F S Parameter Symbol Values Chromaticity Coordinate 4) Cx typ. 0.32 Cy typ. 0.33 Viewing angle at 50% I 2φ typ. 120 ° V Forward Voltage 5) V min. 3.00 V F I = 6000 mA typ. 3.35 V F max. 3.75 V Reverse voltage (ESD device) V min. 45 V R ESD Reverse voltage 3) V max. 1.2 V R I = 20 mA R Real thermal resistance junction/solderpoint 6) R typ. 1.8 K / W thJS real max. 2.2 K / W Electrical thermal resistance junction/solderpoint 6) R typ. 1.3 K / W thJS elec. with efficiency η = 30 % max. 1.5 K / W e 4 Version 1.8 | 2019-08-06
