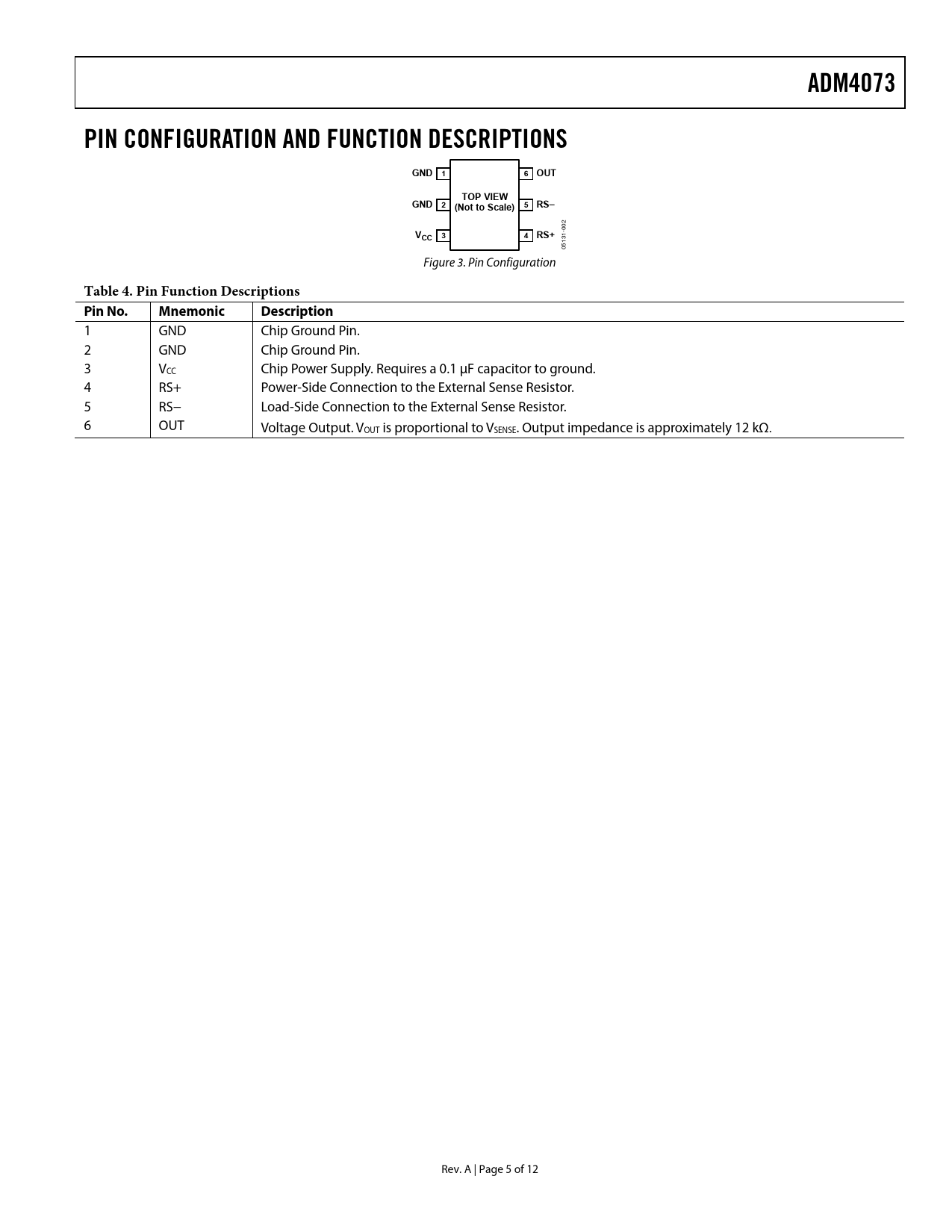

ADM4073. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. GND 1. 6 OUT. TOP VIEW. GND 2. 5 RS–. (Not to Scale). VCC 3. 4 RS+

ADM4073 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS GND 1 6 OUT TOP VIEW GND 2 5 RS– (Not to Scale) VCC 3 4 RS+

Modelllinie für dieses Datenblatt

Textversion des Dokuments

ADM4073 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS GND 1 6 OUT TOP VIEW GND 2 5 RS– (Not to Scale)
2 00
VCC 3 4 RS+
1- 13 05 Figure 3. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 GND Chip Ground Pin. 2 GND Chip Ground Pin. 3 VCC Chip Power Supply. Requires a 0.1 μF capacitor to ground. 4 RS+ Power-Side Connection to the External Sense Resistor. 5 RS− Load-Side Connection to the External Sense Resistor. 6 OUT Voltage Output. VOUT is proportional to VSENSE. Output impedance is approximately 12 kΩ. Rev. A | Page 5 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM APPLICATION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION RSENSE OUTPUT (OUT) OUTLINE DIMENSIONS ORDERING GUIDE
