Datasheet ADM4073 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | Low Cost, Voltage Output, High-side Current Sense Amplifier |
| Seiten / Seite | 12 / 4 — ADM4073. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. THERMAL … |
| Dateiformat / Größe | PDF / 285 Kb |
| Dokumentensprache | Englisch |

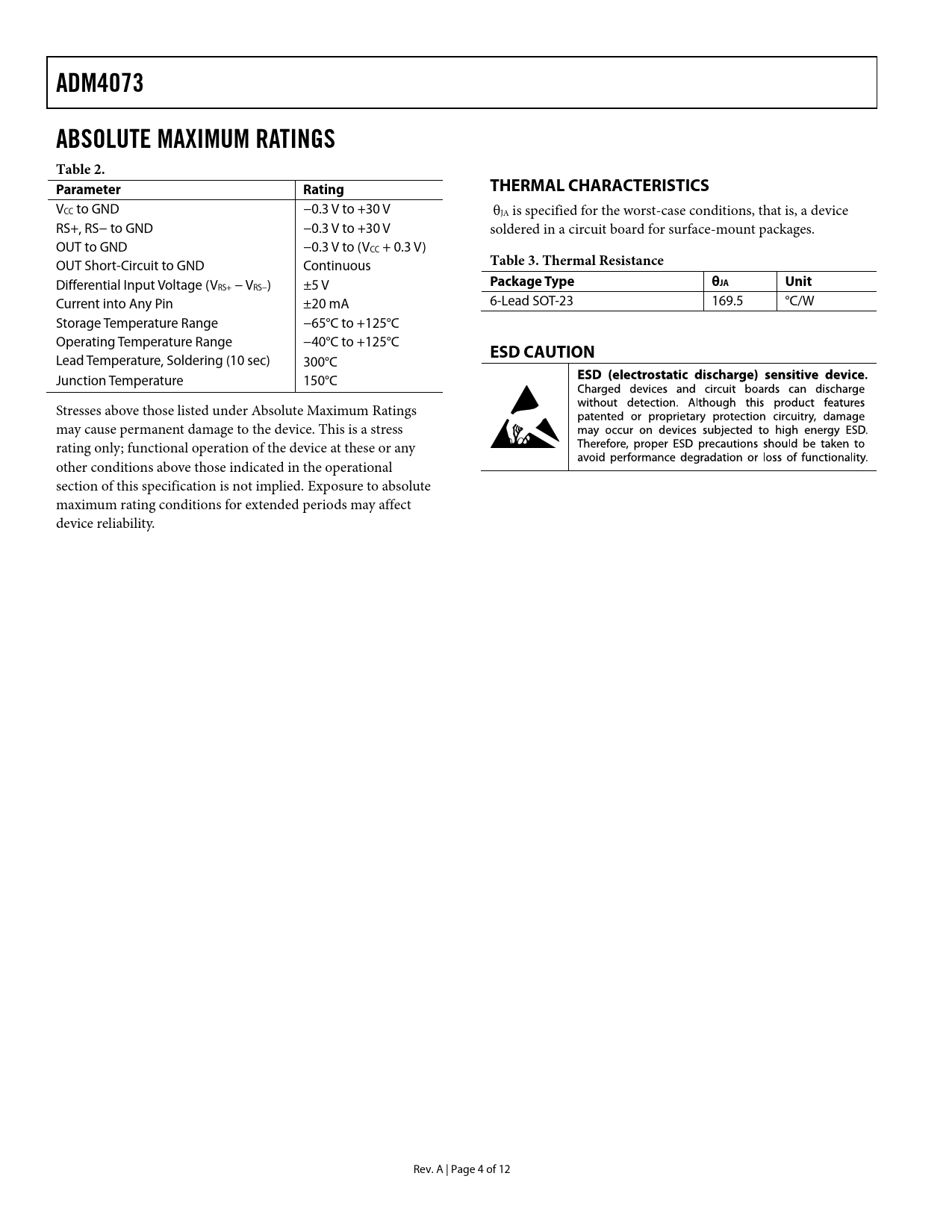

ADM4073. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. THERMAL CHARACTERISTICS. Table 3. Thermal Resistance. Package Type
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADM4073 ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating THERMAL CHARACTERISTICS
VCC to GND −0.3 V to +30 V θJA is specified for the worst-case conditions, that is, a device RS+, RS− to GND −0.3 V to +30 V soldered in a circuit board for surface-mount packages. OUT to GND −0.3 V to (VCC + 0.3 V) OUT Short-Circuit to GND Continuous
Table 3. Thermal Resistance
Differential Input Voltage (V
Package Type θ
RS+ − VRS−) ±5 V
JA Unit
Current into Any Pin ±20 mA 6-Lead SOT-23 169.5 °C/W Storage Temperature Range −65°C to +125°C Operating Temperature Range −40°C to +125°C
ESD CAUTION
Lead Temperature, Soldering (10 sec) 300°C Junction Temperature 150°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. A | Page 4 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM APPLICATION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION RSENSE OUTPUT (OUT) OUTLINE DIMENSIONS ORDERING GUIDE
