Datasheet AD8212 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | High Voltage Current Shunt Monitor |
| Seiten / Seite | 13 / 5 — Data Sheet. AD8212. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. V+ 1. 8 … |
| Revision | C |
| Dateiformat / Größe | PDF / 373 Kb |
| Dokumentensprache | Englisch |

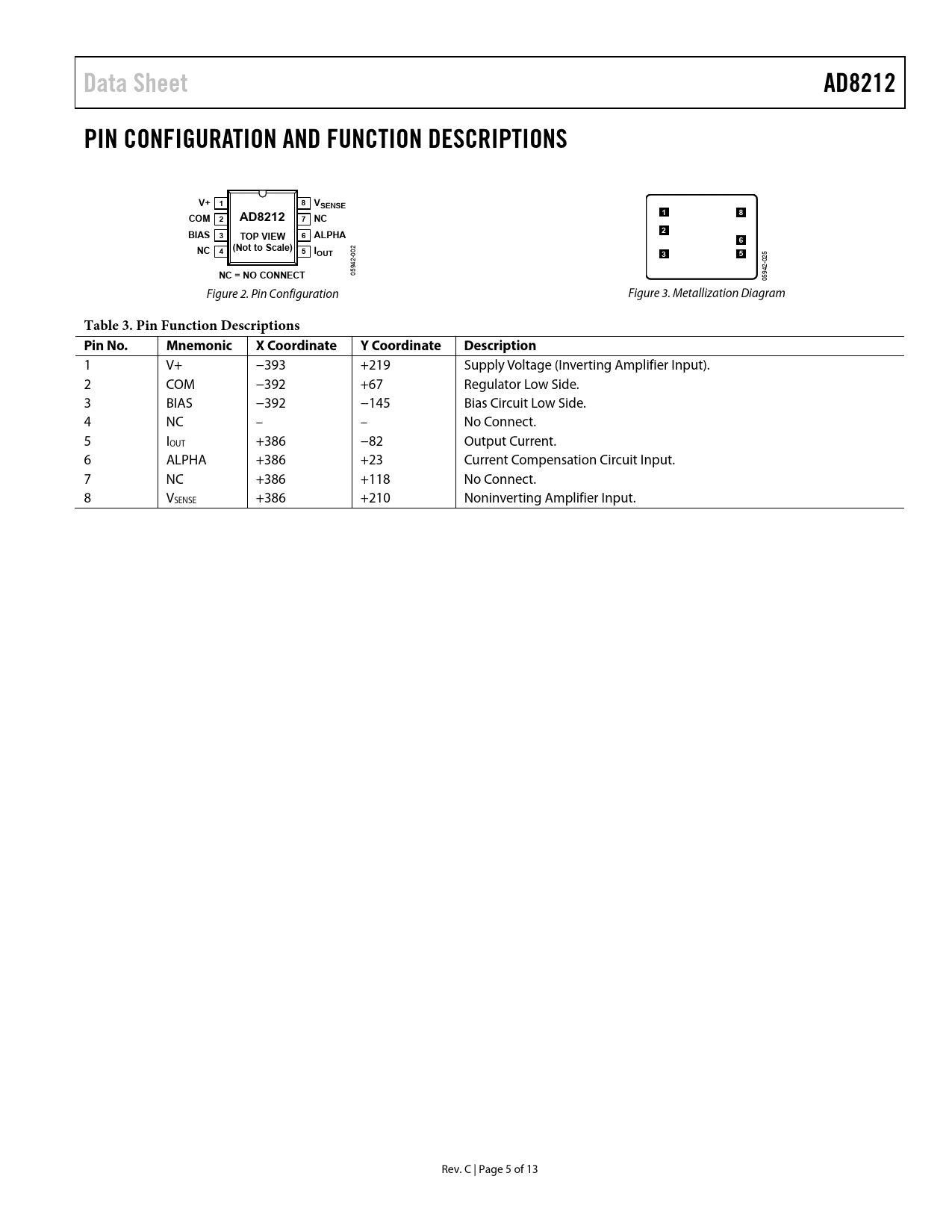

Data Sheet. AD8212. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. V+ 1. 8 VSENSE. COM 2. 7 NC. BIAS. TOP VIEW. 6 ALPHA
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet AD8212 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS V+ 1 8 VSENSE 1 8 COM 2 AD8212 7 NC BIAS 2 3 TOP VIEW 6 ALPHA 6
2
NC 4 (Not to Scale) 5 IOUT 3 5
2-00 025 94 2- 05
NC = NO CONNECT
94 05 Figure 2. Pin Configuration Figure 3. Metallization Diagram
Table 3. Pin Function Descriptions Pin No. Mnemonic X Coordinate Y Coordinate Description
1 V+ −393 +219 Supply Voltage (Inverting Amplifier Input). 2 COM −392 +67 Regulator Low Side. 3 BIAS −392 −145 Bias Circuit Low Side. 4 NC – – No Connect. 5 IOUT +386 −82 Output Current. 6 ALPHA +386 +23 Current Compensation Circuit Input. 7 NC +386 +118 No Connect. 8 VSENSE +386 +210 Noninverting Amplifier Input. Rev. C | Page 5 of 13 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION NORMAL OPERATION (7 V TO 65 V SUPPLY (V+) RANGE) HIGH VOLTAGE OPERATION USING AN EXTERNAL PNP TRANSISTOR OUTPUT CURRENT COMPENSATION CIRCUIT APPLICATIONS INFORMATION GENERAL HIGH-SIDE CURRENT SENSING MOTOR CONTROL 500 V CURRENT MONITOR BIDIRECTIONAL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE
