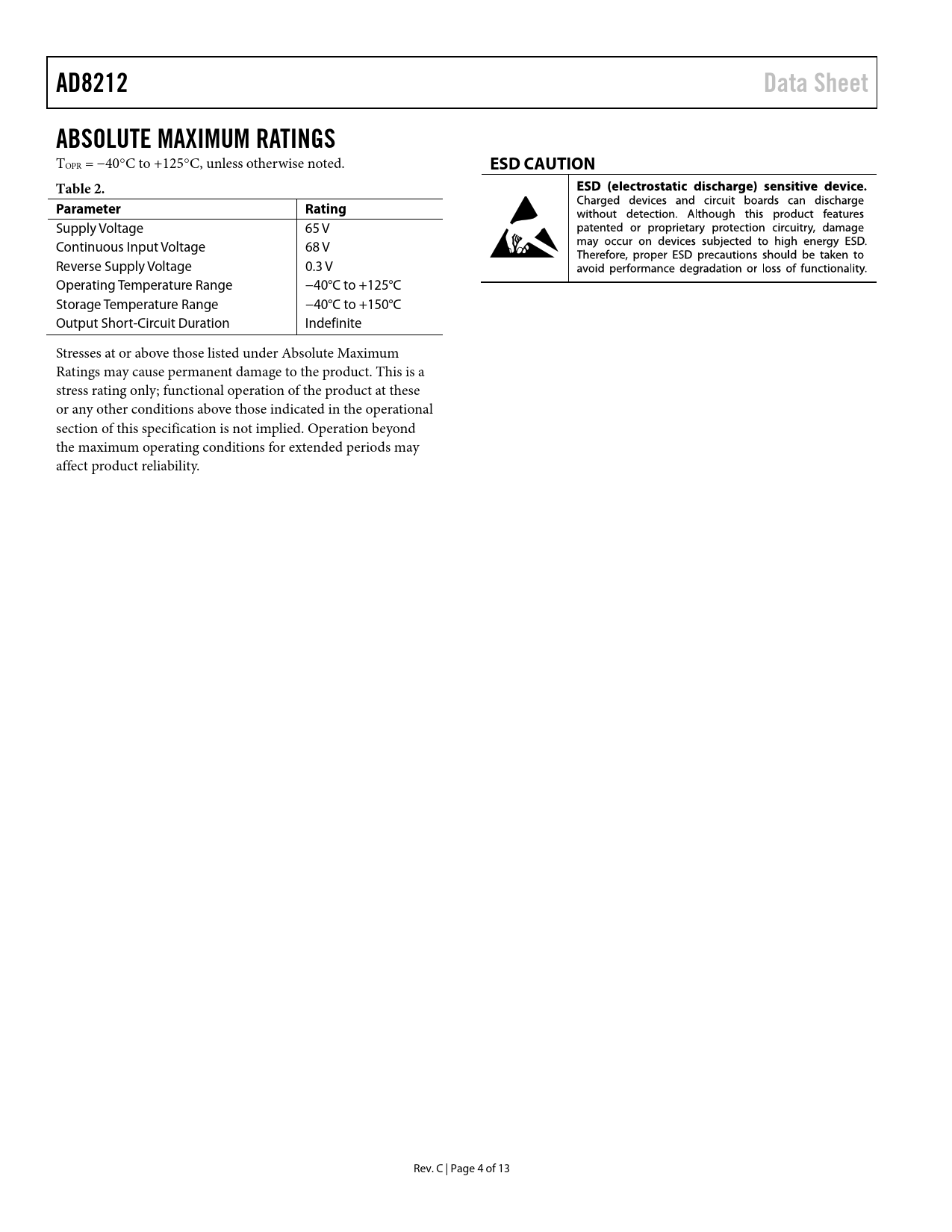

AD8212 Data Sheet ABSOLUTE MAXIMUM RATINGS
TOPR = −40°C to +125°C, unless otherwise noted.
ESD CAUTION Table 2. Parameter Rating
Supply Voltage 65 V Continuous Input Voltage 68 V Reverse Supply Voltage 0.3 V Operating Temperature Range −40°C to +125°C Storage Temperature Range −40°C to +150°C Output Short-Circuit Duration Indefinite Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. C | Page 4 of 13 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION NORMAL OPERATION (7 V TO 65 V SUPPLY (V+) RANGE) HIGH VOLTAGE OPERATION USING AN EXTERNAL PNP TRANSISTOR OUTPUT CURRENT COMPENSATION CIRCUIT APPLICATIONS INFORMATION GENERAL HIGH-SIDE CURRENT SENSING MOTOR CONTROL 500 V CURRENT MONITOR BIDIRECTIONAL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE
