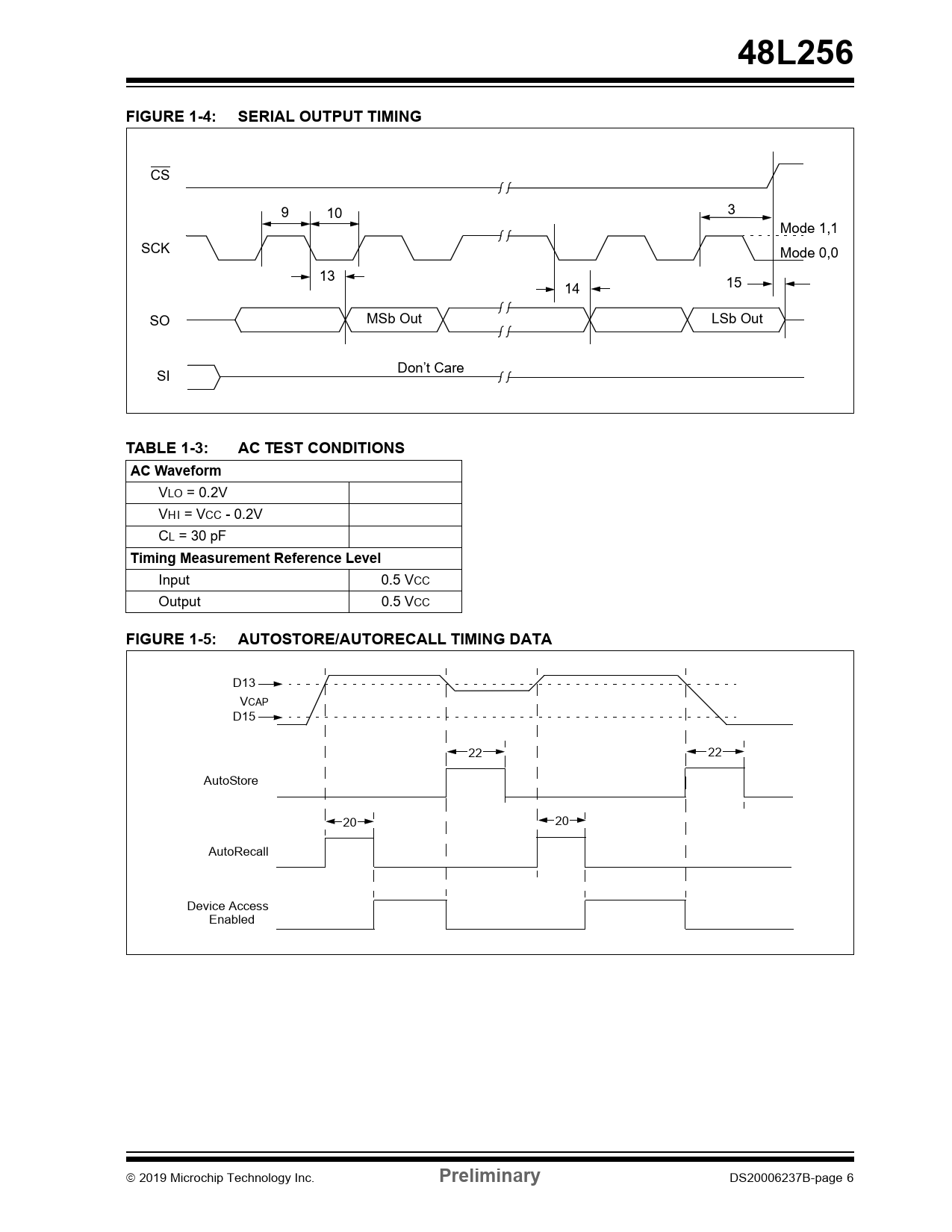

48L256 FIGURE 1-4: SERIAL OUTPUT TIMING
CS 9 10 3 Mode 1,1 SCK Mode 0,0 13 15 14 SO MSb Out LSb Out Don’t Care SI
TABLE 1-3: AC TEST CONDITIONS AC Waveform
VLO = 0.2V VHI = VCC - 0.2V CL = 30 pF
Timing Measurement Reference Level
Input 0.5 VCC Output 0.5 VCC
FIGURE 1-5: AUTOSTORE/AUTORECALL TIMING DATA
D13 VCAP D15 22 22 AutoStore 20 20 AutoRecall Device Access Enabled  2019 Microchip Technology Inc.
Preliminary
