Datasheet TSOP22, TSOP24, TSOP48, TSOP44 (Vishay) - 2
| Hersteller | Vishay |
| Beschreibung | IR Receiver Modules for Remote Control Systems |
| Seiten / Seite | 7 / 2 — TSOP22.., TSOP24.., TSOP48.., TSOP44.. BLOCK DIAGRAM. APPLICATION … |
| Dateiformat / Größe | PDF / 179 Kb |
| Dokumentensprache | Englisch |
TSOP22.., TSOP24.., TSOP48.., TSOP44.. BLOCK DIAGRAM. APPLICATION CIRCUIT. ABSOLUTE MAXIMUM RATINGS PARAMETER. TEST CONDITION
Modelllinie für dieses Datenblatt
- TSOP2230 TSOP2233 TSOP2233UH1 TSOP2233VI1 TSOP2236 TSOP2236AY1 TSOP2236LL1 TSOP2236QJ1 TSOP2236SJ1 TSOP2236SP1 TSOP2236UH1 TSOP2236VI1 TSOP2236YA1 TSOP2238 TSOP2238AY1 TSOP2238CZ1 TSOP2238PM1 TSOP2238QJ1 TSOP2238SB1 TSOP2238SS1BS12Z TSOP2238VI1 TSOP2238WE1 TSOP2238YA1 TSOP2240 TSOP2240RF1 TSOP2256 TSOP2256IV1 TSOP2256SB1
- TSOP4430 TSOP4433 TSOP4436 TSOP4436VI1 TSOP4438 TSOP4438CZ1 TSOP4438DB1F TSOP4438DK1F TSOP4438DN1F TSOP4438QJ1 TSOP4438RF1 TSOP4438SJ1 TSOP4438SO1 TSOP4438SS1BS12Z TSOP4438SS1F TSOP4438ST1 TSOP4438UH1 TSOP4438VI1F TSOP4438XG1F TSOP4438YA1 TSOP4438ZC1 TSOP4440 TSOP4456
- TSOP4830 TSOP4830SS1F TSOP4833 TSOP4833SS1BS12Z TSOP4836 TSOP4836LL1 TSOP4836SB1 TSOP4836SI1 TSOP4836SS1F TSOP4836ST1 TSOP4836YA1 TSOP4836ZC1 TSOP4838 TSOP4838AY1 TSOP4838CZ1 TSOP4838LL1 TSOP4838QJ1 TSOP4838RF1 TSOP4838SB1 TSOP4838SJ1 TSOP4838SO1 TSOP4838SS1BS12Z TSOP4838SS1F TSOP4838ST1 TSOP4838UH1 TSOP4838VI1 TSOP4838YA1 TSOP4840 TSOP4840SB1 TSOP4840SJ1 TSOP4856 TSOP4856SS1F TSOP4856SS1N
Textversion des Dokuments
TSOP22.., TSOP24.., TSOP48.., TSOP44..
www.vishay.com Vishay Semiconductors
BLOCK DIAGRAM APPLICATION CIRCUIT

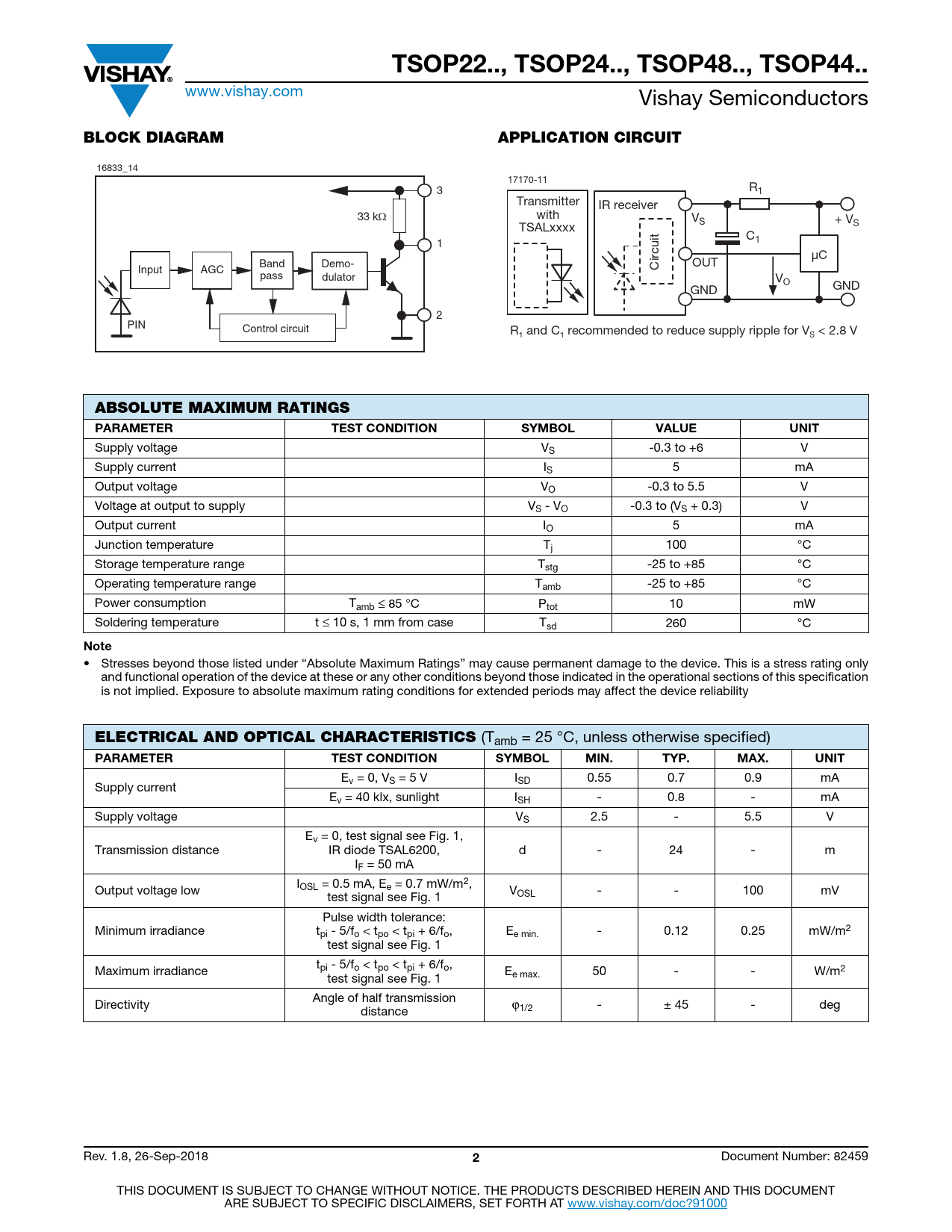

16833_14 17170-11 3 R1 Transmitter IR receiver 33 kΩ with VS + VS TSALxxxx C 1 1 μC Band Demo- OUT Input AGC Circuit pass dulator VO GND GND 2 PIN Control circuit R and C recommended to reduce supply ripple for V < 2.8 V 1 1 S
ABSOLUTE MAXIMUM RATINGS PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Supply voltage VS -0.3 to +6 V Supply current IS 5 mA Output voltage VO -0.3 to 5.5 V Voltage at output to supply VS - VO -0.3 to (VS + 0.3) V Output current IO 5 mA Junction temperature Tj 100 °C Storage temperature range Tstg -25 to +85 °C Operating temperature range Tamb -25 to +85 °C Power consumption Tamb ≤ 85 °C Ptot 10 mW Soldering temperature t ≤ 10 s, 1 mm from case Tsd 260 °C
Note
• Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability
ELECTRICAL AND OPTICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Ev = 0, VS = 5 V ISD 0.55 0.7 0.9 mA Supply current Ev = 40 klx, sunlight ISH - 0.8 - mA Supply voltage VS 2.5 - 5.5 V Ev = 0, test signal see Fig. 1, Transmission distance IR diode TSAL6200, d - 24 - m IF = 50 mA I Output voltage low OSL = 0.5 mA, Ee = 0.7 mW/m2, V test signal see Fig. 1 OSL - - 100 mV Pulse width tolerance: Minimum irradiance tpi - 5/fo < tpo < tpi + 6/fo, Ee min. - 0.12 0.25 mW/m2 test signal see Fig. 1 t Maximum irradiance pi - 5/fo < tpo < tpi + 6/fo, E test signal see Fig. 1 e max. 50 - - W/m2 Angle of half transmission Directivity ϕ 45 - deg distance 1/2 - ± Rev. 1.8, 26-Sep-2018
2
Document Number: 82459 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
