Datasheet TSOP22, TSOP24, TSOP48, TSOP44 (Vishay)
| Hersteller | Vishay |
| Beschreibung | IR Receiver Modules for Remote Control Systems |
| Seiten / Seite | 7 / 1 — TSOP22.., TSOP24.., TSOP48.., TSOP44.. IR Receiver Modules for Remote … |
| Dateiformat / Größe | PDF / 179 Kb |
| Dokumentensprache | Englisch |
TSOP22.., TSOP24.., TSOP48.., TSOP44.. IR Receiver Modules for Remote Control Systems. FEATURES. DESIGN SUPPORT TOOLS
Modelllinie für dieses Datenblatt
- TSOP2230 TSOP2233 TSOP2233UH1 TSOP2233VI1 TSOP2236 TSOP2236AY1 TSOP2236LL1 TSOP2236QJ1 TSOP2236SJ1 TSOP2236SP1 TSOP2236UH1 TSOP2236VI1 TSOP2236YA1 TSOP2238 TSOP2238AY1 TSOP2238CZ1 TSOP2238PM1 TSOP2238QJ1 TSOP2238SB1 TSOP2238SS1BS12Z TSOP2238VI1 TSOP2238WE1 TSOP2238YA1 TSOP2240 TSOP2240RF1 TSOP2256 TSOP2256IV1 TSOP2256SB1
- TSOP4430 TSOP4433 TSOP4436 TSOP4436VI1 TSOP4438 TSOP4438CZ1 TSOP4438DB1F TSOP4438DK1F TSOP4438DN1F TSOP4438QJ1 TSOP4438RF1 TSOP4438SJ1 TSOP4438SO1 TSOP4438SS1BS12Z TSOP4438SS1F TSOP4438ST1 TSOP4438UH1 TSOP4438VI1F TSOP4438XG1F TSOP4438YA1 TSOP4438ZC1 TSOP4440 TSOP4456
- TSOP4830 TSOP4830SS1F TSOP4833 TSOP4833SS1BS12Z TSOP4836 TSOP4836LL1 TSOP4836SB1 TSOP4836SI1 TSOP4836SS1F TSOP4836ST1 TSOP4836YA1 TSOP4836ZC1 TSOP4838 TSOP4838AY1 TSOP4838CZ1 TSOP4838LL1 TSOP4838QJ1 TSOP4838RF1 TSOP4838SB1 TSOP4838SJ1 TSOP4838SO1 TSOP4838SS1BS12Z TSOP4838SS1F TSOP4838ST1 TSOP4838UH1 TSOP4838VI1 TSOP4838YA1 TSOP4840 TSOP4840SB1 TSOP4840SJ1 TSOP4856 TSOP4856SS1F TSOP4856SS1N
Textversion des Dokuments

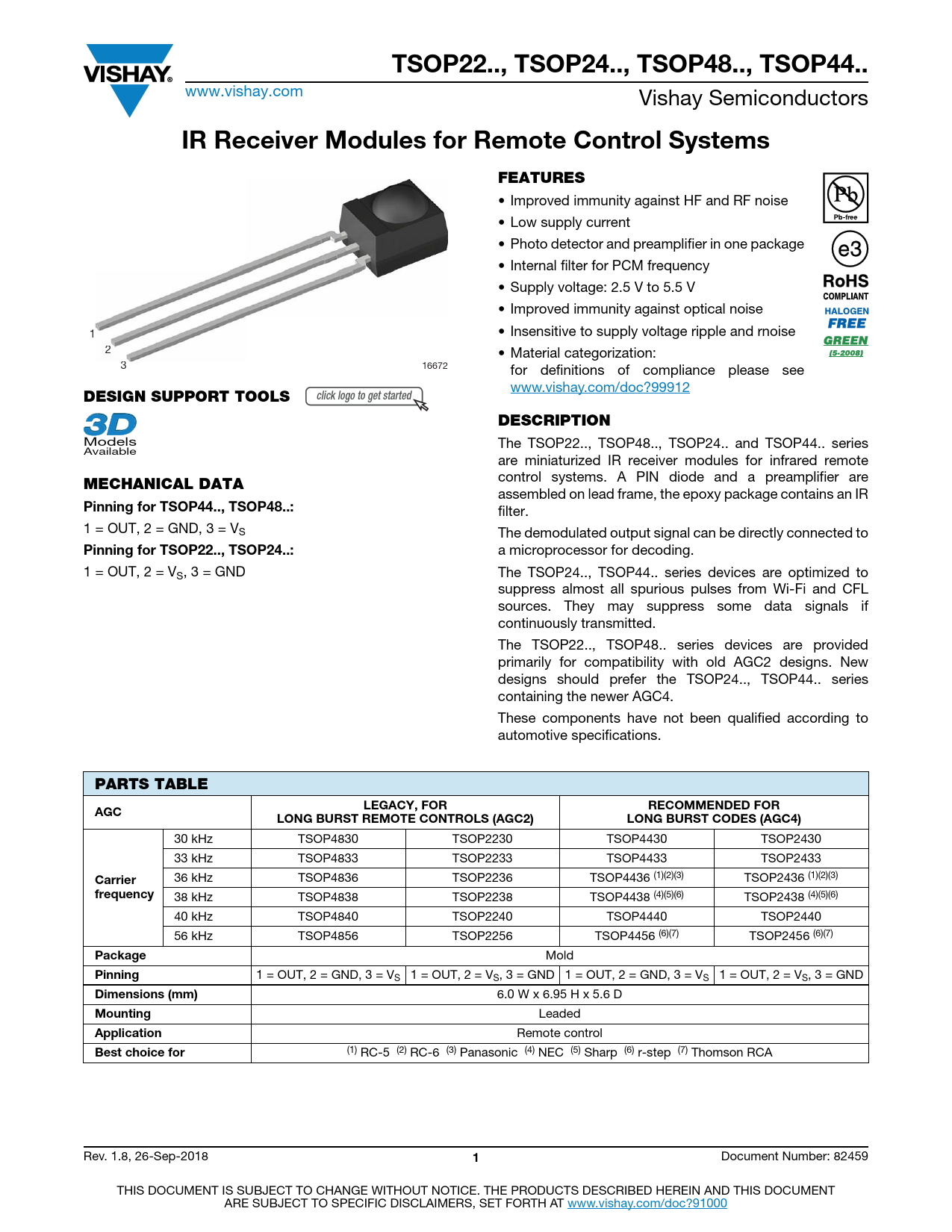

TSOP22.., TSOP24.., TSOP48.., TSOP44..
www.vishay.com Vishay Semiconductors
IR Receiver Modules for Remote Control Systems FEATURES
• Improved immunity against HF and RF noise • Low supply current • Photo detector and preamplifier in one package • Internal filter for PCM frequency • Supply voltage: 2.5 V to 5.5 V • Improved immunity against optical noise 1 • Insensitive to supply voltage ripple and rnoise 2 • Material categorization: 3 16672 for definitions of compliance please see
DESIGN SUPPORT TOOLS
www.vishay.com/doc?99912 click logo to get started
DESCRIPTION
Models The TSOP22.., TSOP48.., TSOP24.. and TSOP44.. series Available are miniaturized IR receiver modules for infrared remote
MECHANICAL DATA
control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR
Pinning for TSOP44.., TSOP48..:
filter. 1 = OUT, 2 = GND, 3 = VS The demodulated output signal can be directly connected to
Pinning for TSOP22.., TSOP24..:
a microprocessor for decoding. 1 = OUT, 2 = VS, 3 = GND The TSOP24.., TSOP44.. series devices are optimized to suppress almost all spurious pulses from Wi-Fi and CFL sources. They may suppress some data signals if continuously transmitted. The TSOP22.., TSOP48.. series devices are provided primarily for compatibility with old AGC2 designs. New designs should prefer the TSOP24.., TSOP44.. series containing the newer AGC4. These components have not been qualified according to automotive specifications.
PARTS TABLE LEGACY, FOR RECOMMENDED FOR AGC LONG BURST REMOTE CONTROLS (AGC2) LONG BURST CODES (AGC4)
30 kHz TSOP4830 TSOP2230 TSOP4430 TSOP2430 33 kHz TSOP4833 TSOP2233 TSOP4433 TSOP2433
Carrier
36 kHz TSOP4836 TSOP2236 TSOP4436 (1)(2)(3) TSOP2436 (1)(2)(3)
frequency
38 kHz TSOP4838 TSOP2238 TSOP4438 (4)(5)(6) TSOP2438 (4)(5)(6) 40 kHz TSOP4840 TSOP2240 TSOP4440 TSOP2440 56 kHz TSOP4856 TSOP2256 TSOP4456 (6)(7) TSOP2456 (6)(7)
Package
Mold
Pinning
1 = OUT, 2 = GND, 3 = VS 1 = OUT, 2 = VS, 3 = GND 1 = OUT, 2 = GND, 3 = VS 1 = OUT, 2 = VS, 3 = GND
Dimensions (mm)
6.0 W x 6.95 H x 5.6 D
Mounting
Leaded
Application
Remote control
Best choice for
(1) RC-5 (2) RC-6 (3) Panasonic (4) NEC (5) Sharp (6) r-step (7) Thomson RCA Rev. 1.8, 26-Sep-2018
1
Document Number: 82459 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
