PolySwitch® Resettable PPTCs
Telecom > Surface Mount > TS Series

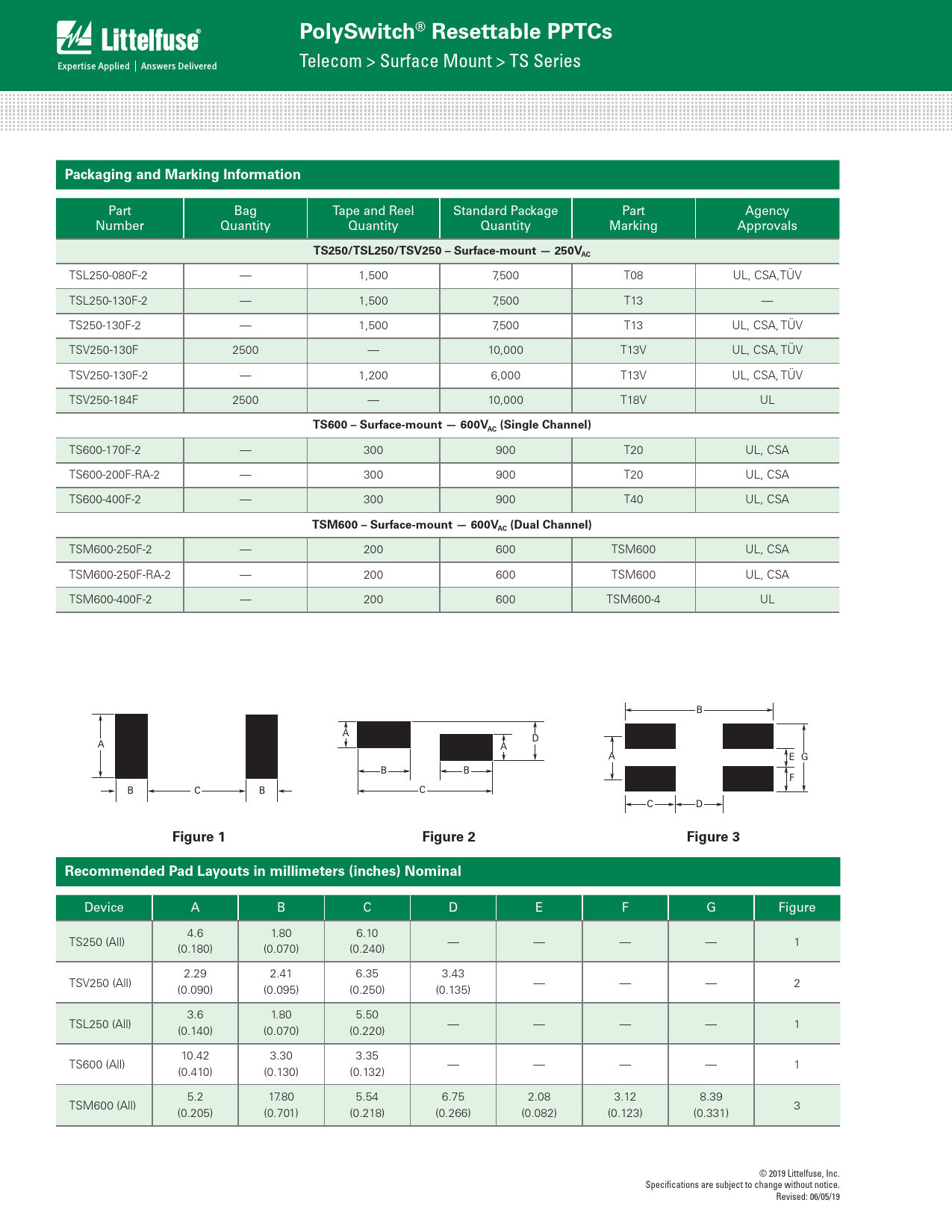

Packaging and Marking Information
Part Bag Tape and Reel Standard Package Part Agency Number Quantity Quantity Quantity Marking Approvals
TS250/TSL250/TSV250 – Surface-mount — 250VAC
TSL250-080F-2 — 1,500 7,500 T08 UL, CSA,TÜV TSL250-130F-2 — 1,500 7,500 T13 — TS250-130F-2 — 1,500 7,500 T13 UL, CSA, TÜV TSV250-130F 2500 — 10,000 T13V UL, CSA, TÜV TSV250-130F-2 — 1,200 6,000 T13V UL, CSA, TÜV TSV250-184F 2500 — 10,000 T18V UL
TS600 – Surface-mount — 600VAC (Single Channel)
TS600-170F-2 — 300 900 T20 UL, CSA TS600-200F-RA-2 — 300 900 T20 UL, CSA TS600-400F-2 — 300 900 T40 UL, CSA
TSM600 – Surface-mount — 600VAC (Dual Channel)
TSM600-250F-2 — 200 600 TSM600 UL, CSA TSM600-250F-RA-2 — 200 600 TSM600 UL, CSA TSM600-400F-2 — 200 600 TSM600-4 UL B A D A A A E G B B F B C B C C D
Figure 1 Figure 2 Figure 3 Recommended Pad Layouts in millimeters (inches) Nominal
Device A B C D E F G Figure 4.6 1.80 6.10 TS250 (All) — — — — 1 (0.180) (0.070) (0.240) 2.29 2.41 6.35 3.43 TSV250 (All) — — — 2 (0.090) (0.095) (0.250) (0.135) 3.6 1.80 5.50 TSL250 (All) — — — — 1 (0.140) (0.070) (0.220) 10.42 3.30 3.35 TS600 (All) — — — — 1 (0.410) (0.130) (0.132) 5.2 17.80 5.54 6.75 2.08 3.12 8.39 TSM600 (All) 3 (0.205) (0.701) (0.218) (0.266) (0.082) (0.123) (0.331) © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/05/19
